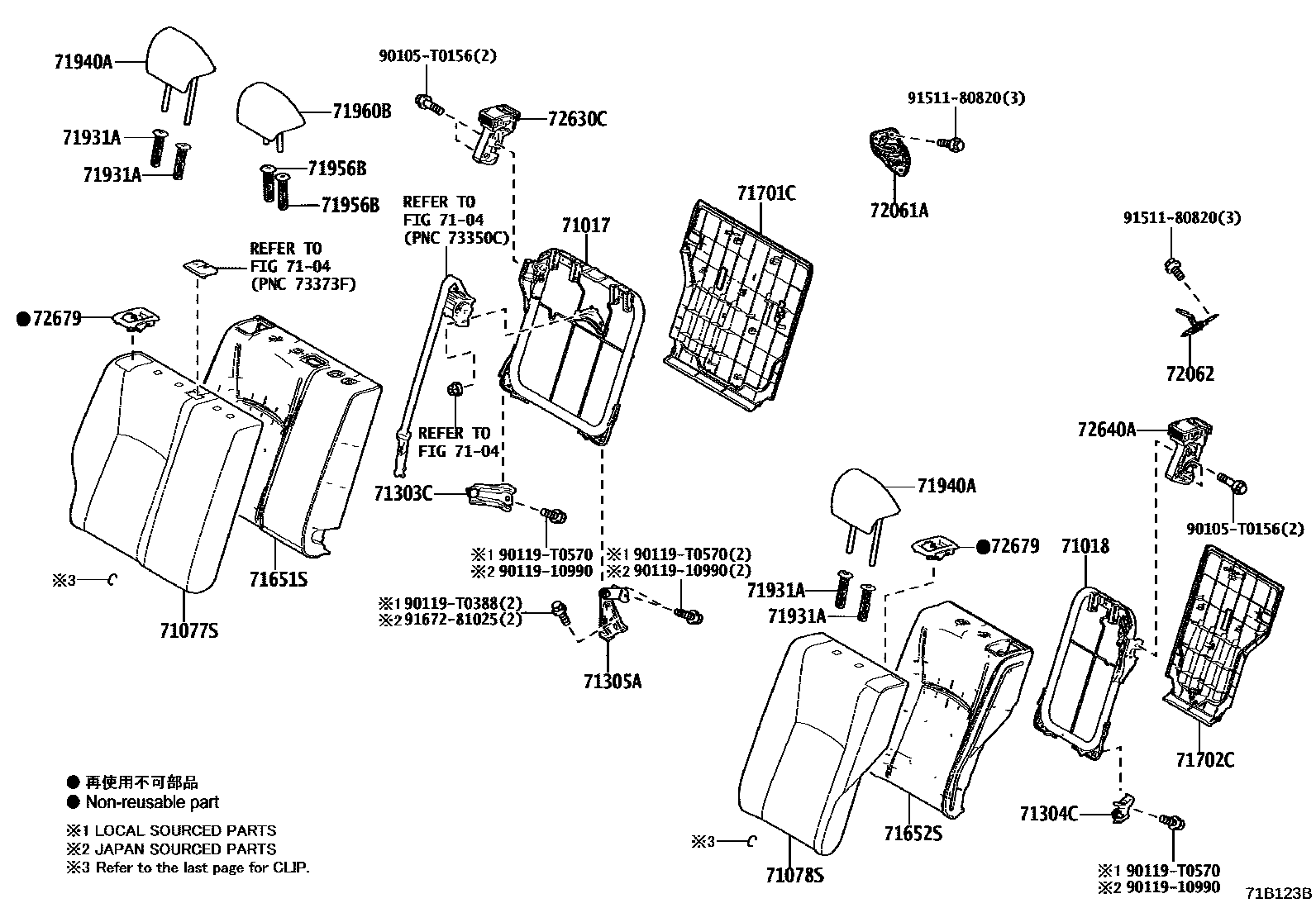

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
71018FRAME SUB-ASSY, REAR SEATBACK, LH
7104
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
GRAY,TRIM2#
BLACK,TRIM2#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
GRAY,TRIM2#
BLACK,TRIM2#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71701CBOARD SUB-ASSY, REAR SEATBACK, RH
71702CBOARD SUB-ASSY, REAR SEATBACK, LH
71931ASUPPORT, REAR SEAT HEADREST
W(LOCK),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM2#
71940AHEADREST ASSY, REAR SEAT
BLACK,TRIM2#
71956BSUPPORT, REAR SEAT HEADREST
W(LOCK),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM2#
71960BHEADREST ASSY, REAR SEAT, CENTER
BLACK,TRIM2#
72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH
72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH
72630CLOCK ASSY, REAR SEATBACK, RH
72640ALOCK ASSY, REAR SEATBACK, LH
72679BEZEL, REAR SEATBACK LOCK CONTROL
BLACK,TRIM2#
90105T0156
main90105-T0156
9011910990
main90119-10990
90119T0388
main90119-T0388
90119T0570
main90119-T0570
9151180820
main91511-80820
9167281025
main91672-81025
27 parts on this diagram · 3 diagrams in section
