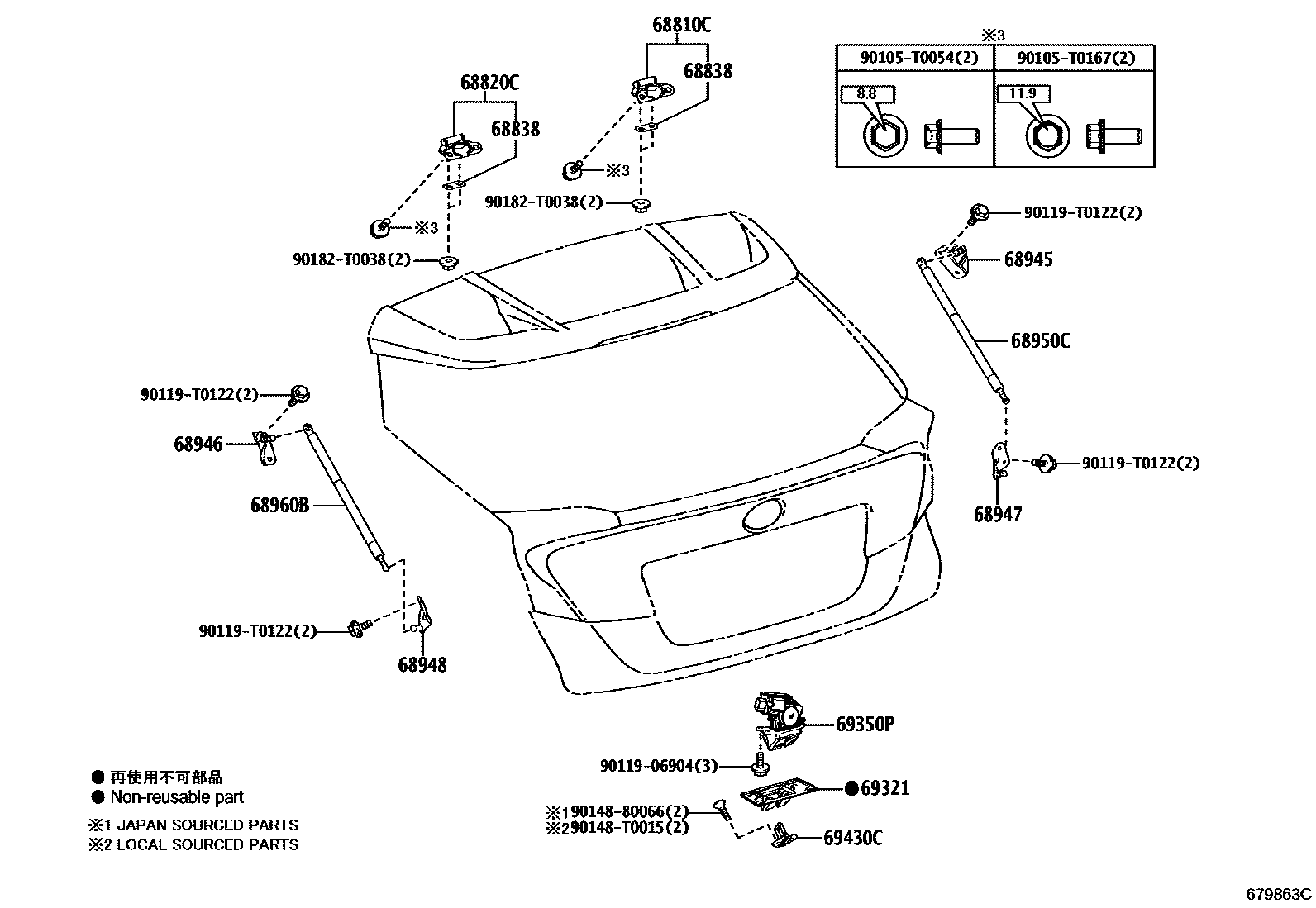

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-F4050iZGX11..TH201802-202105

68820CHINGE ASSY, BACK DOOR, LH

main68810-F4050iZGX11..TH201802-202105

68838PAD, BACK DOOR HINGE, NO.1

main68838-F4050iZGX11..TH201802-202105

T=1.5

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-F4020iZGX11..TH201802-202105

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-F4020iZGX11..TH201802-202105

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-F4020iZGX11..TH201802-202105

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-F4020iZGX11..TH201802-202105

68950CSTAY ASSY, BACK DOOR, RH

main68950-0WB80iZGX11..TH201802-201809

EXCEPT THAI OR BRUNEI SPEC

sub68950-F4160

main68950-0WD50iZYX10201802-201809

sub68950-F4150

main68950-F4070iZGX11201802-201809

sub68950-F4071

main68950-F4071iZGX11..IDN,MA201810-202105

main68950-F4150iZYX10201810

main68950-F4160iZGX11..TH201810-202006

EXCEPT THAI OR BRUNEI SPEC

68960BSTAY ASSY, BACK DOOR, LH

main68960-0WB80iZGX11..TH201802-201809

EXCEPT THAI OR BRUNEI SPEC

sub68960-F4160

main68960-0WD50iZYX10201802-201809

sub68960-F4150

main68960-F4070iZGX11201802-201809

sub68960-F4071

main68960-F4071iZGX11..IDN,MA201810-202105

main68960-F4150iZYX10201810

main68960-F4160iZGX11..TH201810-202006

EXCEPT THAI OR BRUNEI SPEC

69321COVER, BACK DOOR LOCK

main69321-10010iZGX11..TH201802-202105

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-F4020iZGX11..TH201802-202105

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-F4020iZGX11..TH201802-202105

90105T0054

main90105-T0054

90105T0167

main90105-T0167

9011906904

main90119-06904

90119T0122

main90119-T0122

9014880066

main90148-80066

90148T0015

main90148-T0015

90182T0038

main90182-T0038

19 parts on this diagram · 1 diagram in section
