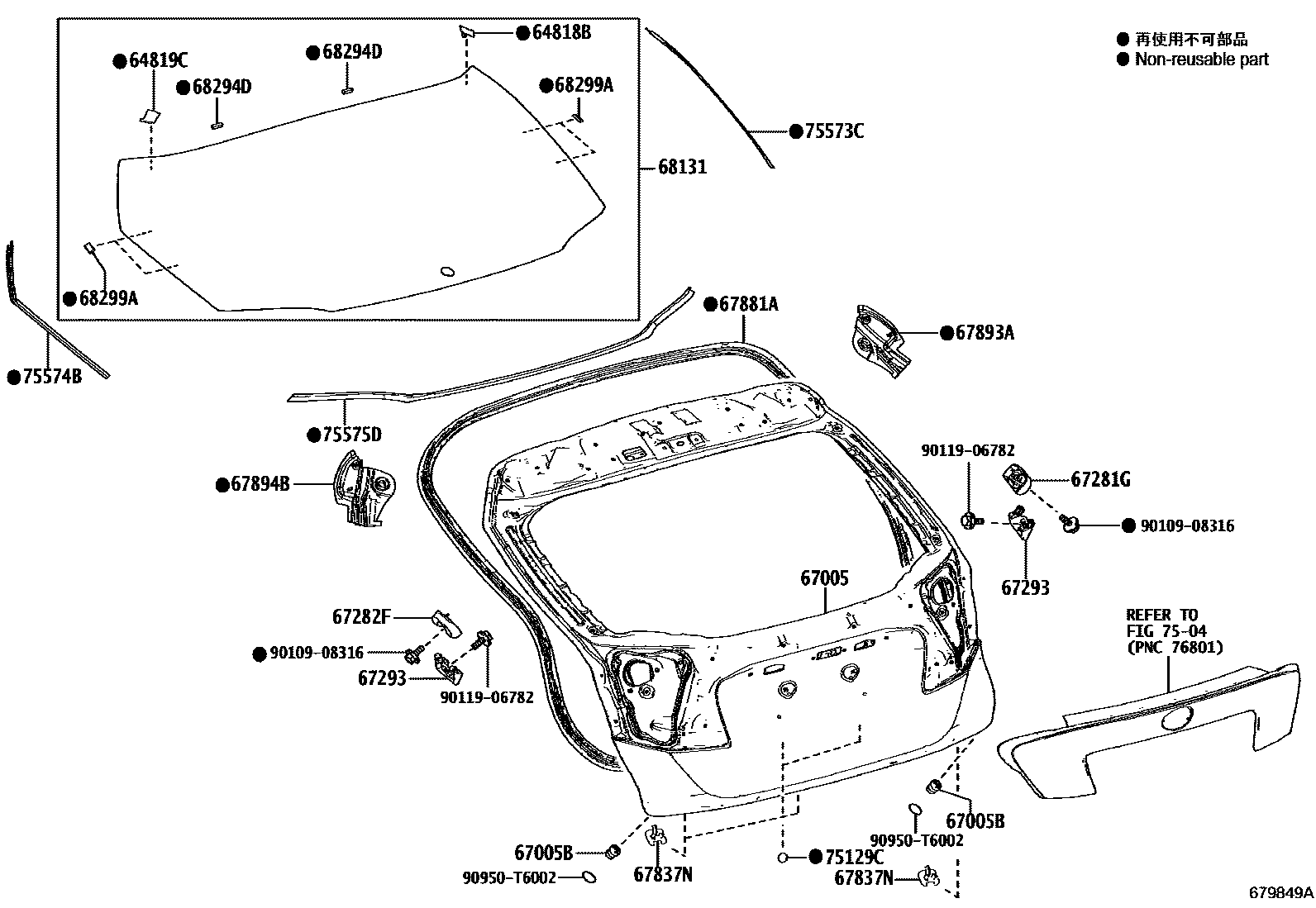

BACK DOOR PANEL & GLASS
64818BSPACER, BACK DOOR GLASS, NO.1
64819CSPACER, BACK DOOR GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
67281GSTOPPER, BACK DOOR, LOWER RH
67282FSTOPPER, BACK DOOR, LWR LH
67293CUSHION, BACK DOOR LOWER STOPPER
RH
RH,(J)
RH,(L)
LH
LH,(J)
LH,(L)
67837NSEAL, BACK DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
67893APROTECTOR, BACK DOOR PANEL, NO.1
(J)
(L)
67894BPROTECTOR, BACK DOOR PANEL, NO.2
(J)
(L)
68131GLASS, BACK DOOR
68294DDAM, BACK DOOR GLASS ADHESIVE, NO.2
68299ASPACER, BACK DOOR GLASS
7504
75129CCUSHION, REAR LICENCE PLATE
75573CMOULDING, BACK WINDOW, OUTSIDE
75574BMOULDING, BACK WINDOW, OUTSIDE LH
75575DMOULDING, BACK WINDOW, LOWER
9010908316
9011906782
90950T6002
main90950-T6002
22 parts on this diagram · 2 diagrams in section
