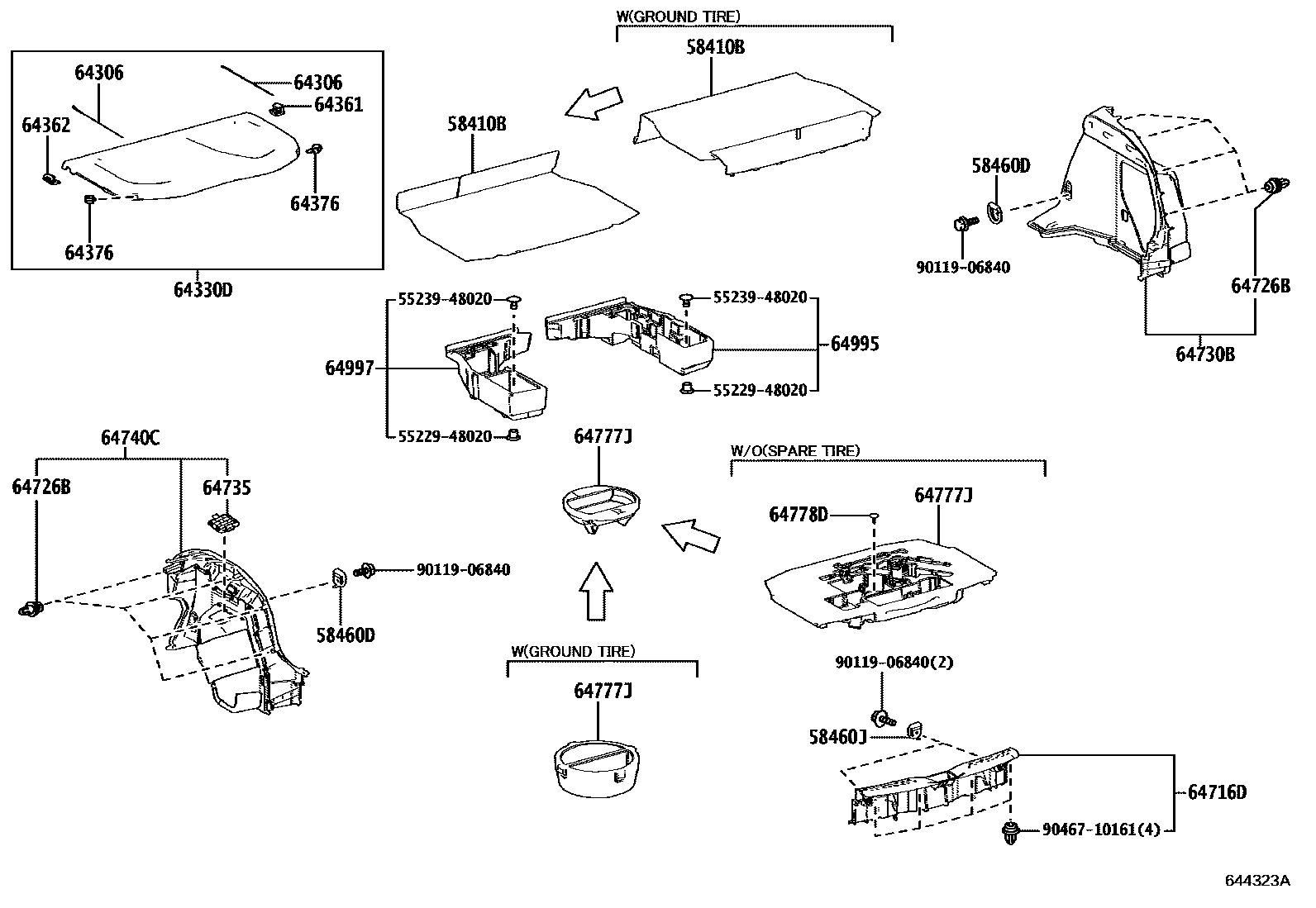

DECK BOARD & DECK TRIM COVER
58410BBOARD ASSY, DECK
BLACK,TRIM2#
SPARE TIRE-TEMPORARY,BLACK,TRIM2#
BLACK,TRIM2#
EXCEPT THAI OR BRUNEI SPEC&SPARE TIRE-GROUND TIRE,BLACK,TRIM2#
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58460JSTRIKER ASSY, LUGGAGE HOLD BELT
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64330DPANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM2#
64361HINGE, PACKAGE TRAY TRIM, RH
BLACK,TRIM2#
64362HINGE, PACKAGE TRAY TRIM, LH
BLACK,TRIM2#
64376SPACER, PACKAGE TRAY TRIM, NO.2
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM2#
64726BCLIP, DECK REAR TRIM
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM2#
64735COVER, DECK TRIM SIDE SERVICE HOLE
BLACK,TRIM2#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM2#
64777JCUSHION, SPARE WHEEL
SPARE TIRE-TEMPORARY
SPARE TIRE-GROUND TIRE
64778DPROTECTOR, SPARE WHEEL
64995BOX, DECK FLOOR, RH
SPARE TIRE-TEMPORARY
SPARE TIRE-GROUND TIRE
64997BOX, DECK FLOOR, LH
SPARE TIRE-TEMPORARY
SPARE TIRE-GROUND TIRE
5522948020PLATE, DASH PANEL INSULATOR, NO.4
main55229-48020
5523948020SILENCER, STEERING COLUMN HOLE COVER
main55239-48020
9011906840
main90119-06840
9046710161
main90467-10161
21 parts on this diagram · 1 diagram in section
