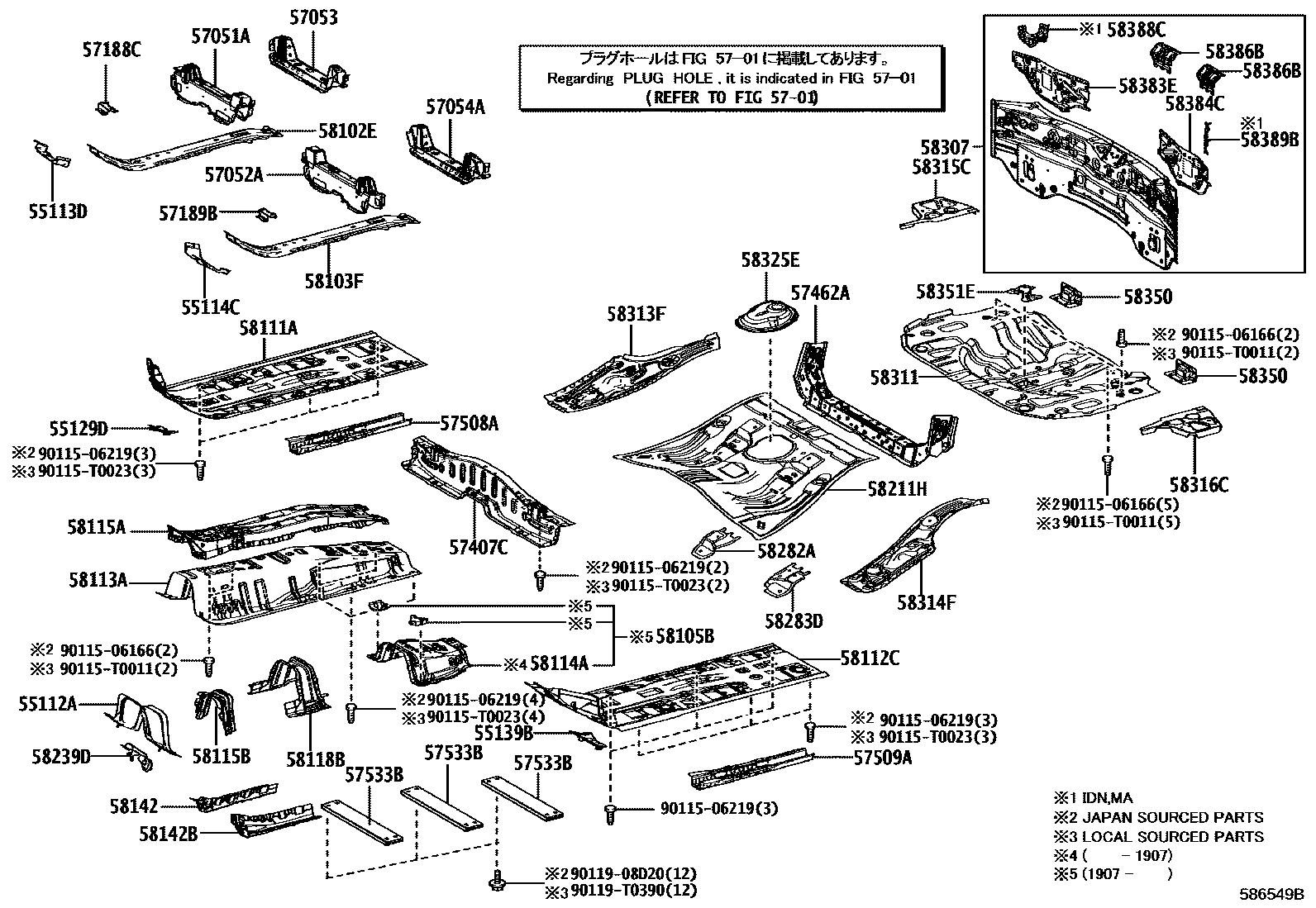

FLOOR PAN & LOWER BACK PANEL
55112APANEL, DASH, NO.2
(J)
(L)
55113DPANEL, DASH, LOWER RH
55114CPANEL, DASH, LOWER LH
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57533BBRACE, FRONT FLOOR, CENTER
58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
58111APAN, FRONT FLOOR, RH
sub58111-F4021
58112CPAN, FRONT FLOOR, LH
sub58112-F4021
58113APANEL, FRONT FLOOR, CENTER
58114AREINFORCEMENT, FRONT FLOOR PANEL
58115AREINFORCEMENT, FRONT FLOOR PANEL
58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2
58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH
58239DBRACKET, CABLE CLAMP
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58315CEXTENSION, REAR FLOOR SIDE PANEL, RH
58316CEXTENSION, REAR FLOOR SIDE PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH
58351EBRACKET, SPARE WHEEL CLAMP
58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH
58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58388CPLATE, BODY LOWER BACK REINFORCEMENT, RH
58389BPLATE, BODY LOWER BACK REINFORCEMENT, LH
9011506166
main90115-06166
9011506219
main90115-06219
90115T0011
main90115-T0011
90115T0023
main90115-T0023
9011908D20
main90119-08D20
90119T0390
main90119-T0390
53 parts on this diagram · 3 diagrams in section
