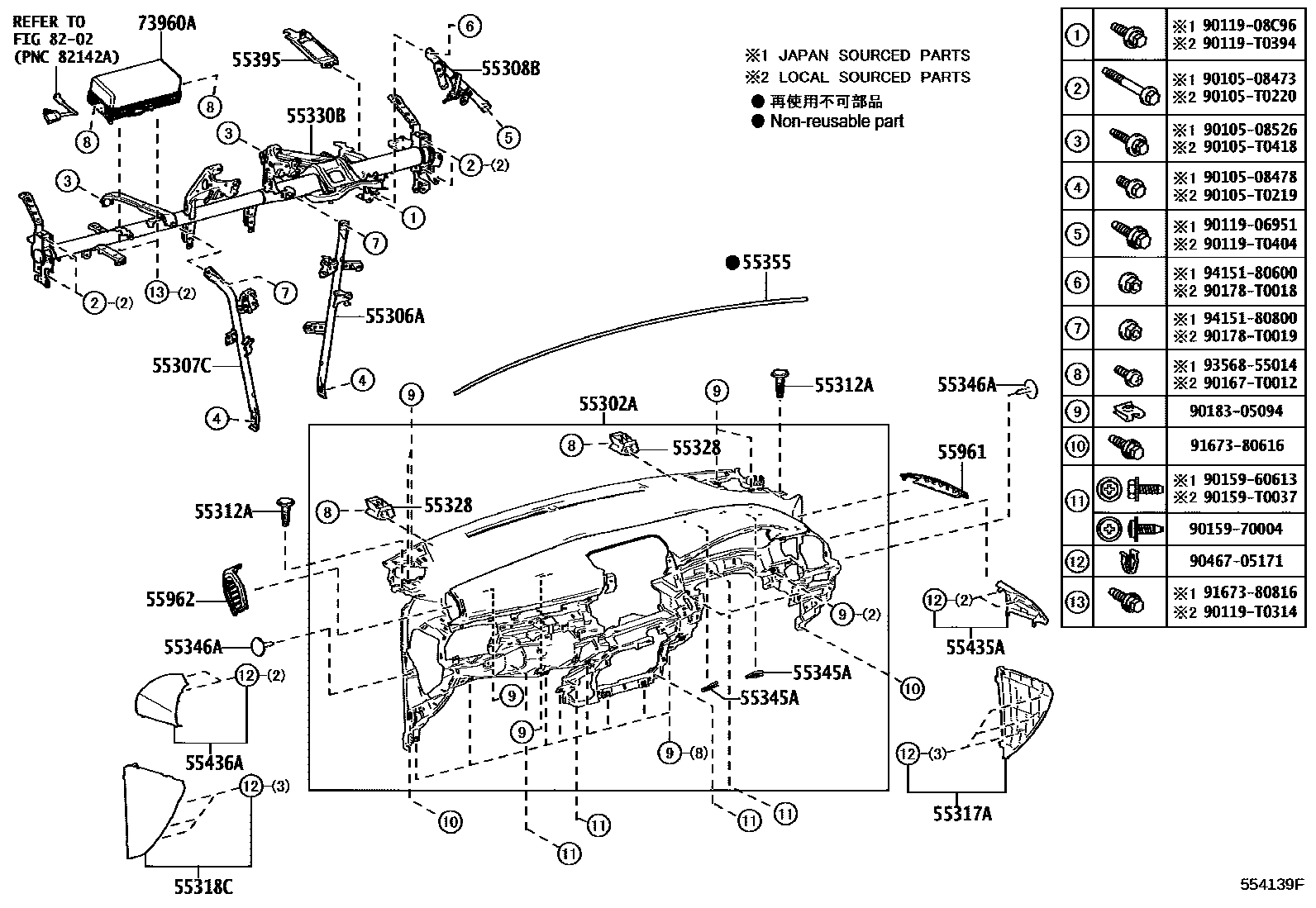

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-F4050-C0iZGX11..E..TH201802-202105

BLACK/LICORICE,TRIM2#

main55302-F4050-C1iZGX11..N201802-202006

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-10050iZGX11..IDN,MA¥1,900201802-202105

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-10060iZGX11..TH¥1,720201802-202105

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-10130iZGX11..IDN,MA201802-202105

55312ACLIP, INSTRUMENT PANEL

main52161-0K040iZGX11..TH¥120201802-202105

55317APANEL, INSTRUMENT SIDE, RH

main55317-10010-C1iZGX11..TH201802-202105

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-10070-C1iZGX11..TH201802-202105

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-10040iZGX11..TH¥370201802-202105

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-F4060iZGX11..TH201802-202105

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iZGX11..TH¥90201802-202105

55346ACLIP, INSTRUMENT PANEL, NO.2

main90467-05161-C9iZGX11..TH201802-202105

BLACK,(J)

sub90467-05161¥90

main90467-T0002-C0iZYX10201802-202105

BLACK,(L)

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-10020iZGX11,ZYX10¥700201802-201901

main55355-10020iZGX11..TH¥700201901-202105

(J)

main55355-F4040iZGX11..IDN,MA201901-202105

(L)

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-10010iZGX11..TH¥970201802-202105

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-10150-C1iZGX11..IDN,MA201802-202105

BLACK,TRIM2#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-10010-C1iZGX11..IDN,MA201802-202105

BLACK,TRIM2#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-10030-C1iZYX10201912-202105

BLACK,TRIM2#,(J)

main55961-10030-C1iZGX11,ZYX10201802-201912

BLACK,TRIM2#

main55961-F4050-C0iZGX11..IDN,MA201912-202105

BLACK,TRIM2#,(L)

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-10030-C1iZGX11..IDN,MA201912-202105

BLACK,TRIM2#,(J)

main55962-10030-C1iZGX11,ZYX10201802-201912

BLACK,TRIM2#

main55962-F4050-C0iZYX10201912-202105

BLACK,TRIM2#,(L)

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-F4040iZGX11..TH201802-202105

8202

9010508473

main90105-08473¥100

9010508478

main90105-08478¥80

9010508526

main90105-08526¥100

90105T0219

main90105-T0219

90105T0220

main90105-T0220

90105T0418

main90105-T0418

9011906951

main90119-06951¥80

9011908C96

main90119-08C96¥80

90119T0314

main90119-T0314

90119T0394

main90119-T0394

90119T0404

main90119-T0404

9015960613

main90159-60613¥60

9015970004

main90159-70004¥60

90159T0037

main90159-T0037

90167T0012

main90167-T0012

90178T0018

main90178-T0018¥70

90178T0019

main90178-T0019

9018305094

main90183-05094¥90

9046705171

main90467-05171¥60

9167380616

main91673-80616¥60

9167380816

main91673-80816¥80

9356855014

main93568-55014¥70

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

43 parts on this diagram · 4 diagrams in section
