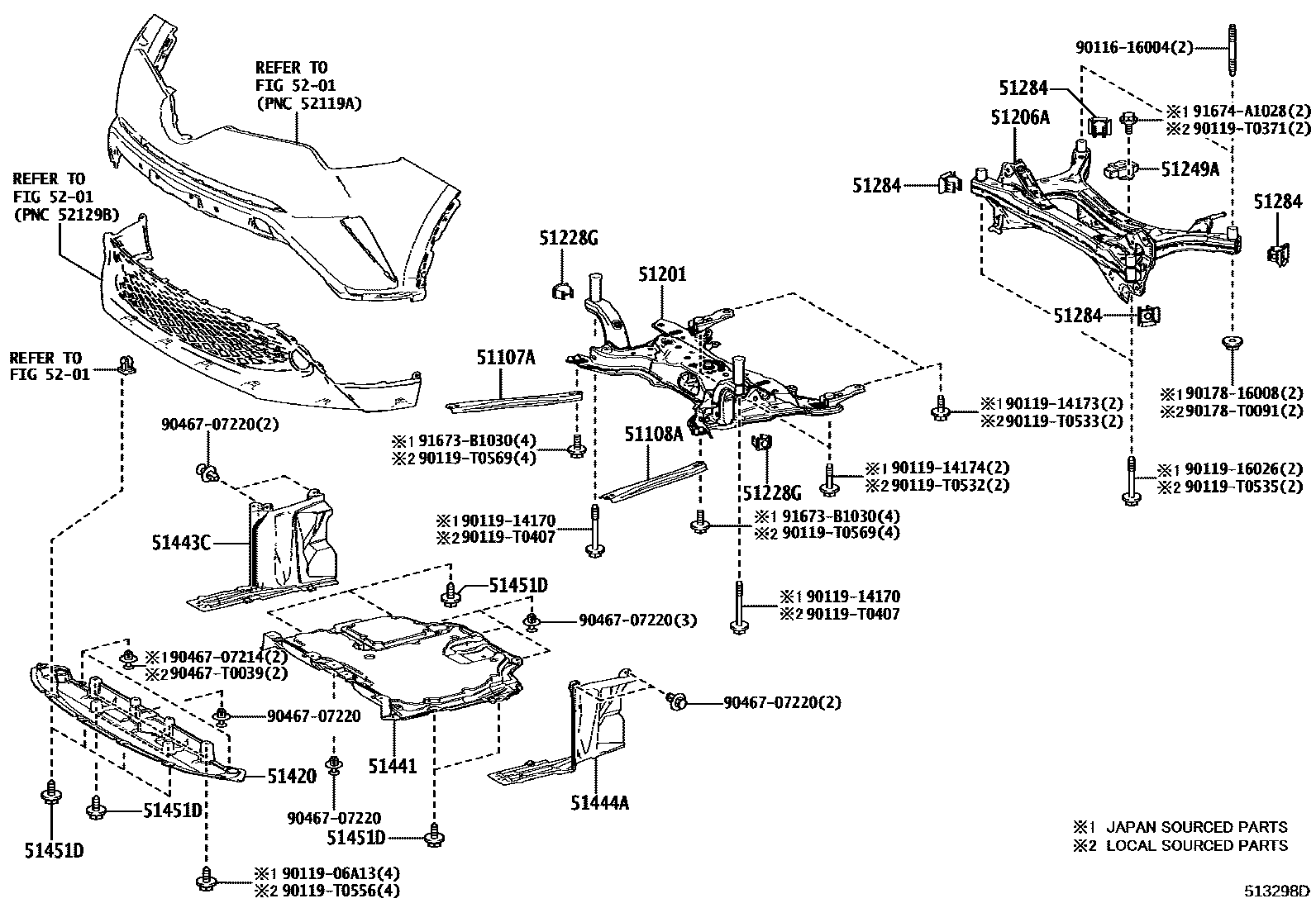

SUSPENSION CROSSMEMBER & UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51151-10010iZGX11..IDN,MA201802-202105

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51151-10010iZGX11..TH201802-202006

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0A011iZGX11..IDN,MA201907-202105

main51201-10121iZGX11,ZYX10201802-201907

sub51201-10122

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-F4030iZGX11,ZYX10201802-202003

main51206-F4031iZGX11..IDN,MA202004-202105

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-F4020×2iZGX11..TH201802-202006

51249ADAMPER, REAR SUSPENSION MEMBER

main51249-10010iZYX10201802

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-F4020×4iZGX11..TH201802-202006

51420COVER ASSY, ENGINE UNDER, NO.2

main51420-F4030iZGX11..TH201802-202006

51441COVER, ENGINE UNDER, NO.1

main51410-F4050iZGX11..TH201802-202006

51443CCOVER, ENGINE UNDER, REAR RH

main51443-F4020iZGX11..TH201802-202006

51444ACOVER, ENGINE UNDER, REAR LH

main51444-F4020iZGX11..TH201802-202006

51451DSCREW, NO.1

main90159-60477×10iZGX11..TH201802-202006

5201

9011616004

main90116-16004

9011906A13

main90119-06A13

9011914170

main90119-14170

9011914173

main90119-14173

9011914174

main90119-14174

9011916026

main90119-16026

90119T0371

main90119-T0371

90119T0407

main90119-T0407

90119T0532

main90119-T0532

90119T0533

main90119-T0533

90119T0535

main90119-T0535

90119T0556

main90119-T0556

90119T0569

main90119-T0569

9017816008

main90178-16008

90178T0091

main90178-T0091

9046707214

main90467-07214

9046707220

main90467-07220

90467T0039

main90467-T0039

91673B1030

main91673-B1030

91674A1028

main91674-A1028

33 parts on this diagram · 1 diagram in section
