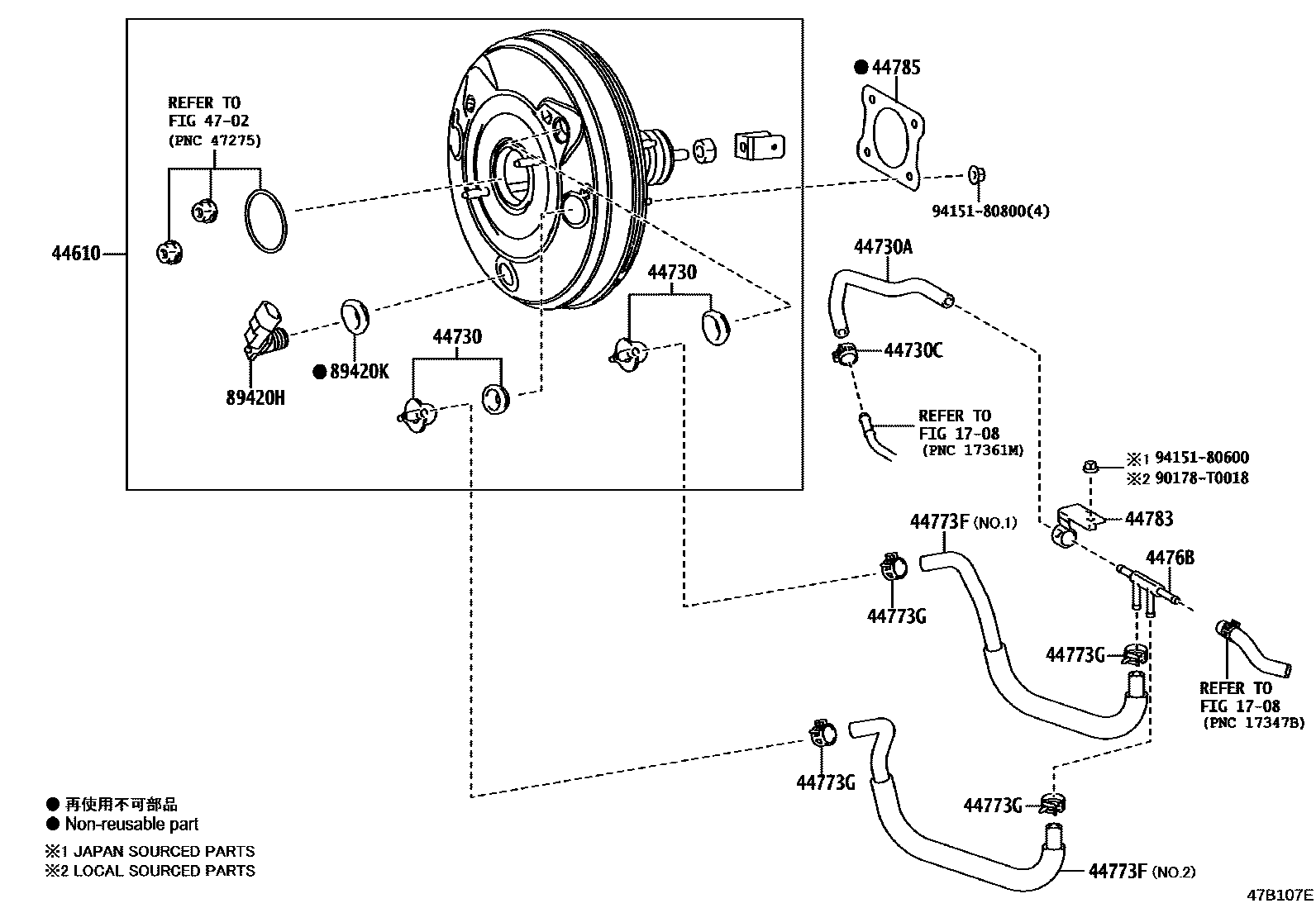

BRAKE BOOSTER & VACUUM TUBE

1708

44610BOOSTER ASSY, BRAKE

main44610-F9070iZGX11..IDN,MA201802-202105

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-F9010×2iZGX11..TH201802-202006

44730AHOSE, VACUUM, NO.1

main44774-F4020iZGX11..TH201802-202006

44730CCLIP(FOR VACUUM HOSE)

main90466-T0019iZGX11..TH201802-202006

4476BEJECTOR, BRAKE BOOSTER VACUUM

main4476B-48010iZGX11..TH201802-202006

44773FHOSE, UNION TO CHECK VALVE

main44773-F4010iZGX11..IDN,MA201802-202105

NO.1:REFER ILLUST.

main44773-F4020iZGX11..TH201802-202006

NO.2:REFER ILLUST.

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-T0019×4iZGX11..TH201802-202006

44783CLAMP, VACUUM HOSE

main44783-10010iZGX11..TH201802-202006

44785GASKET, BRAKE BOOSTER

main44785-12040iZGX11..TH201802-202006

4702

89420HSENSOR ASSY, VACUUM

main89421-52020iZGX11..TH201802-202006

89420KGROMMET, VACUUM SENSOR

main90480-24439iZGX11..TH201802-202006

90178T0018

main90178-T0018

9415180600

main94151-80600

9415180800

main94151-80800

16 parts on this diagram · 1 diagram in section
