PARKING BRAKE & CABLE

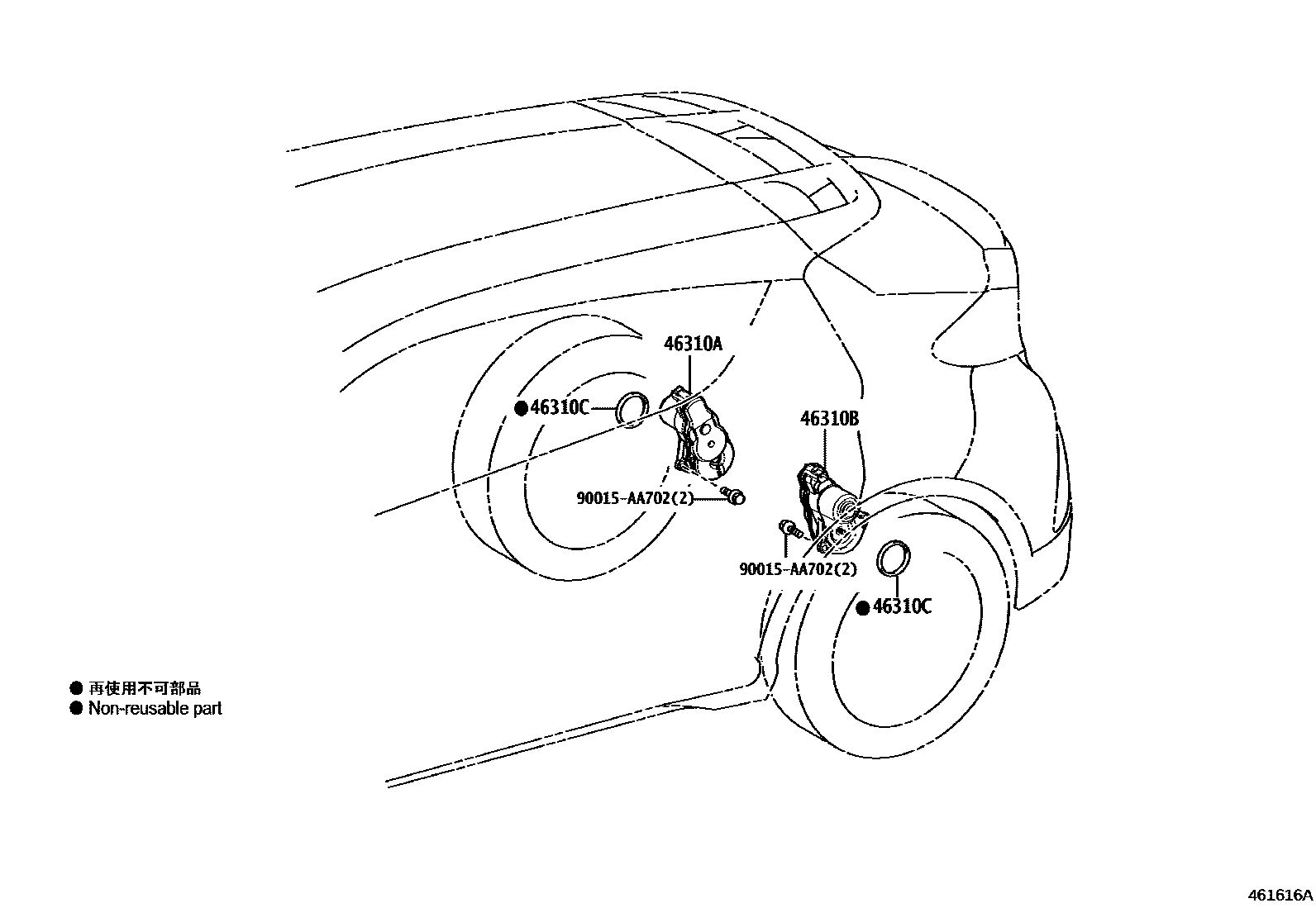

Parts diagram

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-33010i¥14,400202106

main46310-78010i¥15,900201802-202106

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-33010i¥14,400202106

main46310-78010i¥15,900201802-202106

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005i¥130201802-202105

90015AA702

main90015-AA702¥270

4 parts on this diagram · 1 diagram in section
