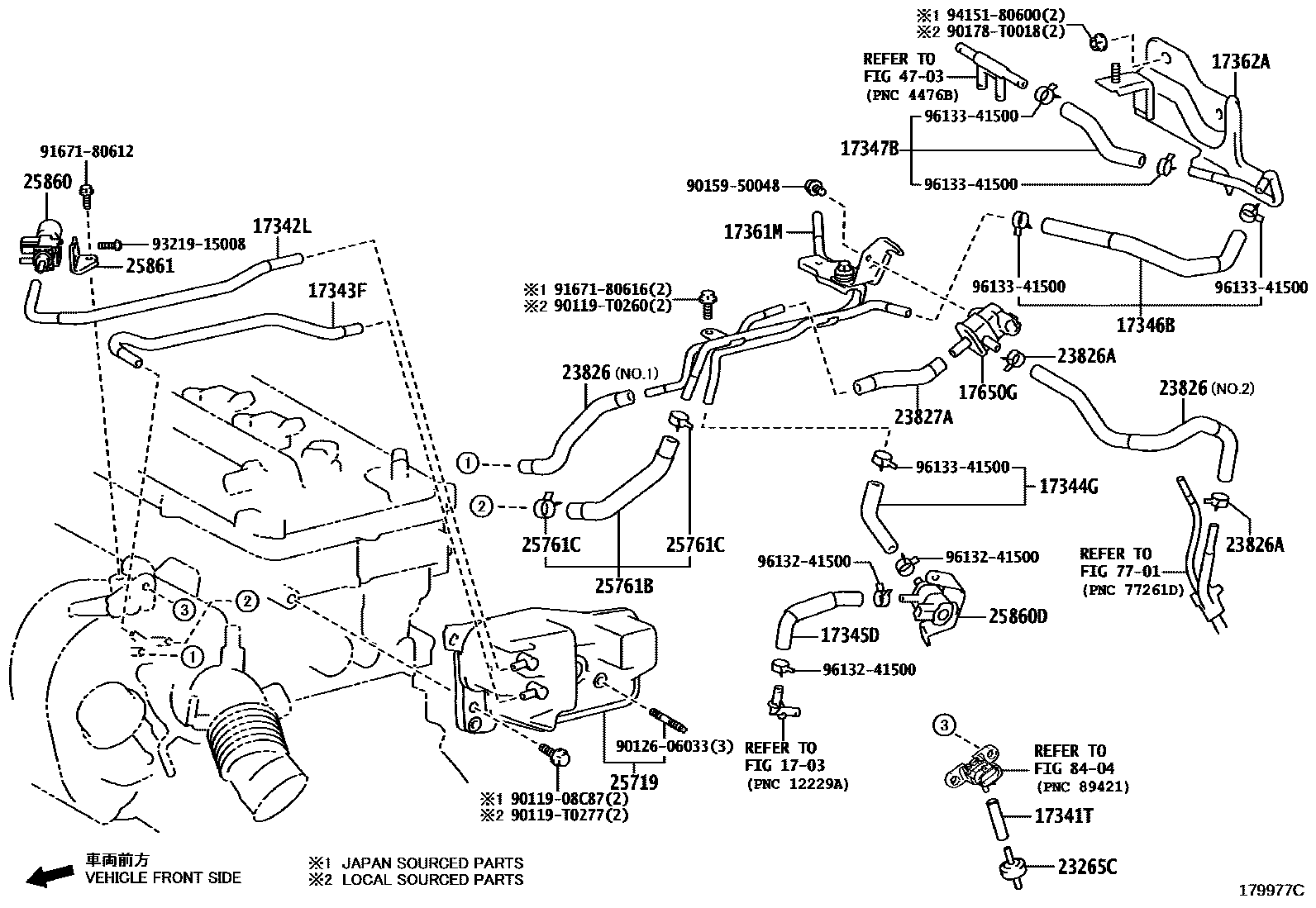

VACUUM PIPING
1703
17341THOSE, AIR, NO.1
(L)
(J)
17342LHOSE, AIR, NO.2
(L)
(J)
17343FHOSE, AIR, NO.3
(L)
(J)
17344GHOSE, AIR, NO.4
17345DHOSE, AIR, NO.5
17346BHOSE, AIR, NO.6
17347BHOSE, AIR, NO.7
17361MTUBE, AIR
17362ATUBE, AIR, NO.2
17650GVALVE, DUTY VACUUM SWITCHING
23265CFILTER, GAS
23826HOSE, FUEL VAPOR FEED, NO.1
NO.2
NO.2
(L),NO.1
(J),NO.1
NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23827AHOSE, FUEL VAPOR FEED, NO.2
(L)
(L)
(J)
(J)
25719TANK, VACUUM SURGE
25761BHOSE, VACCUM TRANSMITTING, NO.1
sub25761-37041
25761CCLIP(VACCUM TRANSMITTING HOSE NO.1)
25860VALVE ASSY, VACUUM SWITCHING, NO.1
25860DVALVE ASSY, VACUUM SWITCHING, NO.2
25861BRACKET, VACUUM SWITCHING VALVE
4703
7701
8404
9011908C87
main90119-08C87
90119T0260
main90119-T0260
90119T0277
main90119-T0277
9012606033
main90126-06033
9015950048
main90159-50048
90178T0018
main90178-T0018
9167180612
main91671-80612
9167180616
main91671-80616
9321915008
main93219-15008
9415180600
main94151-80600
9613241500
main96132-41500
9613341500
main96133-41500
36 parts on this diagram · 2 diagrams in section
