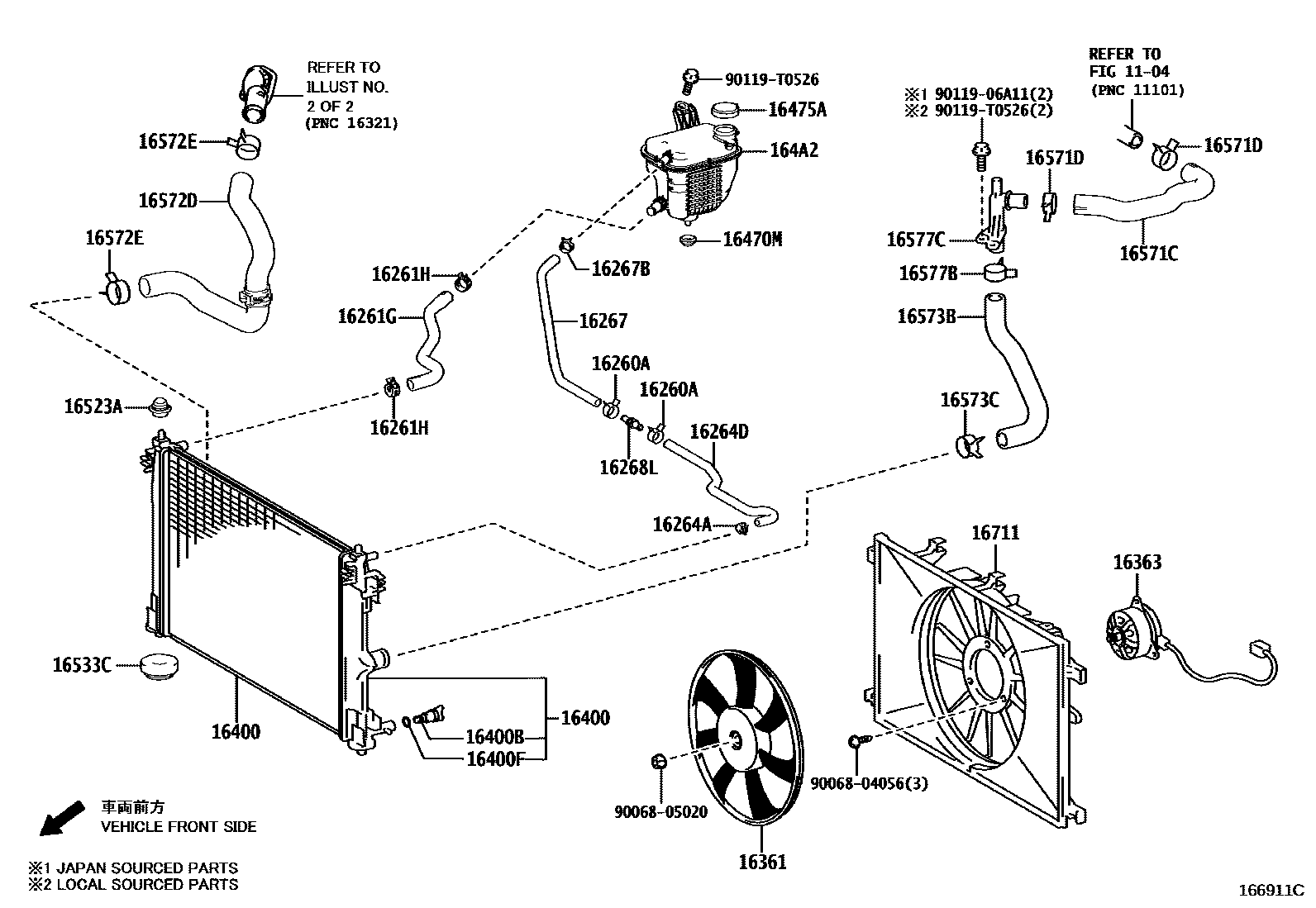

RADIATOR & WATER OUTLET
1104
16260HOSE ASSY, WATER BY-PASS
16260ACLIP(FOR WATER BY-PASS HOSE ASSY)
(L)
(J)
16261HOSE, WATER BY-PASS
(L)
(L)
(J)
(J)
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
(L)
(J)
16264HOSE, WATER BY-PASS, NO.2
(L)
(L)
(J)
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
(L)
(J)
16264DHOSE, WATER BY-PASS, NO.2
16267HOSE, WATER BY-PASS, NO.3
(L)
(J)
16267BCLIP(FOR WATER BY-PASS HOSE)
16268PIPE, WATER BY-PASS, NO.1
16268LPIPE, WATER BY-PASS
16361FAN
16363MOTOR, COOLING FAN
sub16363-0T240
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470MGROMMET
16475ACAP, RESERVE TANK
164A2TANK, RESERVE SEALED W/O CAP
16523ACUSHION, RADIATOR SUPPORT
16533CGROMMET(FOR RADIATOR SUPPORT)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
(L),NO.1
(J),NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
(L)
(J)
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
(L)
(J)
16577BCLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)
16577CPIPE, RADIATOR
9006804056
main90068-04056
9006805020
main90068-05020
9011906A11
main90119-06A11
90119T0526
main90119-T0526
36 parts on this diagram · 4 diagrams in section
