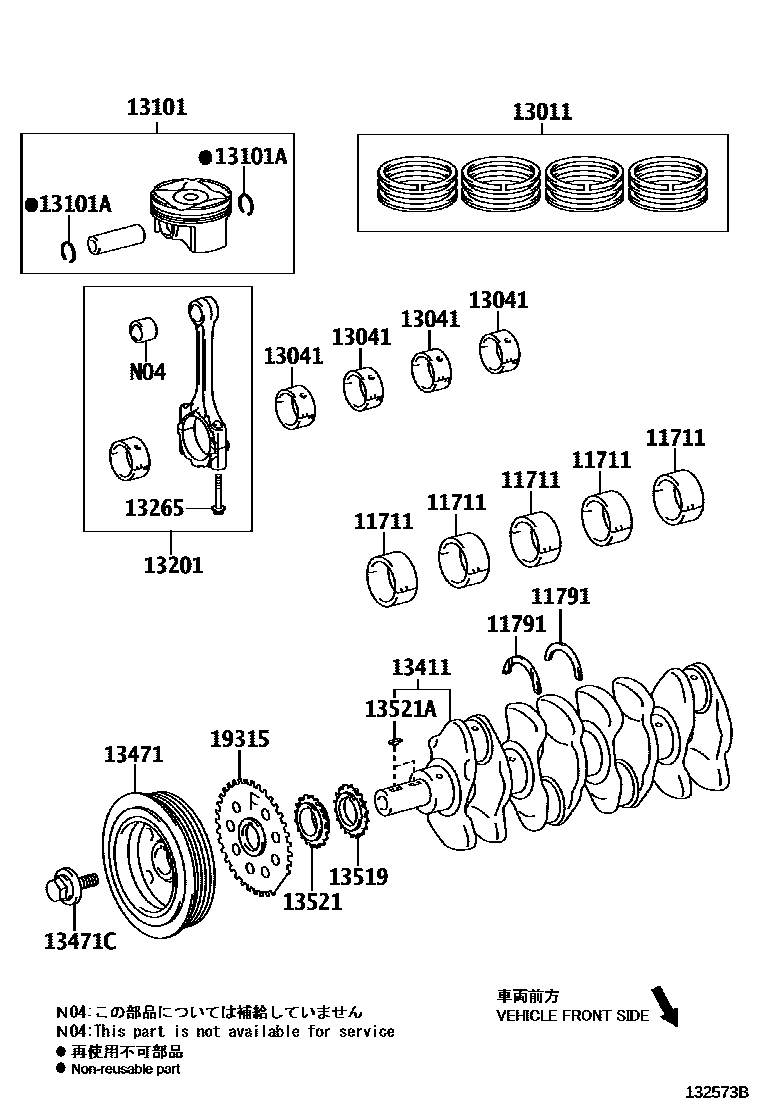

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1,(L)
MARK2,(L)
MARK3,(L)
MARK4,(L)
MARK1,(J)
MARK2,(J)
MARK3,(J)
MARK4,(J)
MARK1
MARK2
MARK3
MARK4
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,(L)
STD,(J)
STD
13011RING SET, PISTON
STD,(L)
STD,MADE IN INDONESIA
STD,(J)
STD
STD,MADE IN JAPAN
13041BEARING, CONNECTING ROD
MARK1,(L)
MARK2,(L)
MARK3,(L)
MARK1,(L)
MARK2,(L)
MARK3,(L)
MARK1,(J)
MARK2,(J)
MARK3,(J)
MARK1,(J)
MARK1
MARK2
MARK2,(J)
MARK3
MARK3,(J)
13101PISTON SUB-ASSY, W/PIN
STD
STD,(L)
STD,(J)
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
(L)
(L)
(J)
(J)
13411CRANKSHAFT
(L)
(J)
13471PULLEY, CRANKSHAFT
(L)
(J)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
(J)
(J)
13519GEAR, OIL PUMP DRIVE
(L)
(J)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L)
(J)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
19315PLATE, CRANK ANGLE SENSOR, NO.1
(L)
(J)
