STANDARD TOOL

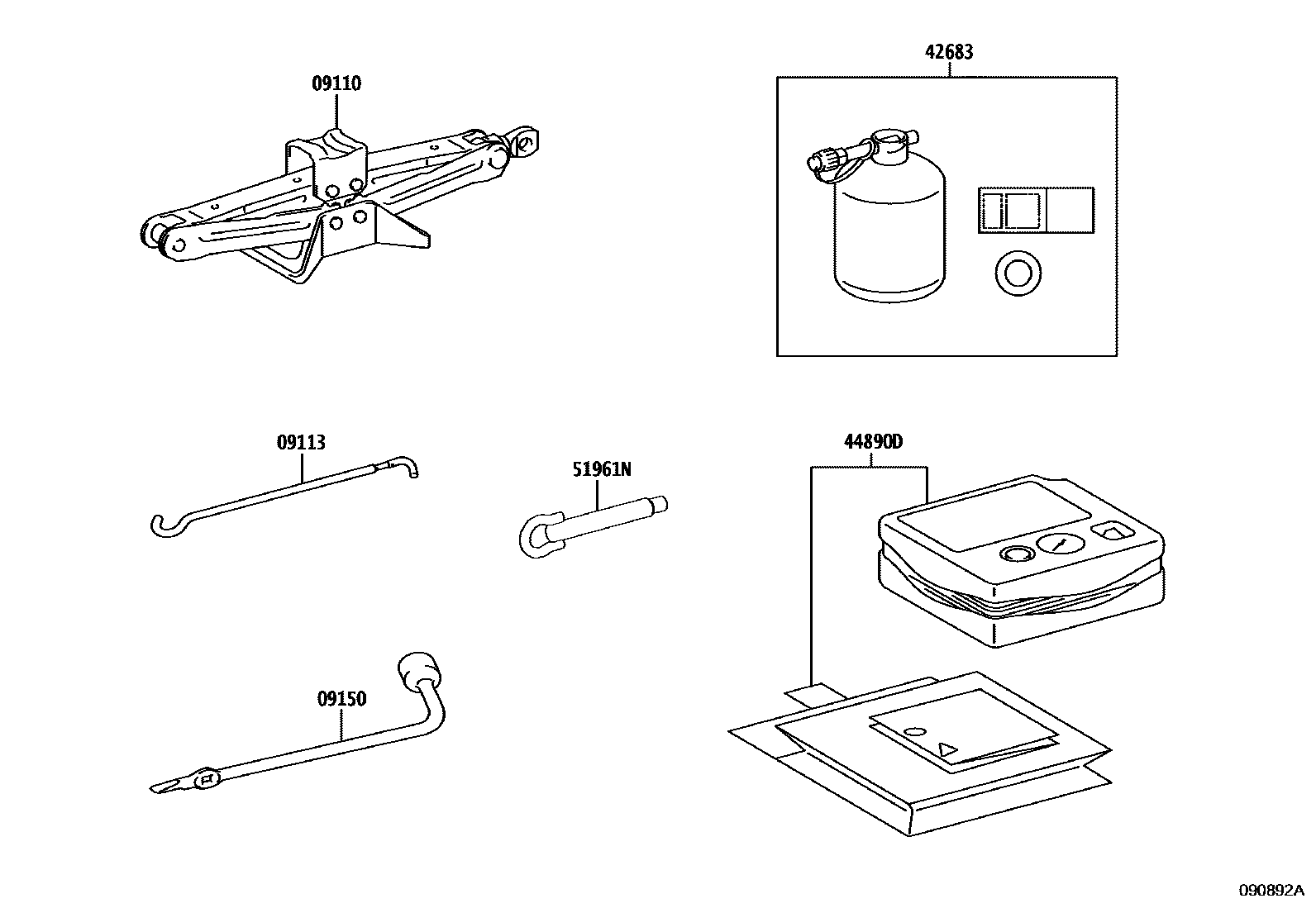

Parts diagram
09110JACK ASSY
main09111-02110i202108
(L)
main09111-47050i201802-202108
sub09111-47051
main09111-47050i202108-202201
(J)
sub09111-47051
main09111-47051i202202
(J)
09113HANDLE, JACK
main09113-02090i201904-202105
(L)
main09113-42030i201904-202105
(J)
main09113-42030i201802-201904
09150WRENCH, HUB NUT BOX
main09150-42010i201802-202105
42683SEAL, TIRE REPAIR
main42606-F4040i201802-202012
SPARE TIRE-TEMPORARY
sub42606-F4041
main42606-F4041i202101
44890DCOMPRESSOR ASSY, AIR
main42680-F4020i201802-202101
sub42680-F4021
main42680-F4021i202102
51961NHOOK, TRANSPORT
main51960-10010i201802-202105

6 parts on this diagram · 1 diagram in section
