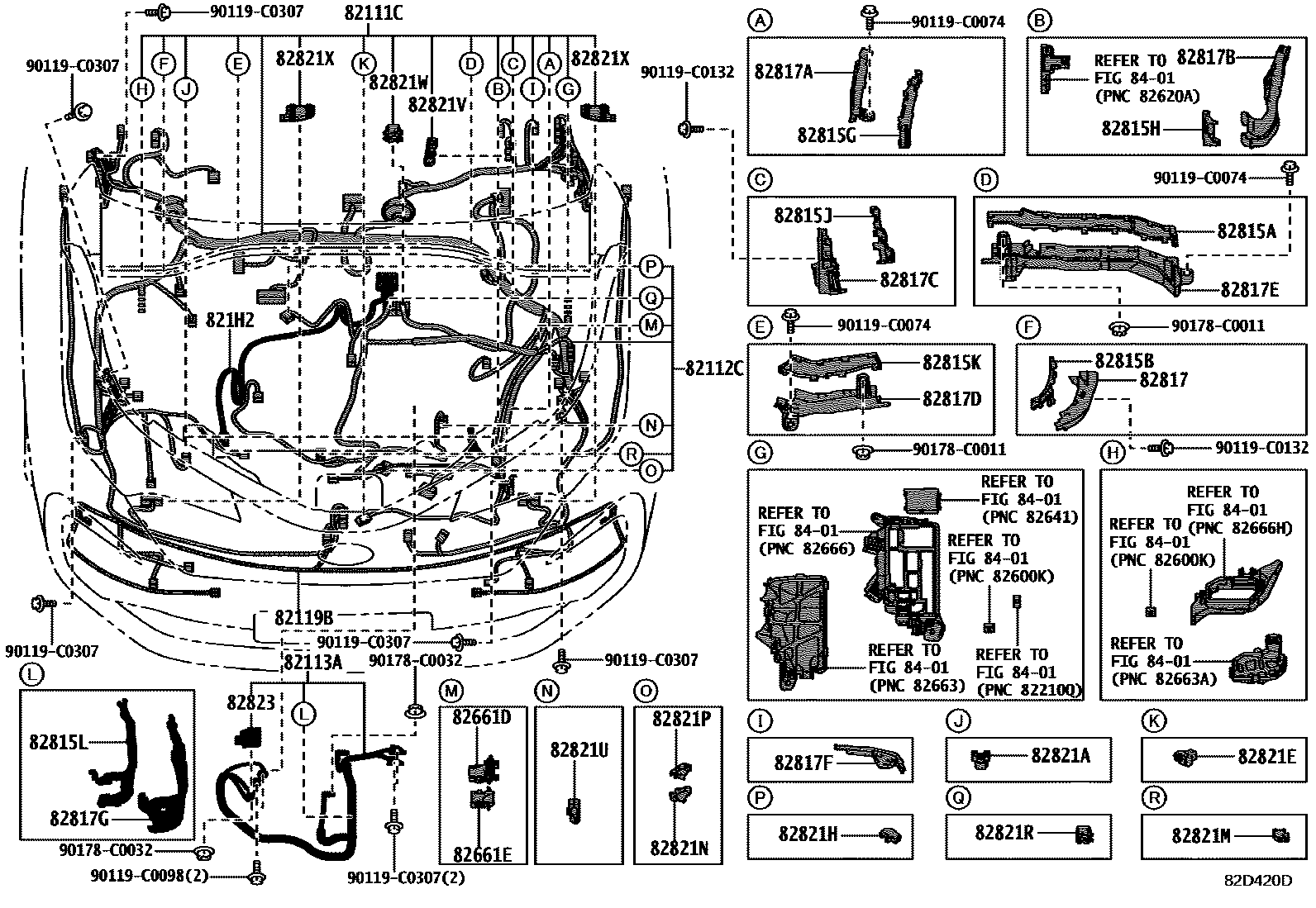

WIRING & CLAMP

0001 1MOTOR ROOM 0002 1INSTRUMENT PANEL 0003 1DOOR 0004 1FLOOR & ROOF 0005 1HIGH TENSION CABLE 0006 1SEAT 0007 1CLAMP & BRACKET 0008 1CONNECTOR 1/2 0009 1CONNECTOR 2/2

82111CWIRE, FRONT COMPARTMENT, MAIN

main82111-F4680iKPX10..D202005

main82111-F4690iKPX10..N202005

main82111-F4700iKPX10..G202005

82112CWIRE, FROMT COMPARTMENT, NO.2

main82112-F4020iKPX10202005

82113AWIRE, FRONT COMPARTMENT, NO.3

main82113-F4020iKPX10202005

82119BWIRE, FRONT COMPARTMENT, NO.5

main82119-F4070iKPX10..G202005

821H2WIRE, HV AIR CONDITIONER

main821H2-F4020iKPX10202005

82661DCOVER, RELAY BLOCK, SIDE NO.1

main82661-47020iKPX10202005

82661ECOVER, RELAY BLOCK, SIDE NO.2

main82661-47030iKPX10202005

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-12L50iKPX10202005

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-12L60iKPX10202005

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-47880iKPX10202005

82815HCOVER, WIRING HARNESS PROTECTOR NO.6

main82815-47C20iKPX10202005

82815JCOVER, WIRING HARNESS PROTECTOR, NO.7

main82815-47C80iKPX10202005

82815KCOVER, WIRING HARNESS PROTECTOR, NO.8

main82815-47D20iKPX10202005

82815LCOVER, WIRING HARNESS PROTECTOR, NO.9

main82815-47E50iKPX10202005

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-12Z40iKPX10202005

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-47N30iKPX10202005

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-47N40iKPX10202005

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-47N50iKPX10202005

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-47N90iKPX10202005

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-76B40iKPX10202005

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-F4520iKPX10202005

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-47Q20iKPX10202005

82821ACOVER, CONNECTOR

main82821-30650iKPX10202005

82821ECOVER, CONNECTOR

main82821-78050iKPX10202005

82821HCOVER, CONNECTOR

main82821-12600iKPX10202005

82821MCOVER, CONNECTOR

main82821-47330iKPX10202005

82821NCOVER, CONNECTOR

main82821-47480iKPX10202005

82821PCOVER, CONNECTOR

main82821-47490iKPX10202005

82821RCOVER, CONNECTOR

main82821-47690iKPX10202005

82821UCOVER, CONNECTOR

main82821-78050iKPX10202005

82821VCOVER, CONNECTOR

main82821-33620iKPX10202005

82821WCOVER, CONNECTOR

main82821-47680iKPX10202005

82821XCOVER, CONNECTOR

main82821-50780iKPX10202005

82823CAP, TERMINAL, NO.1

main82823-47050iKPX10202005

8401

90119C0074

main90119-C0074

90119C0098

main90119-C0098

90119C0132

main90119-C0132

90119C0307

main90119-C0307

90178C0011

main90178-C0011

90178C0032

main90178-C0032

41 parts on this diagram · 9 diagrams in section
