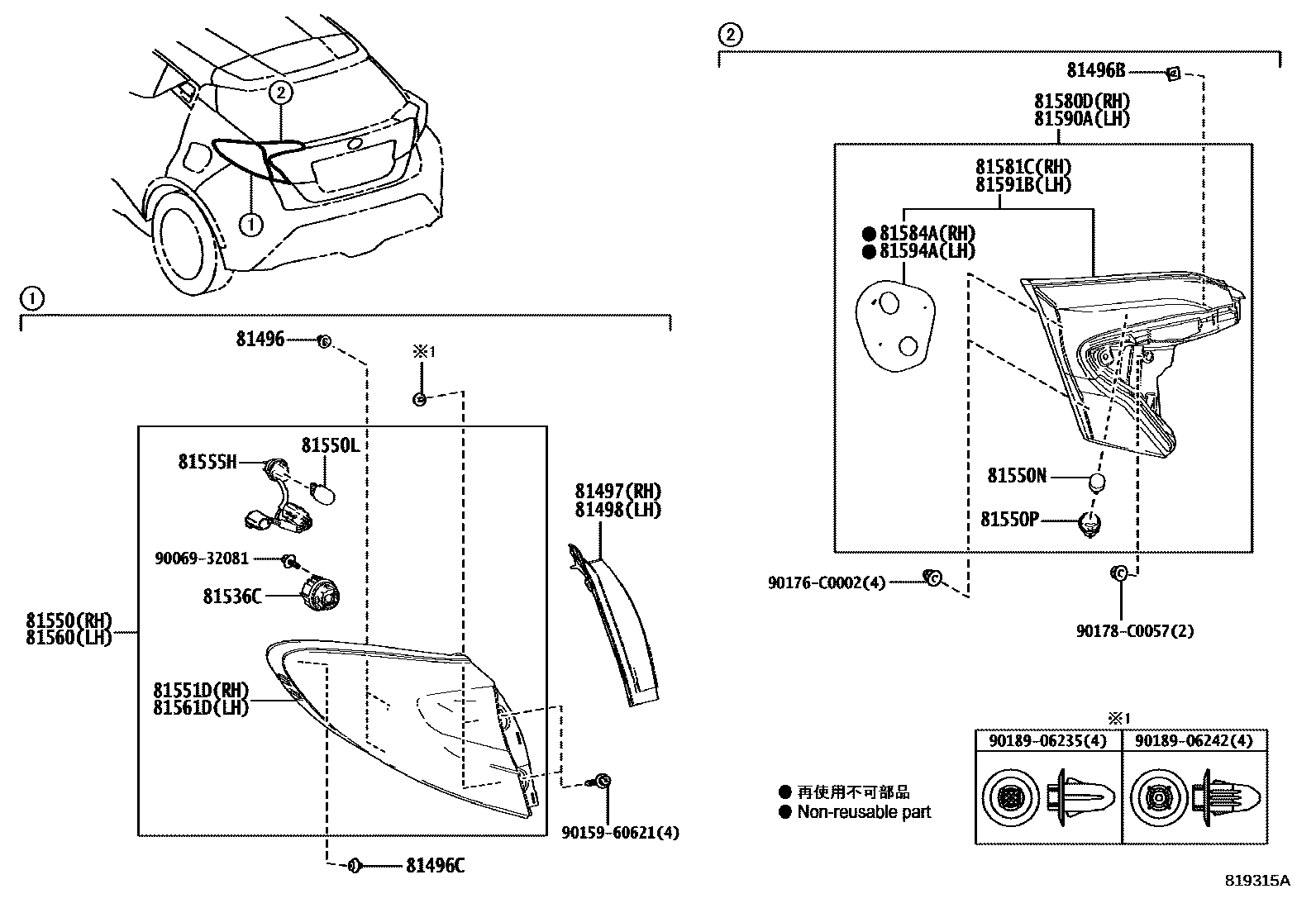

REAR COMBINATION LAMP

0001 1 0002 1

81496GUIDE, REAR COMBINATION LAMP

main81496-0D030×4iKPX10202005

81496BGUIDE, REAR LAMP

main76817-26040×2iKPX10202005-202112

main90467-C0083×2iKPX10202112

(L)

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main90467-C0019×2iKPX10202005

81497COVER, REAR COMBINATION LAMP, RH

main81497-F4040iKPX10202005

81498COVER, REAR COMBINATION LAMP, LH

main81498-F4040iKPX10202005

81536CLED, TAIL & STOP LAMP

main81536-F4080×2iKPX10..D,N202005

81550LAMP ASSY, REAR COMBINATION, RH

main81550-F4101iKPX10..D,N202005

main81550-F4110iKPX10..G202005

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15029×2iKPX10..D,N202005

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059×2iKPX10..D,N202005

12V 16W

81550PSOCKET, BACK UP LAMP

main90069-81119×2iKPX10..D,N202005

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-F4101iKPX10..D,N202005

81555HSOCKET & WIRE, REAR COMBINATION LAMP

main81555-F4080×2iKPX10..D,N202005

81560LAMP ASSY, REAR COMBINATION, LH

main81560-F4101iKPX10..D,N202005

main81560-F4110iKPX10..G202005

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-F4101iKPX10..D,N202005

81580DLAMP ASSY, REAR, RH

main81580-F4071iKPX10..D,N202005

main81580-F4080iKPX10..G202005

81581CLENS AND BODY, REAR LAMP, RH

main81581-F4071iKPX10..D,N202005

81584AGASKET, REAR LAMP RH

main81584-F4050iKPX10..D,N202005

main81584-F4060iKPX10..G202005

81590ALAMP ASSY, REAR, LH

main81590-F4071iKPX10..D,N202005

main81590-F4080iKPX10..G202005

81591BLENS AND BODY, REAR LAMP, LH

main81591-F4071iKPX10..D,N202005

81594AGASKET, REAR LAMP LH

main81594-F4050iKPX10..D,N202005

main81594-F4060iKPX10..G202005

9006932081

main90069-32081

9015960621

main90159-60621

90176C0002

main90176-C0002

90178C0057

main90178-C0057

9018906235

main90189-06235

9018906242

main90189-06242

26 parts on this diagram · 2 diagrams in section
