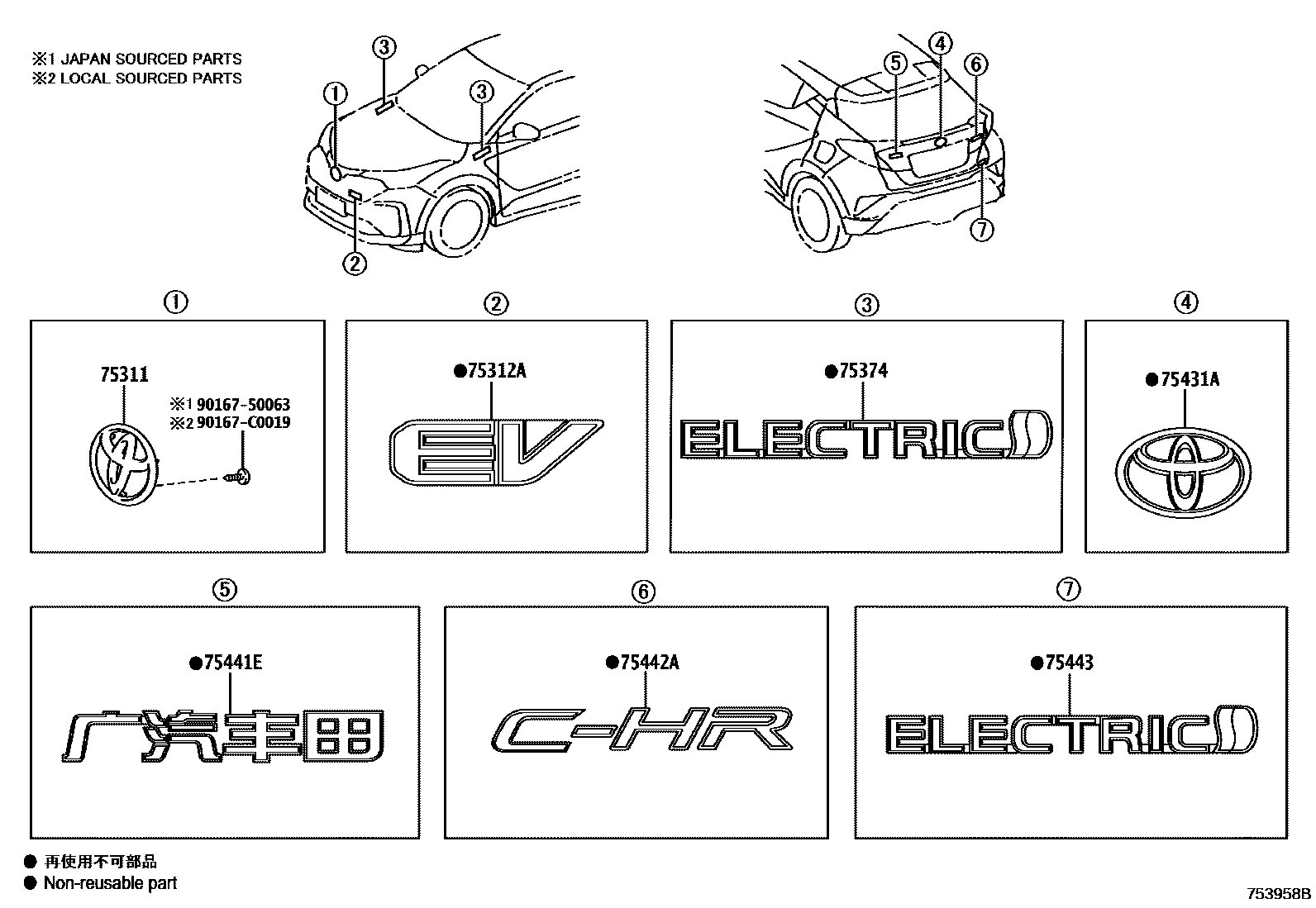

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75301-F4060iKPX10..D202005

main90975-02161iKPX10..G,N¥15,900202005-202007

main90975-02161iKPX10..G,N¥15,900202007

(J)

main90975-C2027iKPX10..G,N202007-202105

(L)

75312APLATE, FRONT NAME, NO.2

main75312-F4080iKPX10202005

EV

75374EMBLEM, SIDE PANEL

main75374-F4070iKPX10202005

RH

main75374-F4080iKPX10202005

LH

75431AEMBLEM, BACK DOOR, NO.1

main75403-02010iKPX10202005

75441EPLATE, BACK DOOR NAME, NO.1

main75441-F4110iKPX10202005

75442APLATE, BACK DOOR NAME, NO.2

main75442-F4060iKPX10202005

C-HR

75443PLATE, BACK DOOR NAME, NO.3

main75443-F4050iKPX10202005

ELECTRIC

9016750063

main90167-50063¥60

90167C0019

main90167-C0019

9 parts on this diagram · 1 diagram in section
