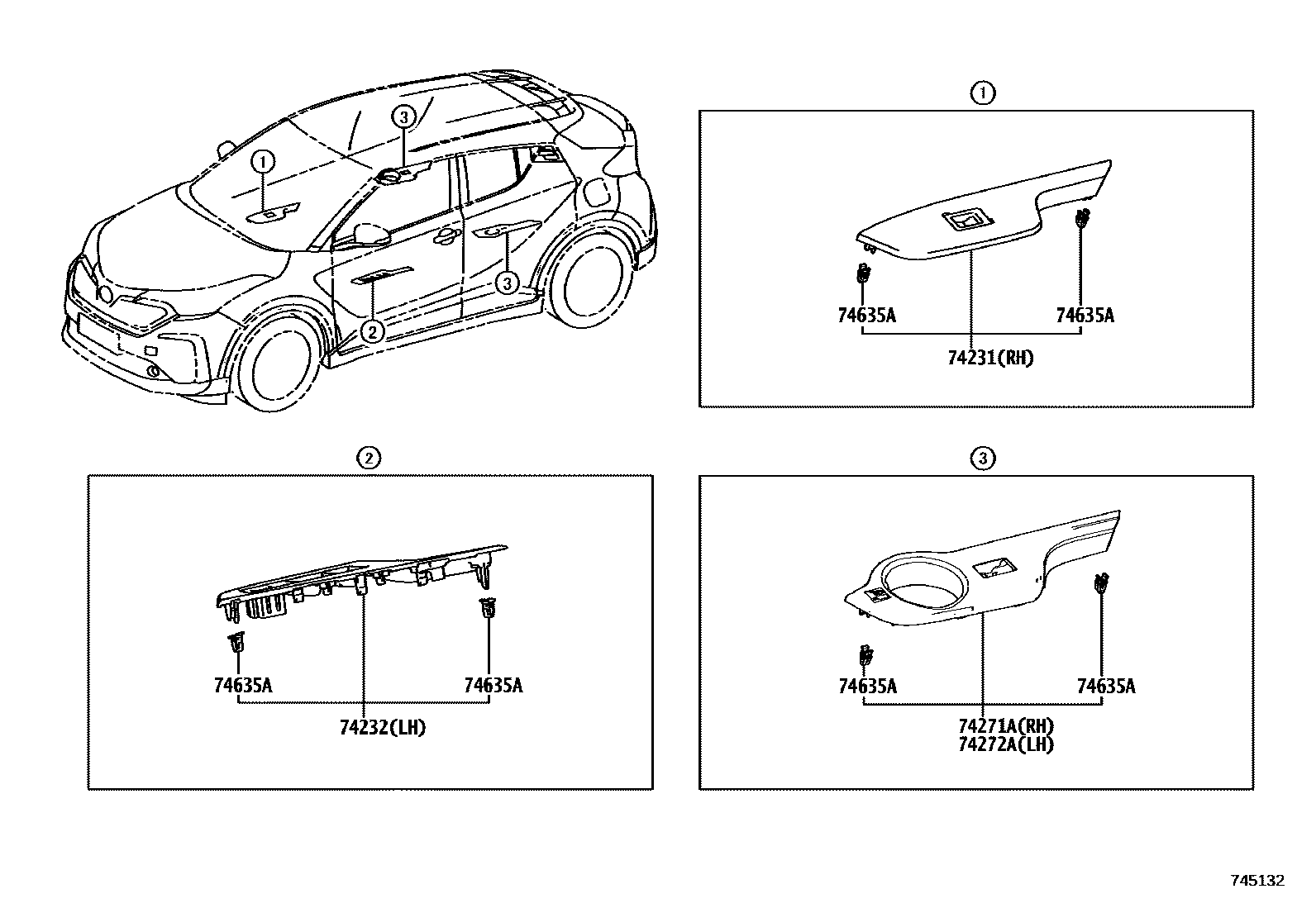

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-F4140iKPX10..D202005

main74231-F4150iKPX10..G,N202005

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-F4150iKPX10..D202005

main74232-F4160iKPX10..G,N202005

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-F4030iKPX10202005

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-F4030iKPX10202005

74635ACLIP

main67773-07020iKPX10202005

5 parts on this diagram · 2 diagrams in section
