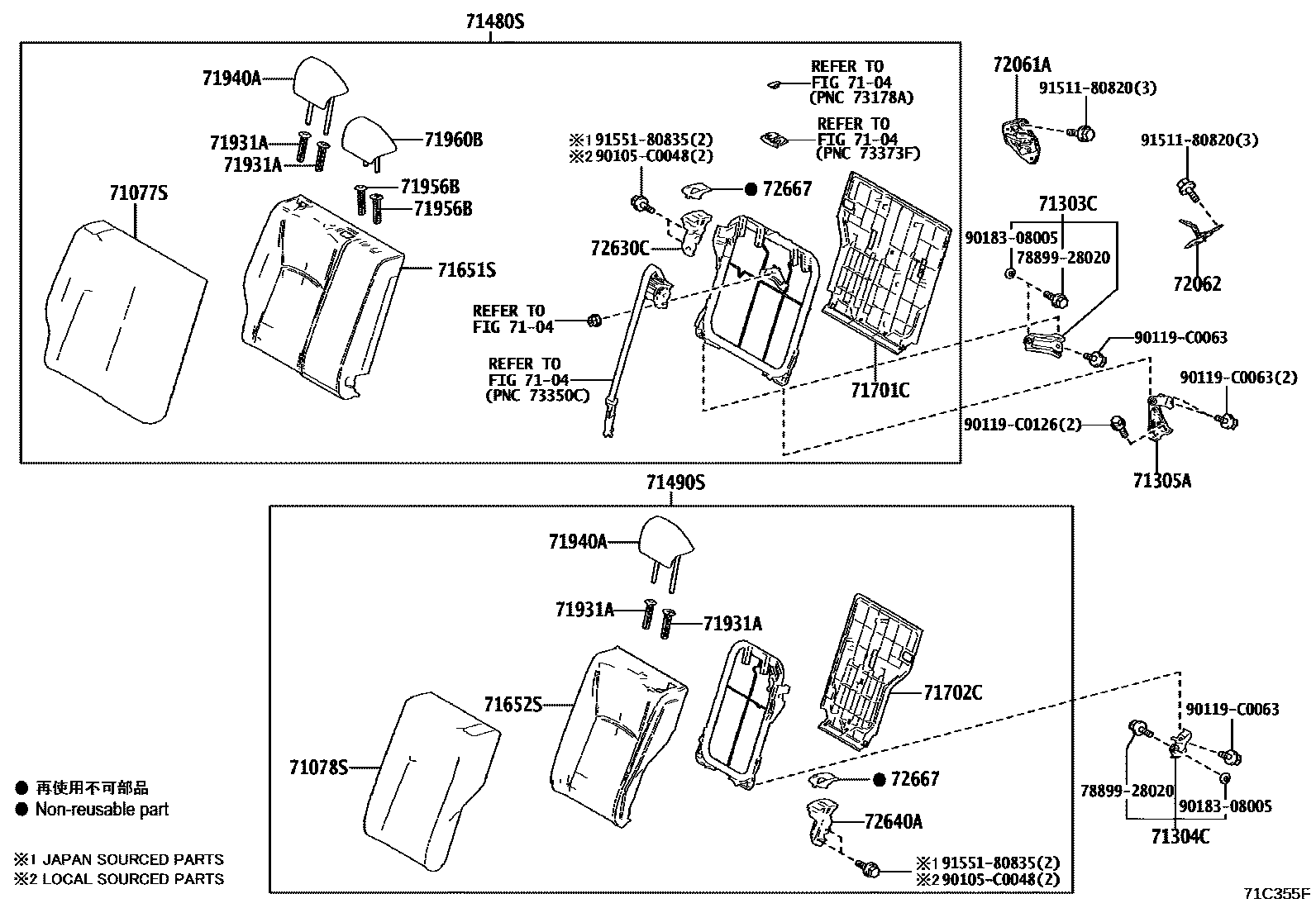

REAR SEAT & SEAT TRACK
7104
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
DK.GRAY,TRIM2#
DARK GREY,TRIM2#
COOL GRAY,TRIM1#
BLACK,TRIM2#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
DK.GRAY,TRIM2#
DARK GREY,TRIM2#
COOL GRAY,TRIM1#
BLACK,TRIM2#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK,TRIM2#
COOL GARY,TRIM1#
BLACK,TRIM2#
71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK,TRIM2#
COOL GARY,TRIM1#
BLACK,TRIM2#
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71701CBOARD SUB-ASSY, REAR SEATBACK, RH
71702CBOARD SUB-ASSY, REAR SEATBACK, LH
71931ASUPPORT, REAR SEAT HEADREST
W(LOCK),COOL GRAY,TRIM1#
W(LOCK),BLACK,TRIM2#
W/O(LOCK),COOL GRAY,TRIM1#
W/O(LOCK),BLACK,TRIM2#
71940AHEADREST ASSY, REAR SEAT
BLACK,TRIM2#
BLUE,TRIM2#
COOL GRAY,TRIM1#
BLACK,TRIM2#
71956BSUPPORT, REAR SEAT HEADREST
W(LOCK),COOL GRAY,TRIM1#
W(LOCK),BLACK,TRIM2#
W/O(LOCK),COOL GRAY,TRIM1#
W/O(LOCK),BLACK,TRIM2#
71960BHEADREST ASSY, REAR SEAT, CENTER
BLACK,TRIM2#
BLACK,TRIM2#
COOL GRAY,TRIM1#
BLACK,TRIM2#
72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH
72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH
72630CLOCK ASSY, REAR SEATBACK, RH
COOL GRAY,TRIM1#
BLACK,TRIM2#
72640ALOCK ASSY, REAR SEATBACK, LH
COOL GRAY,TRIM1#
BLACK,TRIM2#
72667BEZEL, REAR SEATBACK LOCK, UPPER
COOL GRAY,TRIM1#
BLACK,TRIM2#
7889928020BOLT, FRONT SEAT
main78899-28020
90105C0048
main90105-C0048
90119C0063
main90119-C0063
90119C0126
main90119-C0126
9018308005
main90183-08005
9151180820
main91511-80820
9155180835
main91551-80835
28 parts on this diagram · 2 diagrams in section
