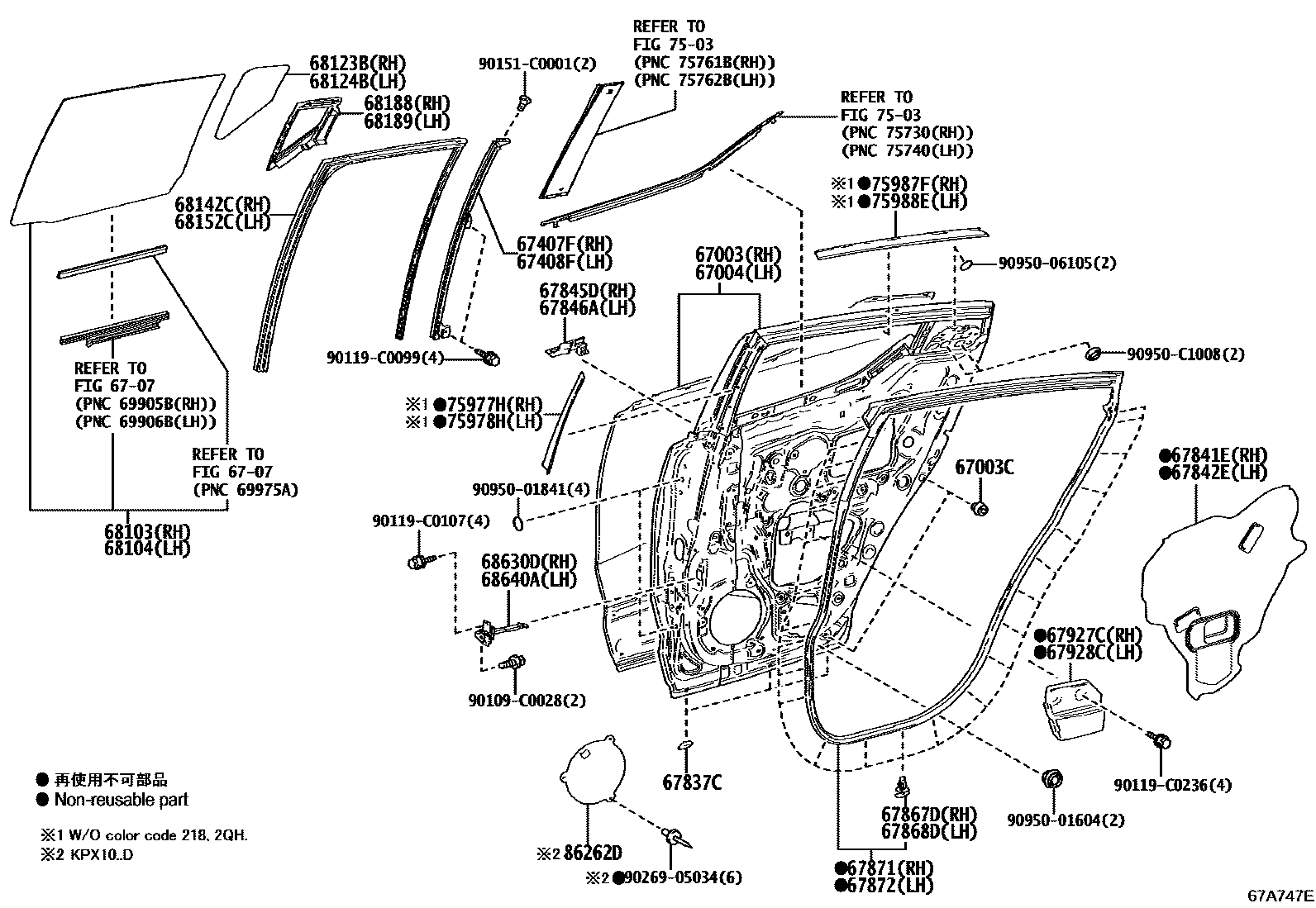

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
6707
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67837CSEAL, REAR DOOR DUST PROOF
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67845DSEAL, REAR DOOR FRONT OUTSIDE, RH
67846ASEAL, REAR DOOR FRONT OUTSIDE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67927CCUSHION, SEPARATOR DOOR STIFFENER, NO.1
67928CCUSHION, SEPARATOR DOOR STIFFENER, NO.2
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
7503
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
0 OR 1PIECE,REF.ILL.
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
0 OR 1PIECE,REF.ILL.
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
0 OR 1PIECE,REF.ILL.
75988ESTRIPE, REAR DOOR, OUTSIDE LH
0 OR 1PIECE,REF.ILL.
86262DCOVER, REAR DOOR SPEAKER
90109C0028
main90109-C0028
90119C0099
main90119-C0099
90119C0107
main90119-C0107
90119C0236
main90119-C0236
90151C0001
main90151-C0001
9026905034
main90269-05034
9095001604
main90950-01604
9095001841
main90950-01841
9095006105
main90950-06105
90950C1008
main90950-C1008
43 parts on this diagram · 2 diagrams in section
