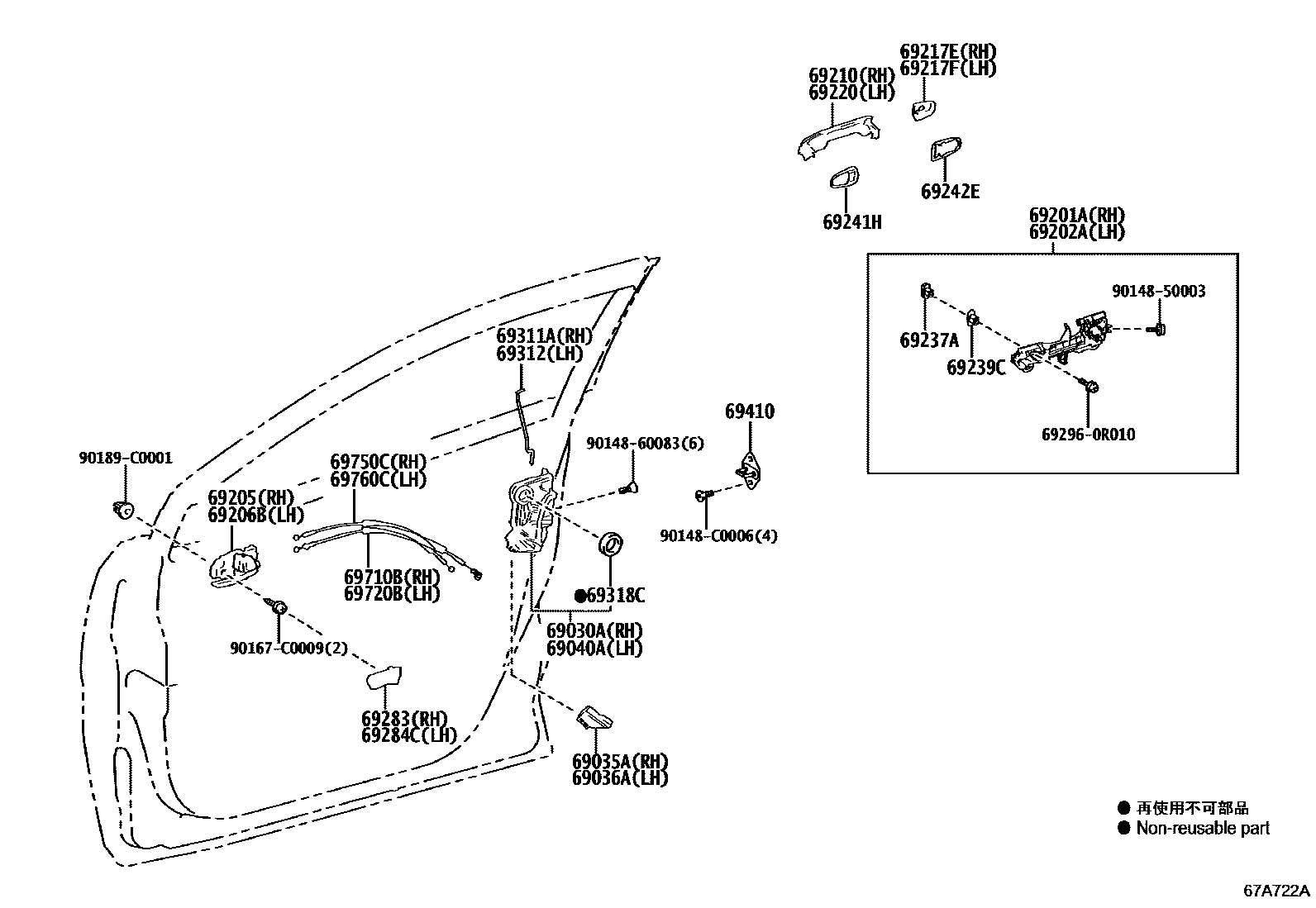

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-02640i202005

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02070i202005

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02070i202005

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-02600i202005

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-F4050i202005

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-F4050i202005

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-F4050-C0i202005

BLACK,TRIM2#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-F4050-C0i202005

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-F4050-A0i202005-202106

WHITE PEARL CS.,070 ,2QJ

main69210-F4050-A1i202106

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-F4050-C0i202005-202106

ATTITUDE BLACK MC.,218 ,2QH

main69210-F4050-C1i202106

BLACK MC.,209

main69210-F4050-D0i202005

RED M.M.,2NU ,2QK ,2QL ,3R3

main69210-F4050-E0i202005

STEEL BLONDE ME.,4X1

main69210-F4050-F0i202106

YELLOW,5A3

main69210-F4050-G1i202005-202106

RADIANT GREEN ME.,2NJ ,6W9

main69210-F4050-J1i202005

BLUE ME.,8X7

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-F4120-A0i202005-202106

WHITE PEARL CS.,070 ,2QJ

main69217-F4120-A1i202106

PLATINUM WHITE PEARL MC.,089 ,2PU

main69217-F4120-C0i202005-202106

ATTITUDE BLACK MC.,218 ,2QH

main69217-F4120-C1i202106

BLACK MC.,209

main69217-F4120-D0i202005

RED M.M.,2NU ,2QK ,2QL ,3R3

main69217-F4120-E0i202005

STEEL BLONDE ME.,4X1

main69217-F4120-F0i202106

YELLOW,5A3

main69217-F4120-G1i202005-202106

RADIANT GREEN ME.,2NJ ,6W9

main69217-F4120-J1i202005

BLUE ME.,8X7

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-F4100-A0i202005-202106

WHITE PEARL CS.,070 ,2QJ

main69217-F4100-A1i202106

PLATINUM WHITE PEARL MC.,089 ,2PU

main69217-F4100-C0i202005-202106

ATTITUDE BLACK MC.,218 ,2QH

main69217-F4100-C1i202106

BLACK MC.,209

main69217-F4100-D0i202005

RED M.M.,2NU ,2QK ,2QL ,3R3

main69217-F4100-E0i202005

STEEL BLONDE ME.,4X1

main69217-F4100-F0i202106

YELLOW,5A3

main69217-F4100-G1i202005-202106

RADIANT GREEN ME.,2NJ ,6W9

main69217-F4100-J1i202005

BLUE ME.,8X7

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-F4050-A0i202005-202106

WHITE PEARL CS.,070 ,2QJ

main69210-F4050-A1i202106

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-F4050-C0i202005-202106

ATTITUDE BLACK MC.,218 ,2QH

main69210-F4050-C1i202106

BLACK MC.,209

main69210-F4050-D0i202005

RED M.M.,2NU ,2QK ,2QL ,3R3

main69210-F4050-E0i202005

STEEL BLONDE ME.,4X1

main69210-F4050-F0i202106

YELLOW,5A3

main69210-F4050-G1i202005-202106

RADIANT GREEN ME.,2NJ ,6W9

main69210-F4050-J1i202005

BLUE ME.,8X7

69237ANUT, FRONT DOOR HANDLE

main69237-F4050×2i202005

69239CBUSH, FRONT DOOR HANDLE

main69239-F4060×2i202005

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-F4040×2i202005

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-06090×2i202005

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-F4040-C0i202005

BLACK,TRIM2#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-F4030-C0i202005

BLACK,TRIM2#

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-F4040i202005

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-F4040i202005

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2i202005

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0D020×2i202005

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-F4050i202005

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-F4050i202005

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-F4050i202005

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-F4050i202005

692960R010SCREW, DOOR INSIDE HANDLE

main69296-0R010

9014850003

main90148-50003

9014860083

main90148-60083

90148C0006

main90148-C0006

90167C0009

main90167-C0009

90189C0001

main90189-C0001

32 parts on this diagram · 1 diagram in section
