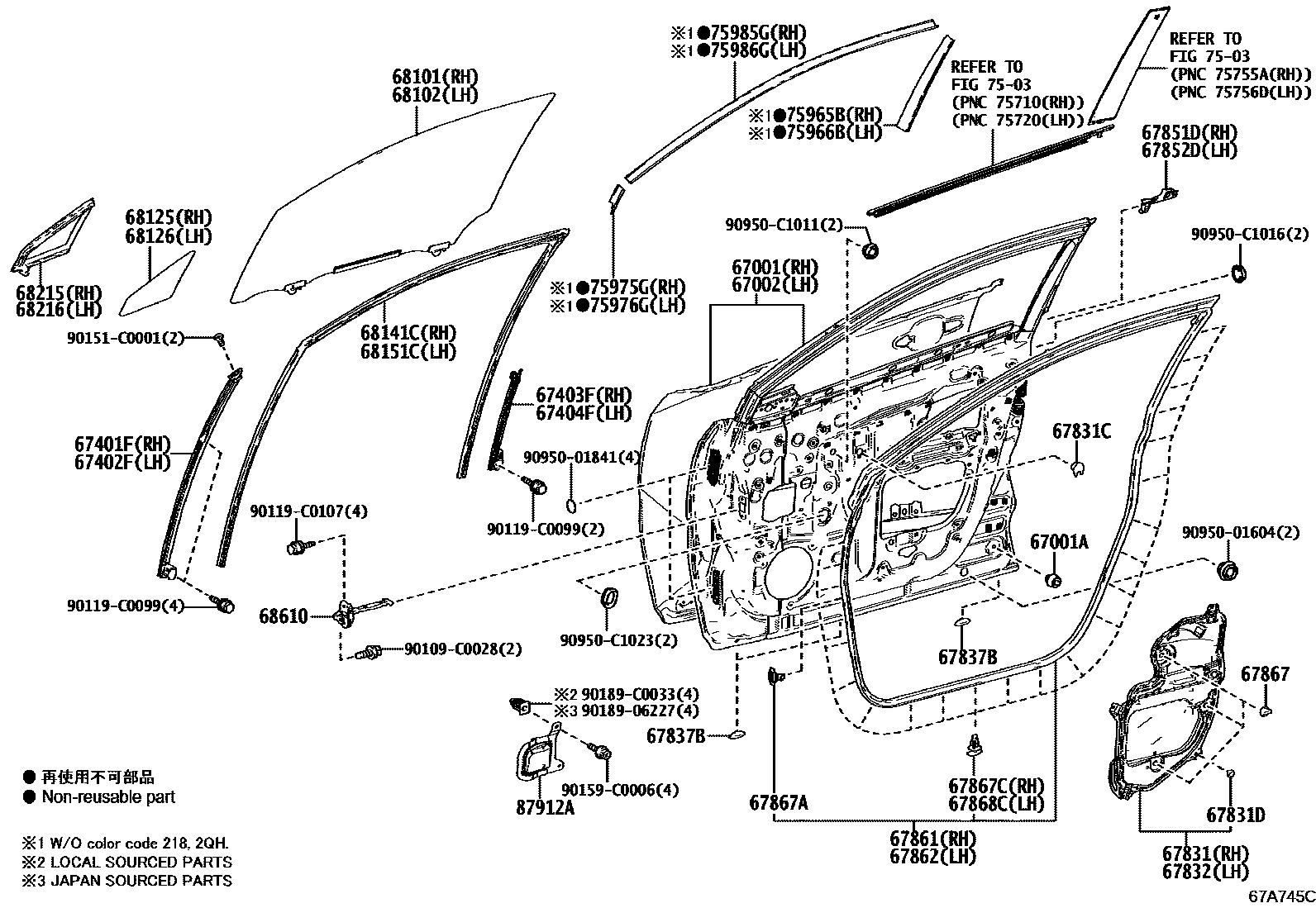

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-F4050iKPX10202005-202203

main67001-F4051iKPX10202204

67001ACUSHION, FRONT DOOR PANEL

main90541-C0003×4iKPX10202005

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-F4050iKPX10202005-202203

main67002-F4051iKPX10202204

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-F4040iKPX10202005

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-F4040iKPX10202005

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-F4040iKPX10202005

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-F4040iKPX10202005

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-F4030iKPX10202005

67831CCOVER, FRONT DOOR SERVICE HOLE

main67833-F4030×2iKPX10202005

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206×8iKPX10202005

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-F4030iKPX10202005

67837BSEAL, FRONT DOOR DUST PROOF

main67837-F4050×6iKPX10202005

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-F4030iKPX10202005

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-F4030iKPX10202005

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-F4050iKPX10202005

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-F4050iKPX10202005

67867CLIP, DOOR WEATHERSTRIP

main67869-F4030×6iKPX10202005

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-52010×2iKPX10202005

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×22iKPX10202005

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×22iKPX10202005

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-F4060iKPX10202005

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-F4060iKPX10202005

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-F4040iKPX10202005

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-F4040iKPX10202005

68141CRUN, FRONT DOOR GLASS, RH

main68141-F4041iKPX10202005

68151CRUN, FRONT DOOR GLASS, LH

main68151-F4041iKPX10202005

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-F4040iKPX10202005

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-F4040iKPX10202005

68610CHECK ASSY, FRONT DOOR

main68610-F4050×2iKPX10202005

7503

75965BSTRIPE, FRONT DOOR NO.4 RH

main75965-F4040iKPX10202005

0 OR 1PIECE,REF.ILL.

75966BSTRIPE, FRONT DOOR NO.4 LH

main75966-F4040iKPX10202005

0 OR 1PIECE,REF.ILL.

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-F4040iKPX10202005

0 OR 1PIECE,REF.ILL.

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-F4040iKPX10202005

0 OR 1PIECE,REF.ILL.

75985GSTRIPE, FRONT DOOR OUTSIDE, RH

main75985-F4040iKPX10202005

0 OR 1PIECE,REF.ILL.

75986GSTRIPE, FRONT DOOR OUTSIDE, LH

main75986-F4040iKPX10202005

0 OR 1PIECE,REF.ILL.

87912APROTECTOR, OUTER MIRROR

main87912-F4070iKPX10202005

RH

main87912-F4090iKPX10202005

LH

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90151C0001

main90151-C0001

90159C0006

main90159-C0006

9018906227

main90189-06227

90189C0033

main90189-C0033

9095001604

main90950-01604

9095001841

main90950-01841

90950C1011

main90950-C1011

90950C1016

main90950-C1016

90950C1023

main90950-C1023

49 parts on this diagram · 2 diagrams in section
