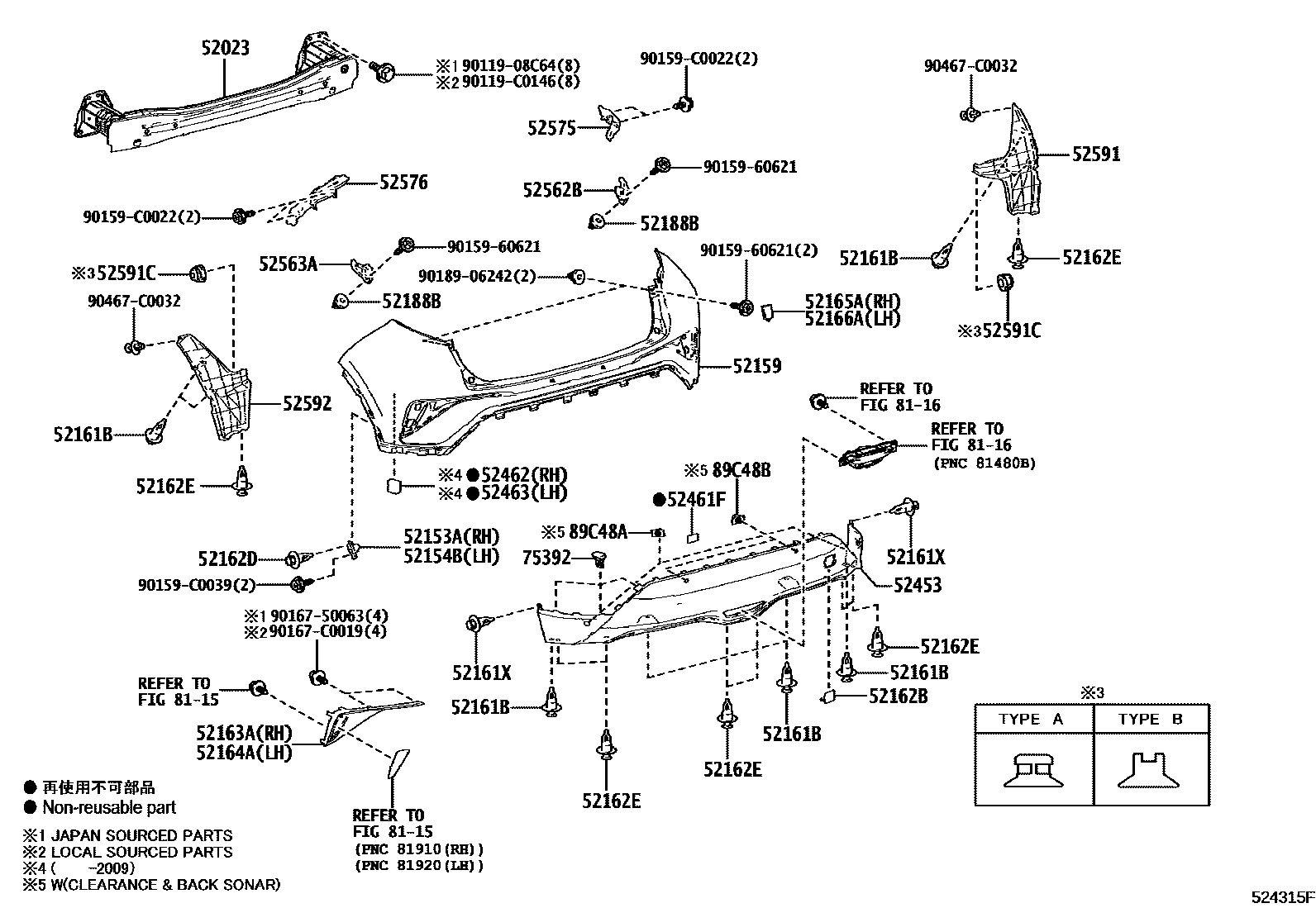

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52153ASTAY, REAR BUMPER SIDE, RH
52154BSTAY, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
52161BPIECE, REAR BUMPER
(L)
52161XPIECE, REAR BUMPER
(L)
52162BPLATE, REAR BUMPER, NO.1
52162DPIECE, REAR BUMPER
(L)
52162EPIECE, REAR BUMPER
(L)
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52165ACOVER, REAR BUMPER, UPR RH
NO PAINT REQ.
52166ACOVER, REAR BUMPER, UPR LH
NO PAINT REQ.
52188BSPACER, REAR BUMPER MOUNTING
52461FPAD, REAR BUMPER
52462PAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52591CCLIP, REAR BUMPER SIDE SEAL
(J),TYPE A:REF ILL.
BLACK,(J),TYPE B:REF ILL.
BLACK,(L),TYPE B:REF ILL.
(L),TYPE A:REF ILL.
52592SEAL, REAR BUMPER SIDE, LH
75392RETAINER, OUTSIDE MOULDING
8115
8116
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
DUMMY-MAT BLACK,LH
DUMMY-MAT BLACK,RH
DUMMY-MAT BLACK,LH
DUMMY-MAT BLACK,RH
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
DUMMY-MAT BLACK
DUMMY-MAT BLACK
9011908C64
90119C0146
main90119-C0146
9015960621
90159C0022
main90159-C0022
90159C0039
main90159-C0039
9016750063
90167C0019
main90167-C0019
9018906242
90467C0032
main90467-C0032
39 parts on this diagram · 1 diagram in section
