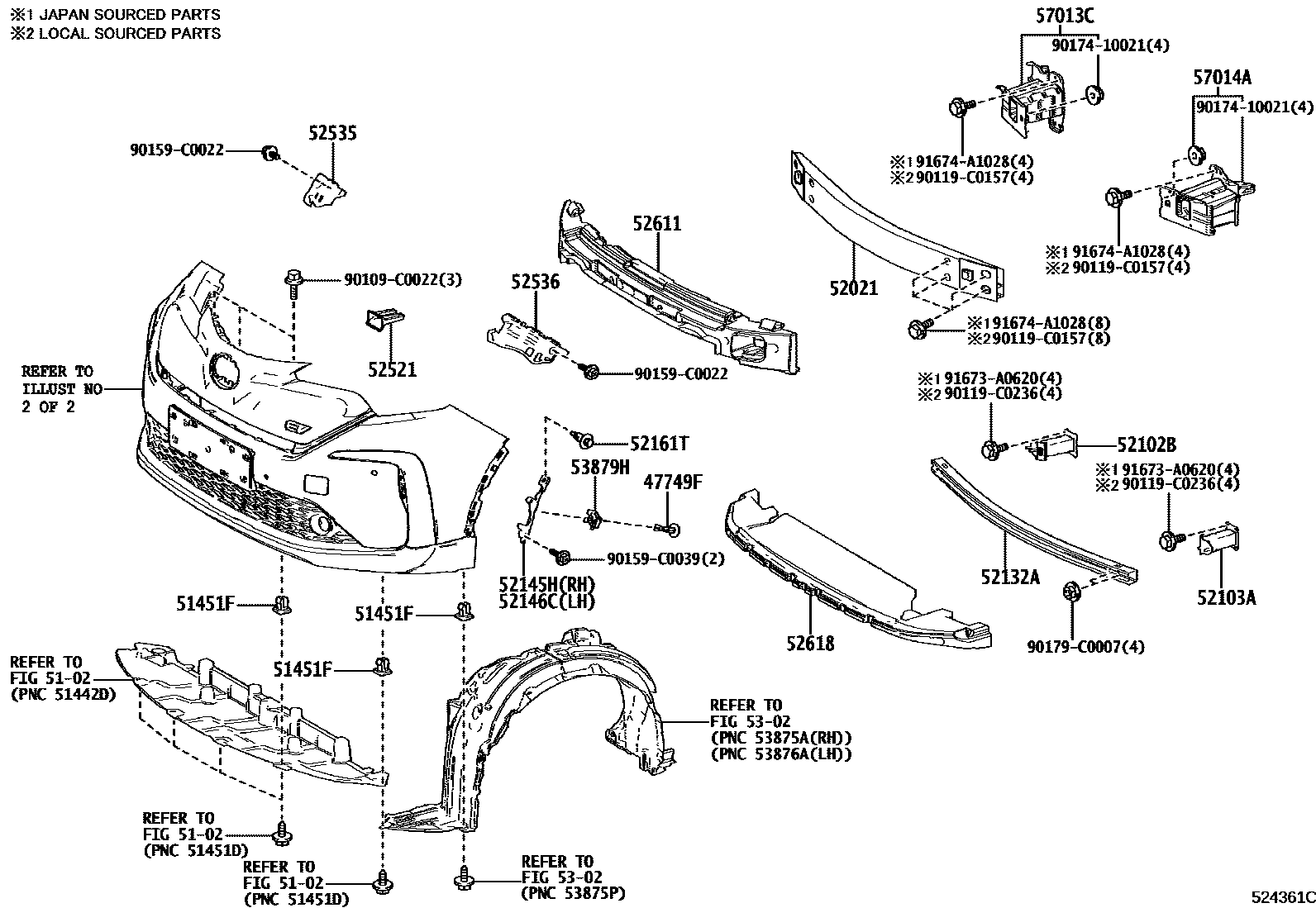

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

47749FCLIP, PIN HOLD

main47749-0F010iKPX10202005

(L)

main47749-50090iKPX10202005

(J)

5102

51451FGROMMET, NO.1

main90189-C0020iKPX10202005-202006

main90189-C0024iKPX10202007

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-F4020iKPX10202005

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-F4020iKPX10202005

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52102-F4020iKPX10202005

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-F4060iKPX10202005

52145HSTAY, FRONT BUMPER SIDE, RH

main52145-F4080iKPX10202005

52146CSTAY, FRONT BUMPER SIDE, LH

main52146-F4080iKPX10202005

52161TPIECE, FRONT BUMPER

main52161-02040iKPX10202005

(L)

main52161-16010iKPX10202005

(J)

sub52161-0K040

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-F4060iKPX10202005

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-F4040iKPX10202005

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-F4040iKPX10202005

52611ABSORBER, FRONT BUMPER ENERGY

main52611-F4060iKPX10202005

52618ABSORBER, FRONT BUMPER, LOWER

main52618-F4060iKPX10202005

5302

53879HRETAINER, FRONT FENDER LINER

main53879-30050iKPX10202005

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-F4070iKPX10202005

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-F4070iKPX10202005

90109C0022

main90109-C0022

90119C0157

main90119-C0157

90119C0236

main90119-C0236

90159C0022

main90159-C0022

90159C0039

main90159-C0039

9017410021

main90174-10021

90179C0007

main90179-C0007

91673A0620

main91673-A0620

91674A1028

main91674-A1028

28 parts on this diagram · 2 diagrams in section
