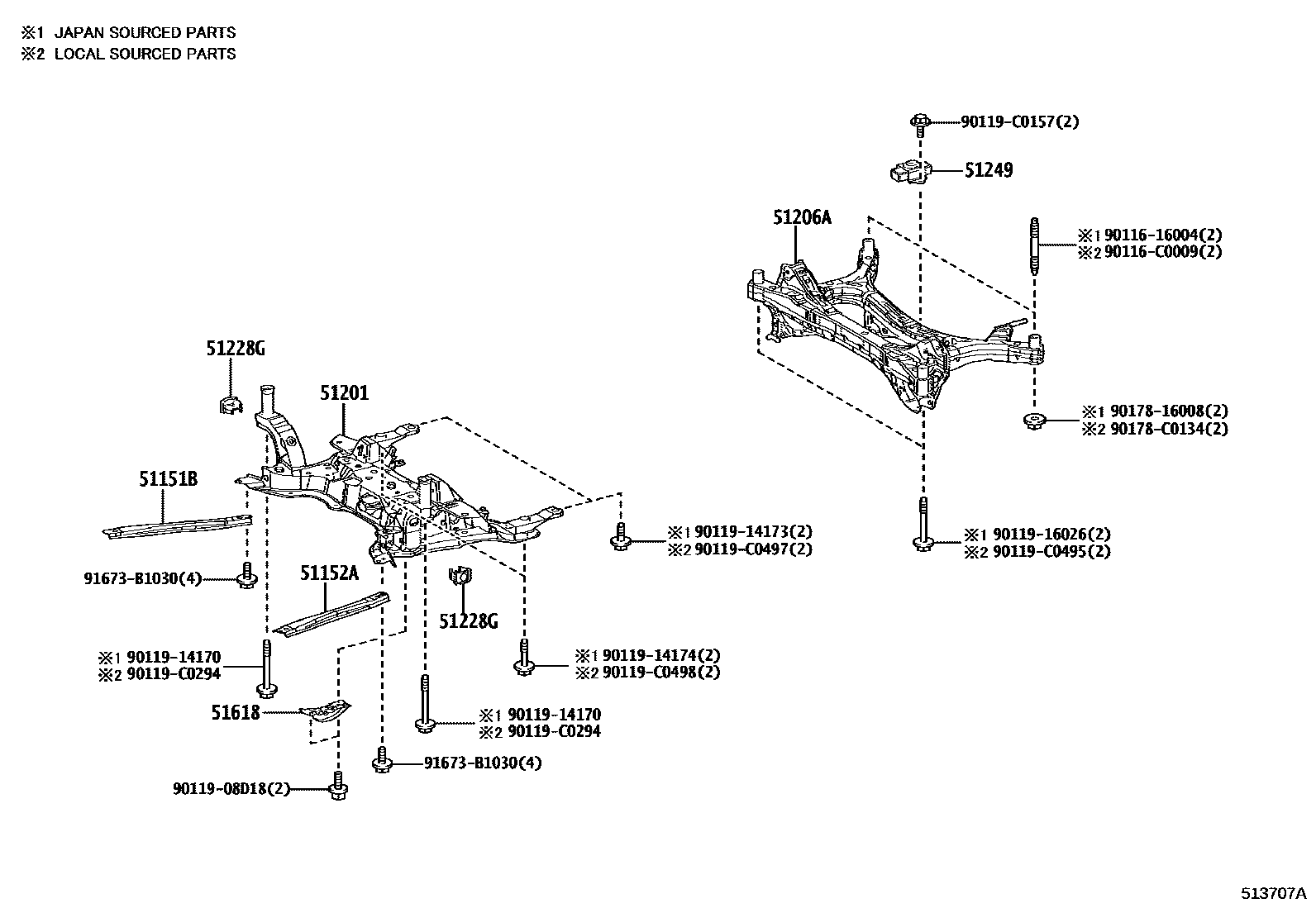

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

51151BREINFORCEMENT, SIDE RAIL, NO.1 RH

main51151-F4030iKPX10202005

51152AREINFORCEMENT, SIDE RAIL, NO.1 LH

main51151-F4030iKPX10202005

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-F4061iKPX10202005

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-F4070iKPX10202005

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-F4040×2iKPX10202005

51249DAMPER, REAR SUSPENSION MEMBER

main51249-F4030iKPX10202005

51618GUARD, FRONT DIFFERENTIAL SUPPORT, LH

main51618-F4020iKPX10202005

9011616004

main90116-16004

90116C0009

main90116-C0009

9011908D18

main90119-08D18

9011914170

main90119-14170

9011914173

main90119-14173

9011914174

main90119-14174

9011916026

main90119-16026

90119C0157

main90119-C0157

90119C0294

main90119-C0294

90119C0495

main90119-C0495

90119C0497

main90119-C0497

90119C0498

main90119-C0498

9017816008

main90178-16008

90178C0134

main90178-C0134

91673B1030

main91673-B1030

22 parts on this diagram · 2 diagrams in section
