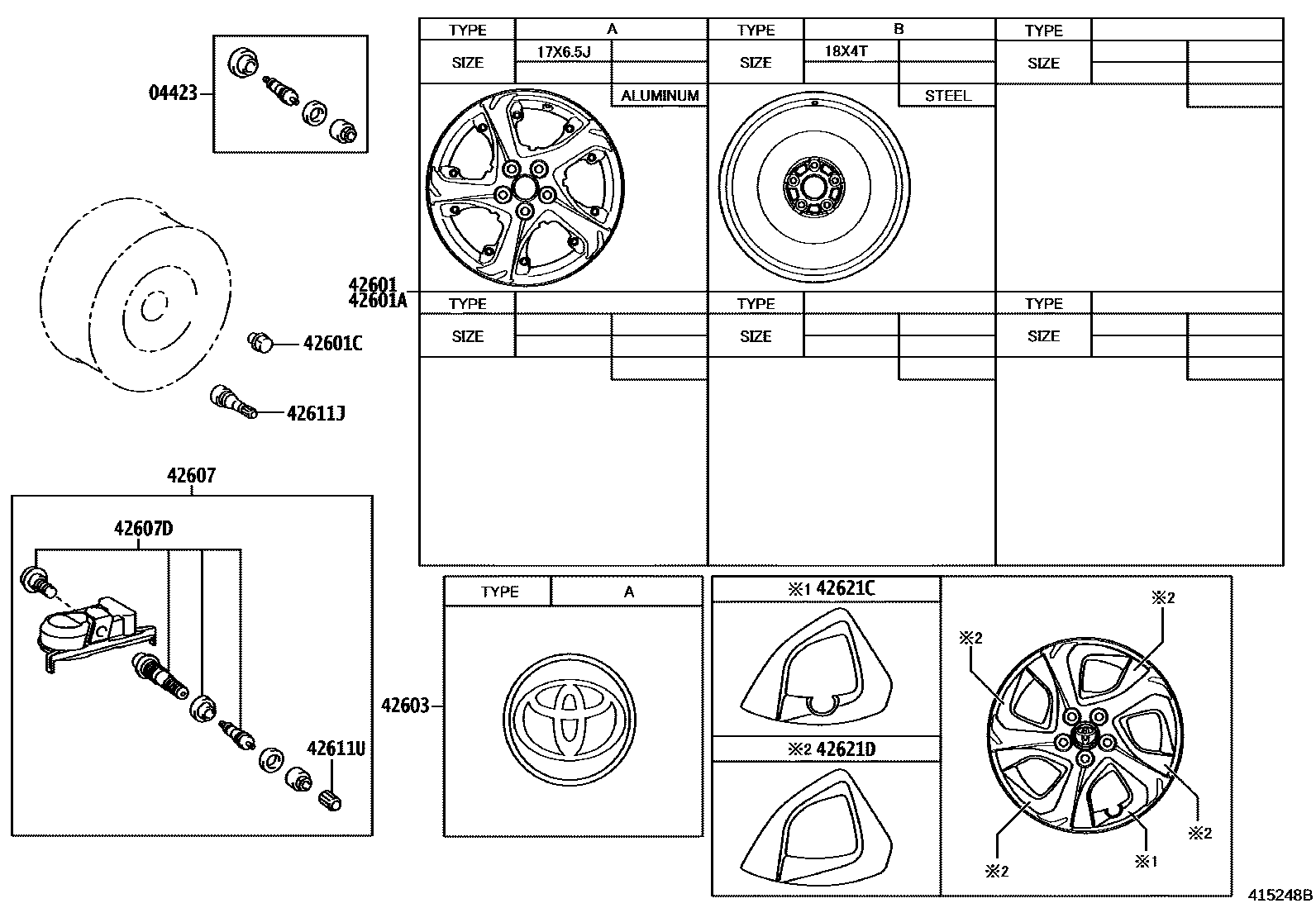

DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0N010iKPX10202005

42601WHEEL, DISC

main42611-F4180iKPX10202005

17X6.5J,#,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-0N111iKPX10202005

18X4T,SPARE TIRE-T145/70D18 STEEL,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-C1001iKPX10202005

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-02320iKPX10202005

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-02090iKPX10202005

42607DVALVE, TIRE PRESSURE MONITOR

main90942-C5003iKPX10202005

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iKPX10202005

SPARE TIRE-T145/70D18 STEEL

42611UCAP, TIRE VALVE

main90942-C5001iKPX10202005

42621CCAP, WHEEL, W/VALVE HOLE

main42602-F4070iKPX10202005

42621DCAP, WHEEL, W/O VALVE HOLE

main42602-F4050iKPX10202005

11 parts on this diagram · 2 diagrams in section
