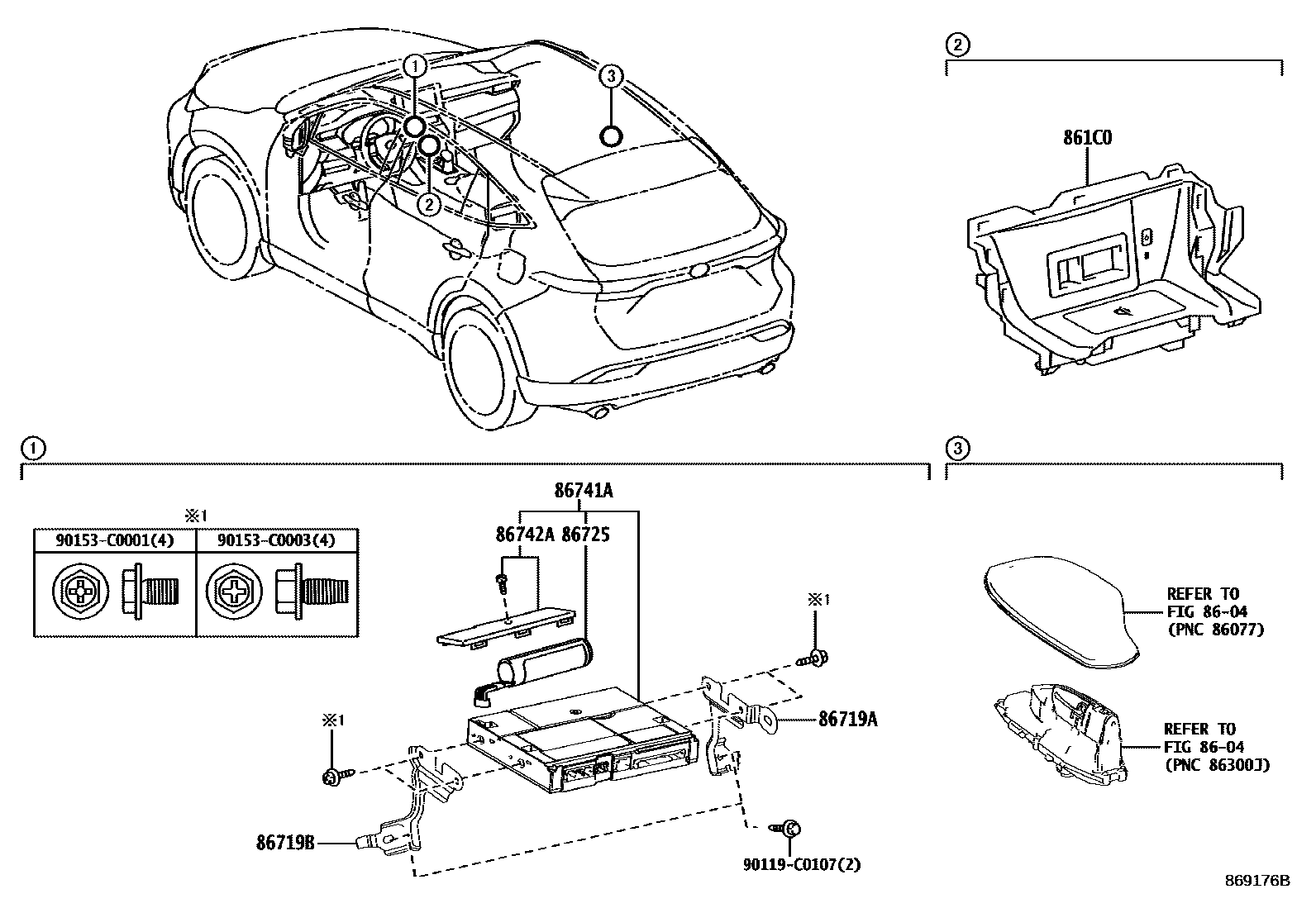

TELEPHONE & MAYDAY

8604

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-YY040

86719ABRACKET, TELEPHONE NO.1

main86719-0E180iAXUH8#,MXUA8#202203

86719BBRACKET, TELEPHONE NO.2

main86719-0E190iAXUH8#,MXUA8#202203

86725BATTERY, MOBILEPHONE

main86725-F4010iAXUH8#,MXUA8#202203

86741ATRANSCEIVER, TELEMATICS

main86741-06100iAXUH8#,MXUA8#202203-202303

main86741-08020iAXUH8#,MXUA8#..M,S202304-202406

main86741-0R070iAXUH8#,MXUA8#202406

main86741-F4060iAXUH80,MXUA80..X202304-202406

86742ACOVER, TRANSCEIVER

main86742-0A010iAXUH80,MXUA80..X202304

main86742-F4010iAXUH80,MXUA80..X202203-202406

sub86742-0A010

90119C0107

main90119-C0107

90153C0001

main90153-C0001

90153C0003

main90153-C0003

10 parts on this diagram · 1 diagram in section
