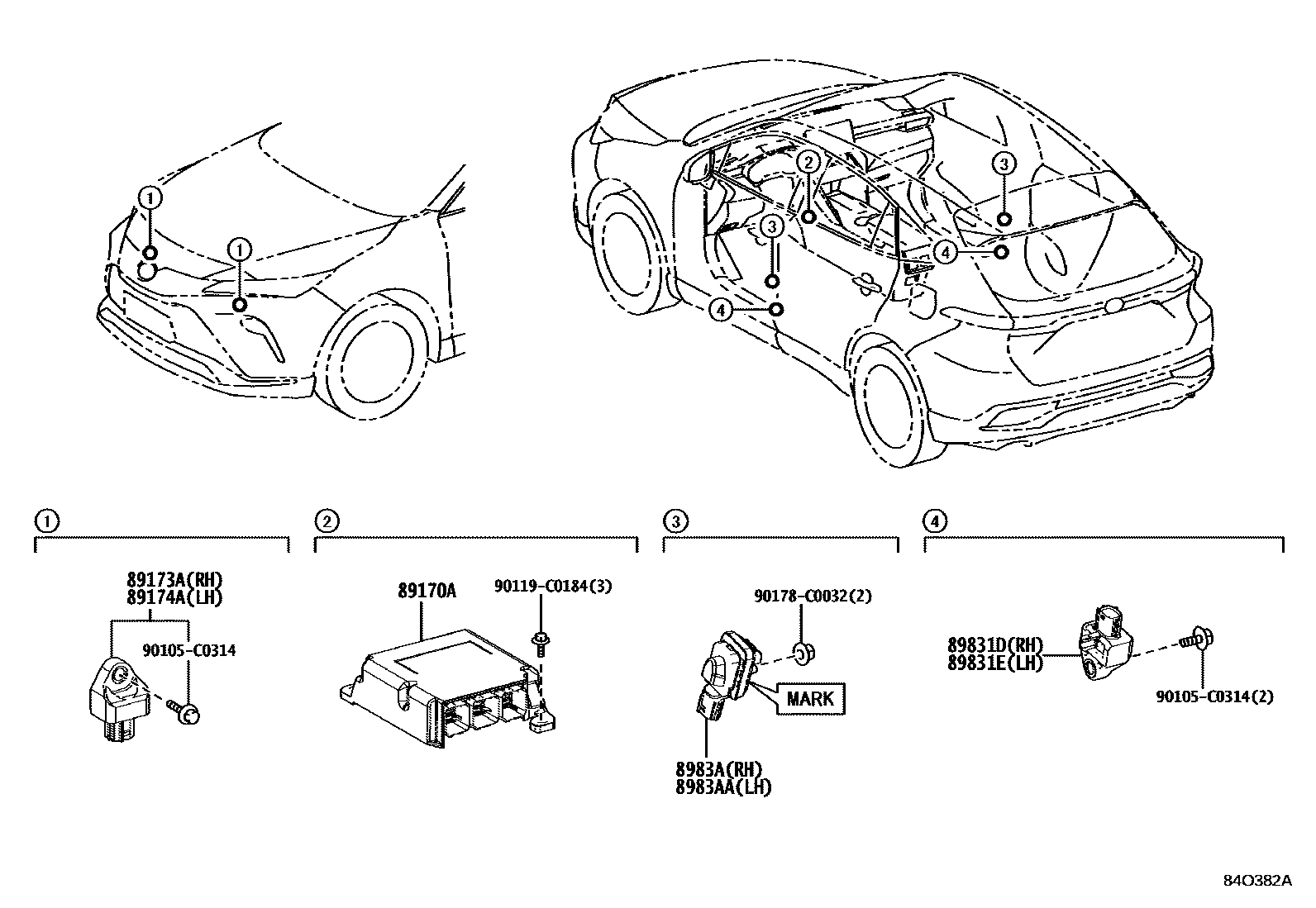

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-0E350iMXUA8#202203

*614

main89170-0E360iAXUH8#202203

*614

89173ASENSOR, AIRBAG, FRONT RH

main89173-09888iAXUH8#,MXUA8#202203

89174ASENSOR, AIRBAG, FRONT LH

main89173-09888iAXUH8#,MXUA8#202203

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-0R170iAXUH8#,MXUA8#202203

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-0R170iAXUH8#,MXUA8#202203

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-02070iAXUH8#,MXUA8#202312

MARK 8983A-02070

main8983A-0R021iAXUH8#,MXUA8#202203-202312

main8983A-0R021iAXUH8#,MXUA8#202312

MARK 8983A-0R021

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-02070iAXUH8#,MXUA8#202312

MARK 8983A-02070

main8983A-0R021iAXUH8#,MXUA8#202203-202312

main8983A-0R021iAXUH8#,MXUA8#202312

MARK 8983A-0R021

90105C0314

main90105-C0314

90119C0184

main90119-C0184

90178C0032

main90178-C0032

10 parts on this diagram · 1 diagram in section
