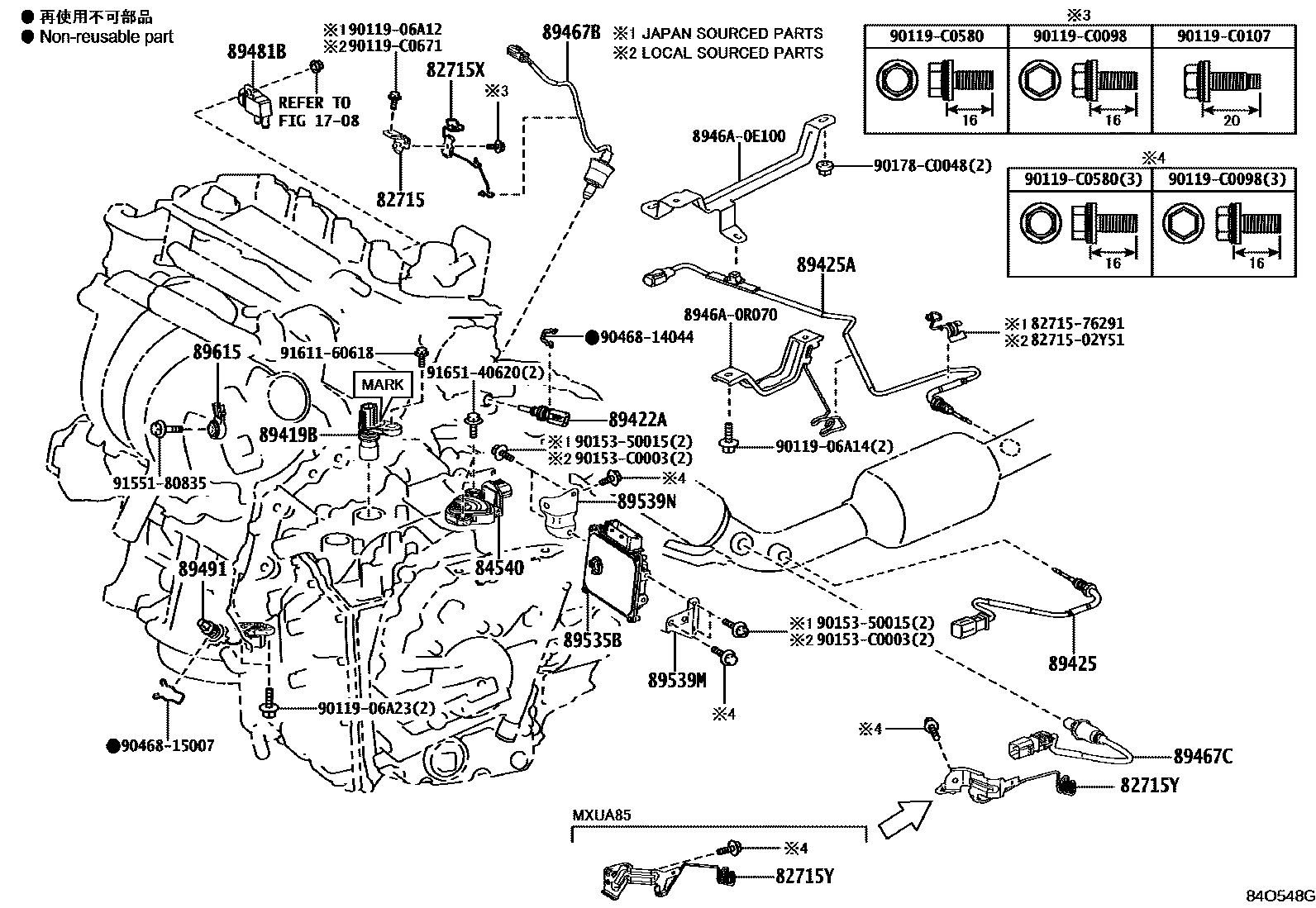

82715BRACKET,WIRING HARNESS CLAMP

main82715-12X50iMXUA8#202203

(J)

main82715-F4650iMXUA8#202203

(L)

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-F4340iMXUA8#202203

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-0R830iAXUH8#,MXUA80202203-202304

main82715-0R840iMXUA85202203-202304

main8946A-0R050iAXUH8#,MXUA80202304

main8946A-0R060iMXUA85202304

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMXUA8#202203-202304

main89451-42010iMXUA8#202304

89419BSENSOR, SHIFT STROKE

main89419-12011iMXUA80202203-202304

MARK=CS1

main89419-K2010iMXUA80202203-202304

MARK=HK-82

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXUH8#,MXUA8#202203

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-0E030iAXUH8#,MXUA8#202304

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-0E040iAXUH8#202304

main89425-0R010iMXUA8#202304

89467BSENSOR, AIR FUEL RATIO

main89467-06270iAXUH8#202203-202303

main89467-0R160iMXUA8#202303

main89467-0R190iAXUH8#202303

main89467-F4010iMXUA8#202203-202303

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-0R130iAXUH8#,MXUA8#202203-202304

main89467-0R170iAXUH8#,MXUA8#202304

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-0E010iMXUA8#202304

(L)

main89481-48010iMXUA8#202304

(J)

main89481-K0010iAXUH8#202304

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iAXUH8#,MXUA8#202203-202204

sub89491-33052

main89491-33052iMXUA8#202205-202304

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-0E010iMXUA80202203-202304

*614

main89535-0E020iMXUA85202203-202304

*614

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-0R010iMXUA8#202203-202208

main89539-0R010iMXUA8#202208-202304

(L)

main89539-42080iMXUA8#202208-202304

(J)

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-0R020iMXUA8#202203-202208

main89539-0R020iMXUA8#202208-202304

(L)

main89539-42090iMXUA8#202208-202304

(J)

89615SENSOR, KNOCK CONTROL

main89615-20090iAXUH8#,MXUA8#202203

8271502Y51BRACKET,WIRING HARNESS CLAMP

main82715-02Y51

8271576291BRACKET,WIRING HARNESS CLAMP

main82715-76291

8946A0E100BRACKET, EXHAUST SENSOR CLAMP

main8946A-0E100

8946A0R070BRACKET, EXHAUST SENSOR CLAMP

main8946A-0R070

9011906A12

main90119-06A12

9011906A14

main90119-06A14

9011906A23

main90119-06A23

90119C0098

main90119-C0098

90119C0107

main90119-C0107

90119C0580

main90119-C0580

90119C0671

main90119-C0671

9015350015

main90153-50015

90153C0003

main90153-C0003

90178C0048

main90178-C0048

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9161160618

main91611-60618

9165140620

main91651-40620

36 parts on this diagram · 14 diagrams in section
