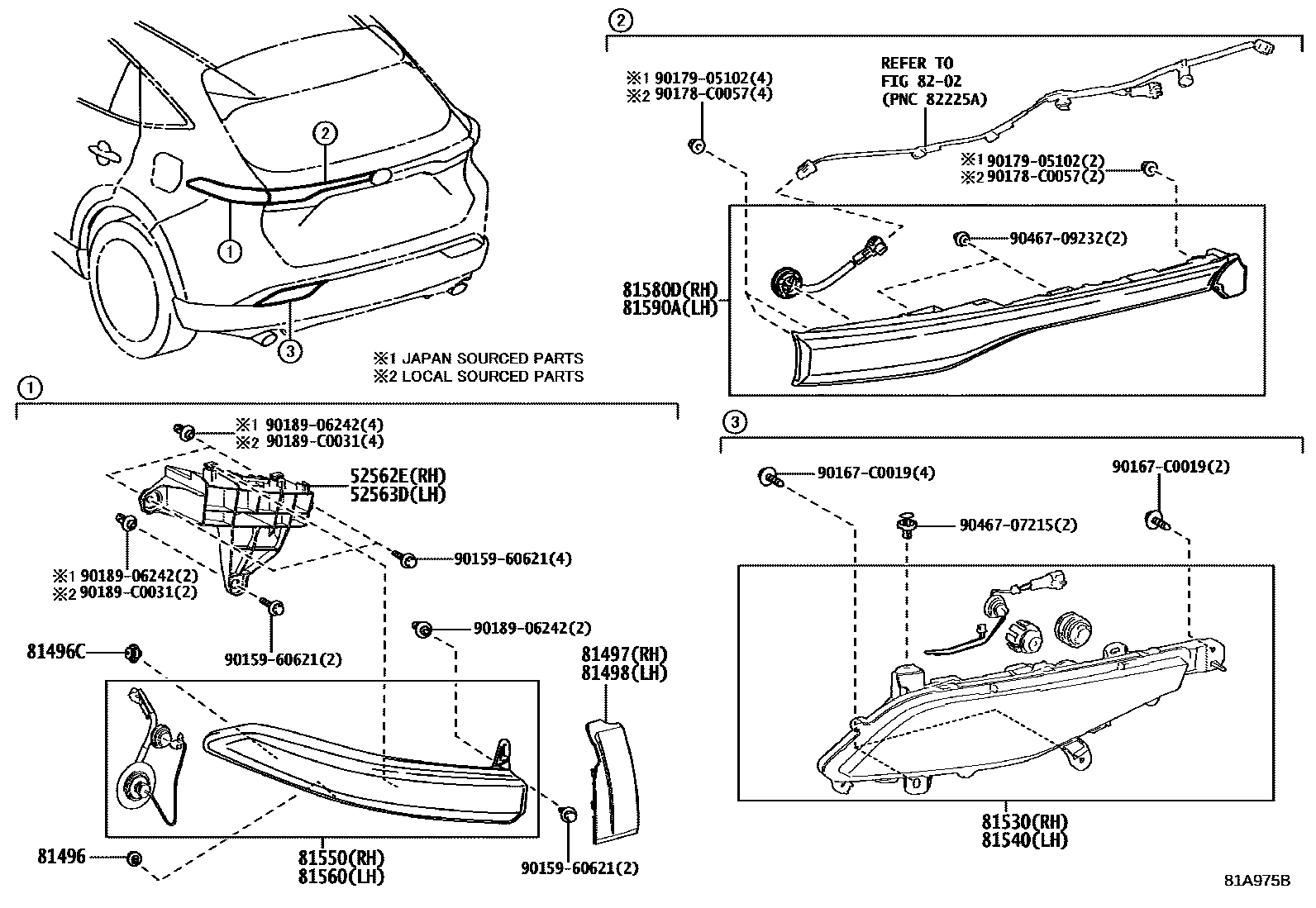

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-0E050iAXUH8#,MXUA8#202203

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-0E050iAXUH8#,MXUA8#202203

81496GUIDE, REAR COMBINATION LAMP

main81496-0D030iAXUH8#,MXUA8#202203

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main90467-C0019iAXUH8#,MXUA8#202203

81497COVER, REAR COMBINATION LAMP, RH

main81497-0E070iAXUH8#,MXUA8#202203

81498COVER, REAR COMBINATION LAMP, LH

main81498-0E070iAXUH8#,MXUA8#202203

81530LAMP ASSY, REAR TURN SIGNAL, RH

main81530-0E010iAXUH8#,MXUA8#202203-202409

sub81530-0E011

main81530-0E011iAXUH8#,MXUA8#202410

81540LAMP ASSY, REAR TURN SIGNAL, LH

main81540-0E010iAXUH8#,MXUA8#202203-202409

sub81540-0E011

main81540-0E011iAXUH8#,MXUA8#202410

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0E310iAXUH8#,MXUA8#202203

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0E310iAXUH8#,MXUA8#202203

81580DLAMP ASSY, REAR, RH

main81580-0E250iAXUH8#,MXUA8#202203

81590ALAMP ASSY, REAR, LH

main81590-0E250iAXUH8#,MXUA8#202203

8202

9015960621

main90159-60621

90167C0019

main90167-C0019

90178C0057

main90178-C0057

9017905102

main90179-05102

9018906242

main90189-06242

90189C0031

main90189-C0031

9046707215

main90467-07215

9046709232

main90467-09232

21 parts on this diagram · 1 diagram in section
