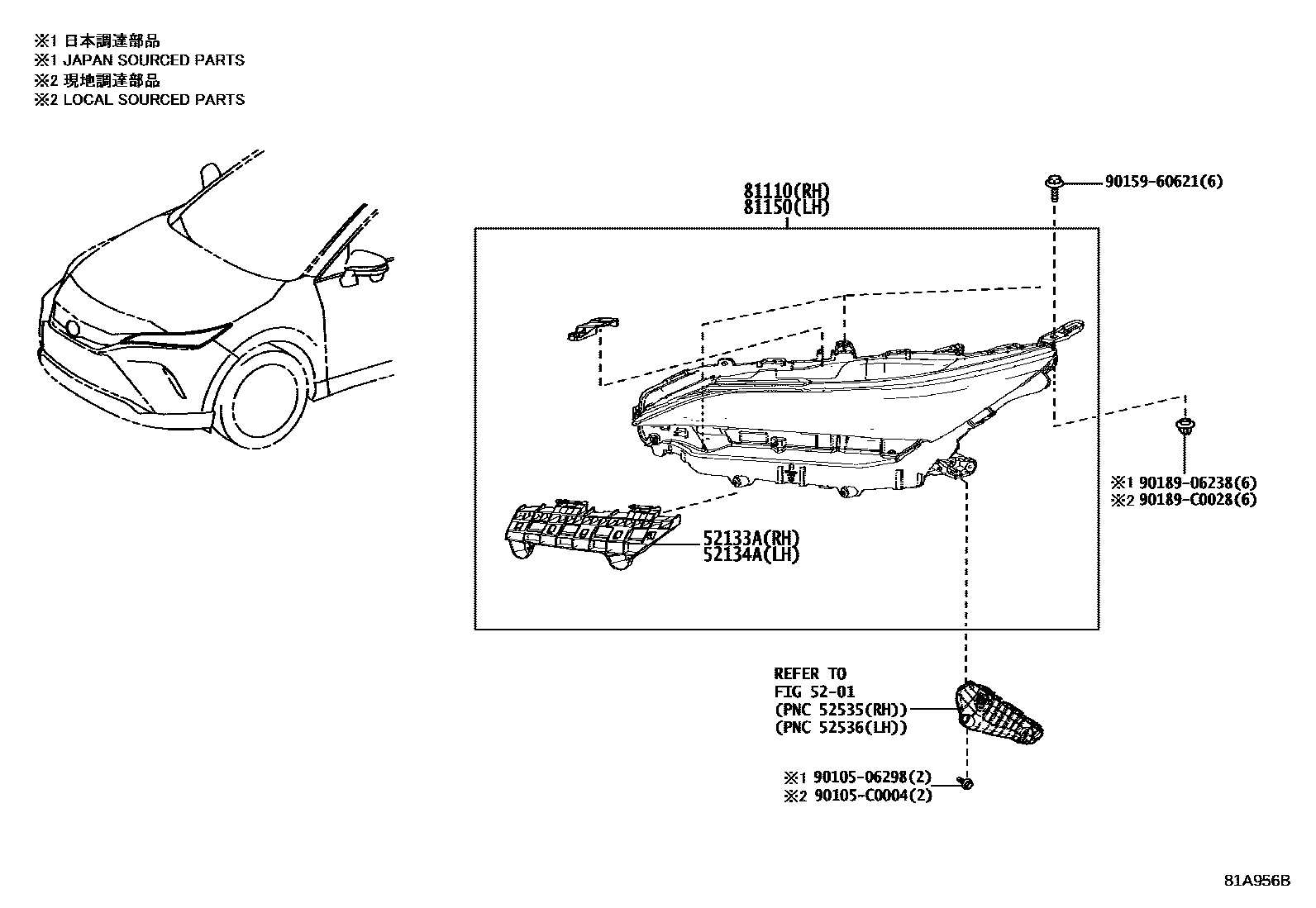

HEADLAMP

5201

52133ABRACKET, FRONT BUMPER, RH

main52133-0E070iAXUH8#,MXUA8#202203

52134ABRACKET, FRONT BUMPER, LH

main52134-0E080iAXUH8#,MXUA8#202203

81110HEADLAMP ASSY, RH

main81110-0E690iAXUH80,MXUA80..X202203

main81110-0E700iAXUH8#,MXUA8#..M,S202203-202210

sub81110-0E701

main81110-0E701iAXUH8#,MXUA8#..M,S202211

81150HEADLAMP ASSY, LH

main81150-0E690iAXUH80,MXUA80..X202203

main81150-0E700iAXUH8#,MXUA8#..M,S202203-202210

sub81150-0E701

main81150-0E701iAXUH8#,MXUA8#..M,S202211

9010506298

main90105-06298

90105C0004

main90105-C0004

9015960621

main90159-60621

9018906238

main90189-06238

90189C0028

main90189-C0028

10 parts on this diagram · 1 diagram in section
