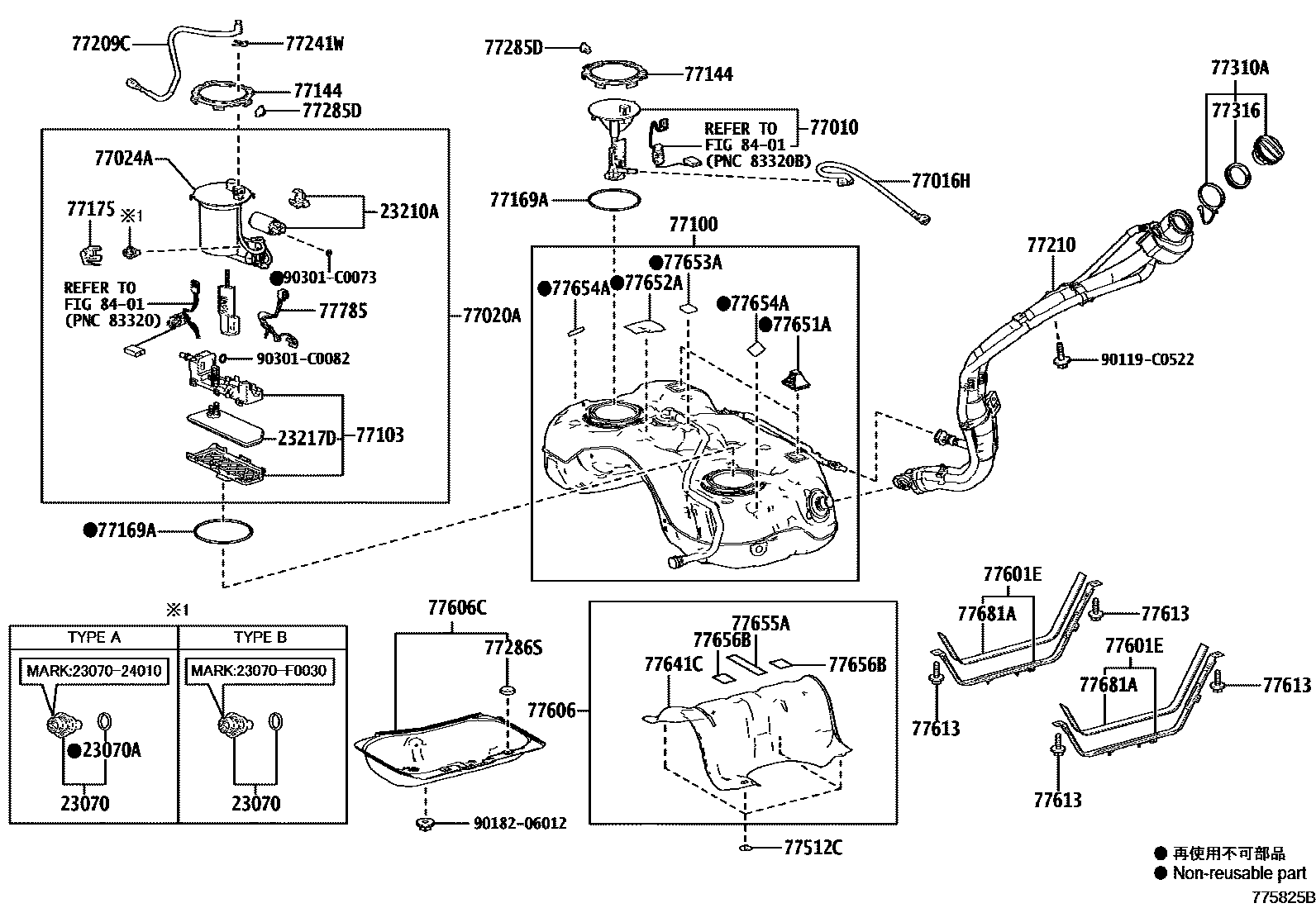

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1FUEL LID OPENER 0006 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-24010iA25DFXS,M20CFKS..AXUH8#,MXUA8#202203

TYPE A:REFER ILLUST.

main23070-F0030iA25DFXS,M20CFKS..AXUH8#,MXUA8#202203

TYPE B:REFER ILLUST.

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iA25DFXS,M20CFKS..AXUH8#,MXUA8#202203

23210APUMP ASSY, FUEL W/MOTOR & BRACKET

main23210-F0020iA25DFXS,M20CFKS..AXUH8#,MXUA8#202203

23217DFILTER, FUEL PUMP

main23217-24020iM20CFKS..MXUA8#202203

(J)

77010TUBE ASSY, FUEL TANK VENT

main77010-0R030iMXUA8#202203

77016HTUBE SUB-ASSY, FUEL RETURN VENT

main77016-0R030iMXUA8#202203

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0R100iMXUA8#202203

main77020-0R111iAXUH8#202203

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0R070iAXUH8#202203

main77024-0R090iMXUA8#202203

77100TANK ASSY, FUEL

main77001-0R150iMXUA8#202203

main77001-0R160iAXUH8#202203

77103SUB-TANK SUB-ASSY, FUEL

main77103-0A020iAXUH8#202203

main77103-0R080iMXUA8#202203

77144RETAINER, FUEL PUMP GAUGE

main77144-F4020iAXUH8#202203

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0R050iAXUH8#202203

77175SUPPORT, FUEL SUCTION, NO.2

main77175-F4020iAXUH8#,MXUA8#202203

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0R080iMXUA8#202203

main77209-0R100iAXUH8#202203

77210PIPE ASSY, FUEL TANK FILLER

main77210-0E290iMXUA8#202203

main77210-0E300iAXUH8#202203

77241WCLIP, TUBE JOINT

main77241-02020iMXUA8#202203

(L)

main77241-33011iMXUA8#202203

(J)

77285DCLAMP, FUEL TUBE, NO.1

main77285-0R170iAXUH8#,MXUA8#202203

main77285-0R310iMXUA8#202203

(L)

main77285-30350iMXUA8#202203

(J)

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iMXUA8#202203-202206

main77286-12110iMXUA8#202206

(J)

main77286-F4040iMXUA8#202206

(L)

77310ACAP ASSY, FUEL TANK

main77300-06110iAXUH8#202203

main77300-0R010iMXUA8#202203

77316GASKET, FUEL TANK CAP

main77316-0F020iMXUA8#202203

main77316-75020iAXUH8#202203

77512CBRACKET, FUEL TANK

main77512-06040iMXUA8#202203

(L)

main77512-35140iMXUA8#202203

(J)

77601EBAND SUB-ASSY, FUEL TANK

main77601-0R080iMXUA8#202203

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0R070iMXUA8#202203

main77606-0R130iAXUH8#202203

(L)

main77606-42050iAXUH8#202203

(J)

77606CPROTECTOR, FUEL TANK, NO.2

main77606-0R090iMXUA8#202203

77613BOLT, FUEL TANK BAND SET

main90119-10A05iAXUH8#202203

77641CPROTECTOR ASSY, FUEL TANK

main77641-0R110iMXUA8#202203

77651ACUSHION, FUEL TANK, NO.1

main77651-06190iMXUA8#202203

77652ACUSHION, FUEL TANK, NO.2

main77652-12100iMXUA8#202203

main77652-42040iAXUH8#202203

77653ACUSHION, FUEL TANK, NO.3

main77652-0R170iMXUA8#202203

77654ACUSHION, FUEL TANK, NO.4

main77652-0R160iMXUA8#202203

77655ACUSHION, FUEL TANK, NO.5

main77651-0R060iMXUA8#202203

77656BCUSHION, FUEL TANK, NO.6

main77652-12100iMXUA8#202203

main77656-06050iAXUH8#202203

77681ASEAT, FUEL TANK BAND

main77681-0R120iAXUH8#202203

main77682-0R060iMXUA8#202203

77785HARNESS, FUEL PUMP

main77785-06190iAXUH8#,MXUA8#202203

8401

90119C0522

main90119-C0522

9018206012

main90182-06012

90301C0073

main90301-C0073

90301C0082

main90301-C0082

39 parts on this diagram · 6 diagrams in section
