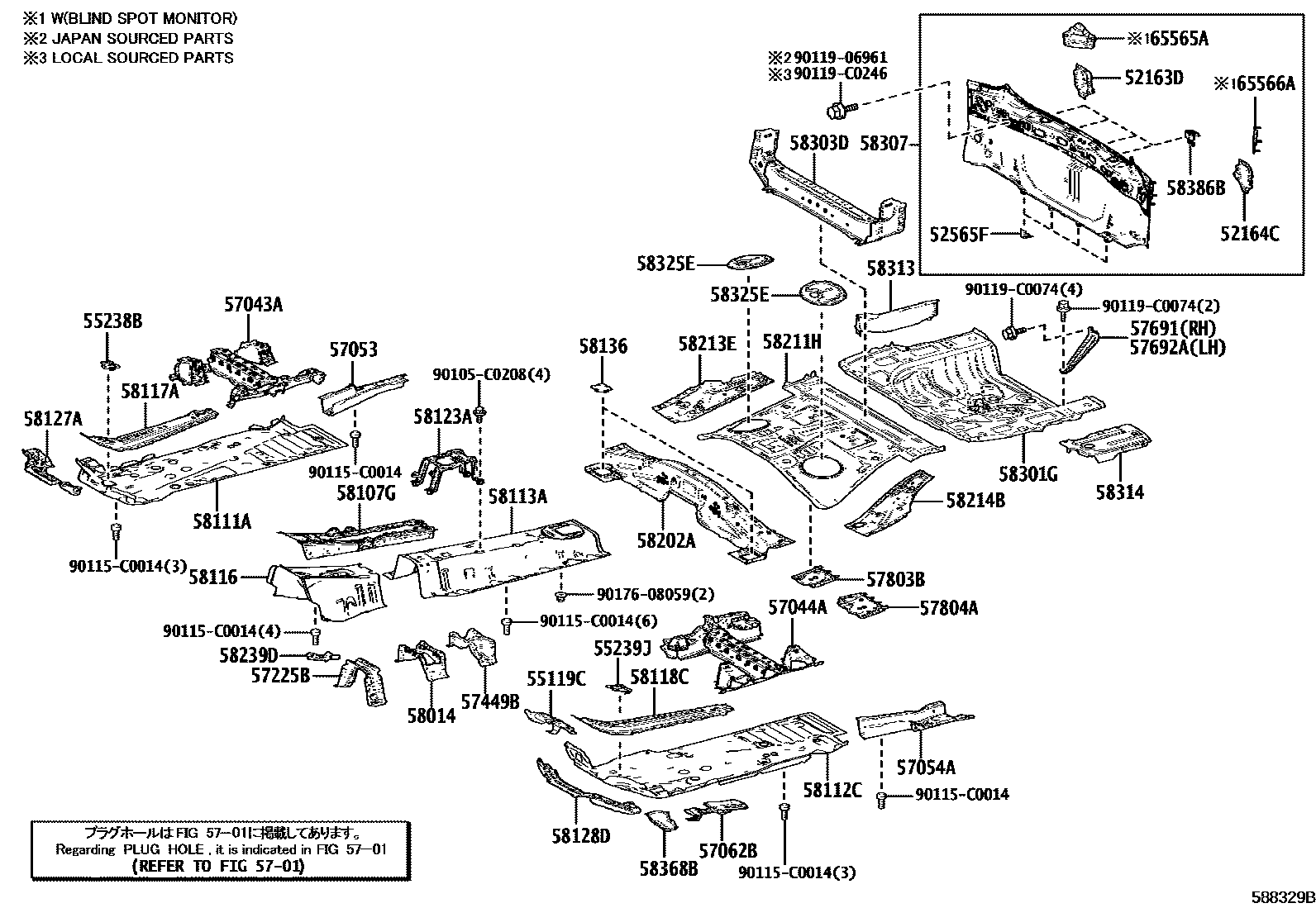

FLOOR PAN & LOWER BACK PANEL
52163DPLATE, REAR BUMPER REINFORCEMENT, RH
52164CPLATE, REAR BUMPER REINFORCEMENT, LH
52565FRETAINER, REAR BUMPER, LOWER
55119CBRACKET, CLUTCH BOOSTER
55238BPLATE, DASH PANEL INSULATOR, LOWER RH
55239JPLATE, DASH PANEL INSULATOR, LOWER LH
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57062BBRACKET SUB-ASSY, FUEL TANK SUPPORT, LH
57225BBRACE, FRONT MOUNTING BRACKET
57449BRETAINER, CENTER FLOOR CROSSMEMBER, LH
57691BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH
57692ABRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH
57803BREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH
57804AREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH
58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
58107GREINFORCE SUB-ASSY, PARKING BRAKE BASE
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58116PLATE, SHIFT CABLE MOUNTING
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
58123ASUPPORT, SHIFT & SELECT LEVER
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH
58136COVER, FRONT FLOOR HOLE
58211HPAN, CENTER FLOOR
(L)
(J)
58213EPANEL, SEAT FLOOR SIDE, RH
58239DBRACKET, CABLE CLAMP
58303DPANEL SUB-ASSY, REAR FLOOR PARTITION
58307PANEL SUB-ASSY, BODY LOWER BACK
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58368BBRACKET, FUEL TUBE, NO.2
58386BBRACKET, REAR BUMPER COVER, NO.2
65565APATCH, SIDE PANEL REAR END, RH
65566APATCH, SIDE PANEL REAR END, LH
90105C0208
main90105-C0208
90115C0014
main90115-C0014
9011906961
90119C0074
main90119-C0074
90119C0246
main90119-C0246
9017608059
51 parts on this diagram · 2 diagrams in section
