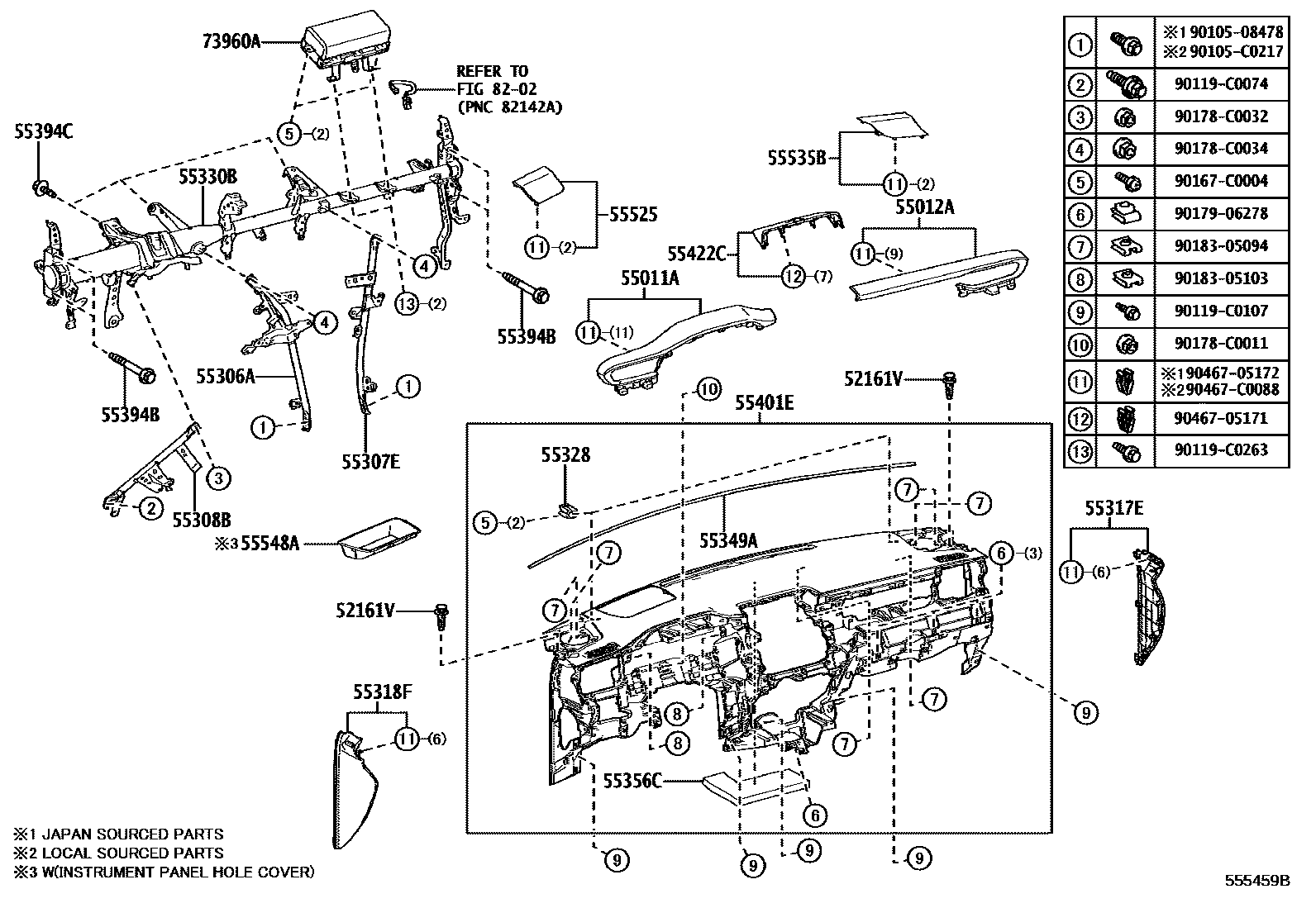

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-02040iAXUH8#,MXUA8#202203

55011AGARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1

main55011-0E080-C0iAXUH8#,MXUA8#..M,S202203

BLACK,TRIM1#,2#

main55011-0E080-C0iAXUH8#,MXUA8#..M,S202203

BLACK,TRIM1#,2#,4#

55012AGARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2

main55012-0E080-C0iAXUH8#,MXUA8#..M,S202203

BLACK,TRIM1#,2#

main55012-0E080-C0iAXUH80,MXUA80..X202203

BLACK,TRIM1#,2#,4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0E150iAXUH8#,MXUA8#202203

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0E150iAXUH8#,MXUA8#202203

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-0E130iAXUH8#,MXUA8#202203

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-0E190-C0iAXUH80,MXUA80..X202203

BLACK,TRIM1#,2#,4#

main55317-0E190-C0iAXUH8#,MXUA8#..M,S202203

BLACK,TRIM1#,2#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-0E150-C0iAXUH8#,MXUA8#..M,S202203

BLACK,TRIM1#,2#,4#

main55318-0E150-C0iAXUH80,MXUA80..X202203

BLACK,TRIM1#,2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-F4080iAXUH8#,MXUA8#202203

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0E260iAXUH80,MXUA80202203

main55330-0E270iAXUH85,MXUA85202203

CORE PACKAGE

55349ACUSHION, INSTRUMENT PANEL

main55349-0E080iAXUH8#,MXUA8#202203

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0E110iAXUH8#,MXUA8#202203

55394BBOLT, INSTRUMENT PANEL

main90105-C0318iAXUH8#,MXUA8#202203

55394CBOLT, INSTRUMENT PANEL

main90119-C0223iAXUH8#,MXUA8#202203

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-0E260-C0iAXUH80,MXUA80..X202203

BLACK,TRIM1#,2#

main55401-0E260-C0iAXUH80,MXUA80..X202203

BLACK,TRIM1#,2#,4#

main55401-0E270-C0iAXUH85,MXUA85202203

BLACK,TRIM1#,2#,4#

main55401-0E270-C0iAXUH85,MXUA85202203

CORE PACKAGE,BLACK,TRIM1#,2#,4#

55422CPANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER

main55422-0E110iAXUH8#,MXUA8#202203

55525COVER, SPEAKER HOLE, NO.1

main55525-0E040-C0iAXUH80,MXUA80..X202203

BLACK,TRIM1#,2#

main55525-0E040-C0iAXUH80,MXUA80..X202203

BLACK,TRIM1#,2#,4#

55535BCOVER, SPEAKER HOLE, NO.2

main55535-0E020-C0iAXUH80,MXUA80..X202203

BLACK,TRIM1#,2#

main55535-0E020-C0iAXUH80,MXUA80..X202203

BLACK,TRIM1#,2#,4#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-0E120iAXUH85,MXUA85202203

CORE PACKAGE

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0E160iAXUH8#,MXUA8#202203

8202

9010508478

main90105-08478¥80

90105C0217

main90105-C0217

90119C0074

main90119-C0074

90119C0107

main90119-C0107

90119C0263

main90119-C0263

90167C0004

main90167-C0004

90178C0011

main90178-C0011

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9017906278

main90179-06278¥100

9018305094

main90183-05094¥90

9018305103

main90183-05103¥90

9046705171

main90467-05171¥60

9046705172

main90467-05172¥60

90467C0088

main90467-C0088

36 parts on this diagram · 4 diagrams in section
