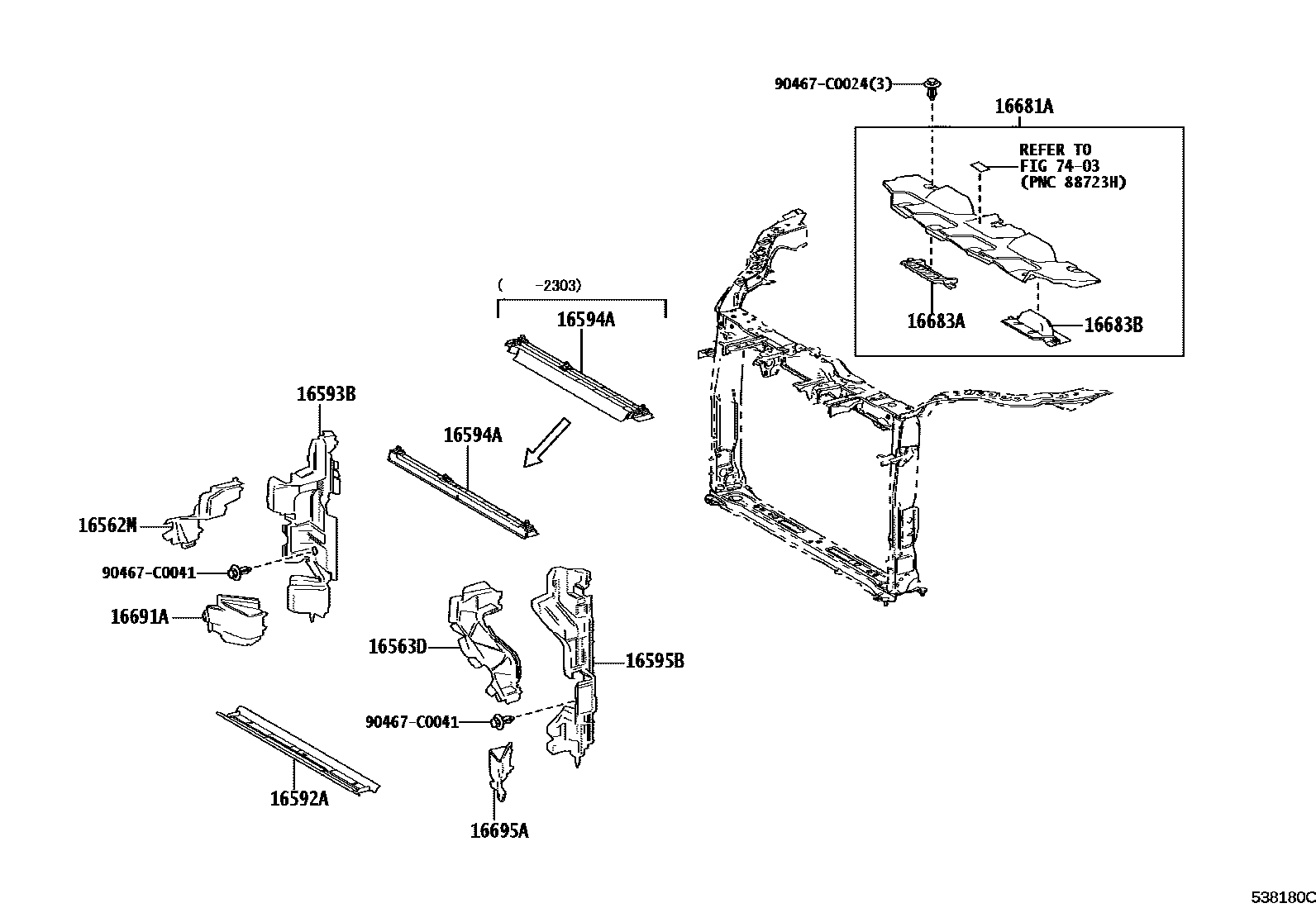

FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1AIRGUIDE & RADIATOR SUPPORT C0003 1RADIATOR SUPPORT & FENDER APR0004 1DASH PANEL

16562MSEAL, RADIATOR TO SUPPORT, NO.2

main16562-F2040iA25DFXS,M20CFKS..AXUH8#,MXUA8#202203

16563DSEAL, RADIATOR TO SUPPORT, NO.3

main16563-F0020iA25DFXS,M20CFKS..AXUH8#,MXUA8#202203

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F0020iM20CFKS..MXUA8#202203

main16592-F0140iA25DFXS..AXUH8#202203

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-F2170iA25DFXS,M20CFKS..AXUH8#,MXUA8#202203

16594AGUIDE, RADIATOR AIR, NO.2

main16594-F0110iA25DFXS,M20CFKS..AXUH8#,MXUA8#202203-202303

main16594-F0180iA25DFXS,M20CFKS..AXUH8#,MXUA8#202303

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-F2190iA25DFXS,M20CFKS..AXUH8#,MXUA8#202203

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-F0070iA25DFXS..AXUH8#202203

main16681-F2040iM20CFKS..MXUA8#202203

16683APLATE, RADIATOR LOWER AIR GUIDE

main16683-F2030iA25DFXS,M20CFKS..AXUH8#,MXUA8#202203

16683BPLATE, RADIATOR LOWER AIR GUIDE, NO.2

main16683-F2040iA25DFXS,M20CFKS..AXUH8#,MXUA8#202203

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-F2030iA25DFXS,M20CFKS..AXUH8#,MXUA8#202203

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-F2030iA25DFXS,M20CFKS..AXUH8#,MXUA8#202203

7403

90467C0024

main90467-C0024

90467C0041

main90467-C0041

14 parts on this diagram · 4 diagrams in section
