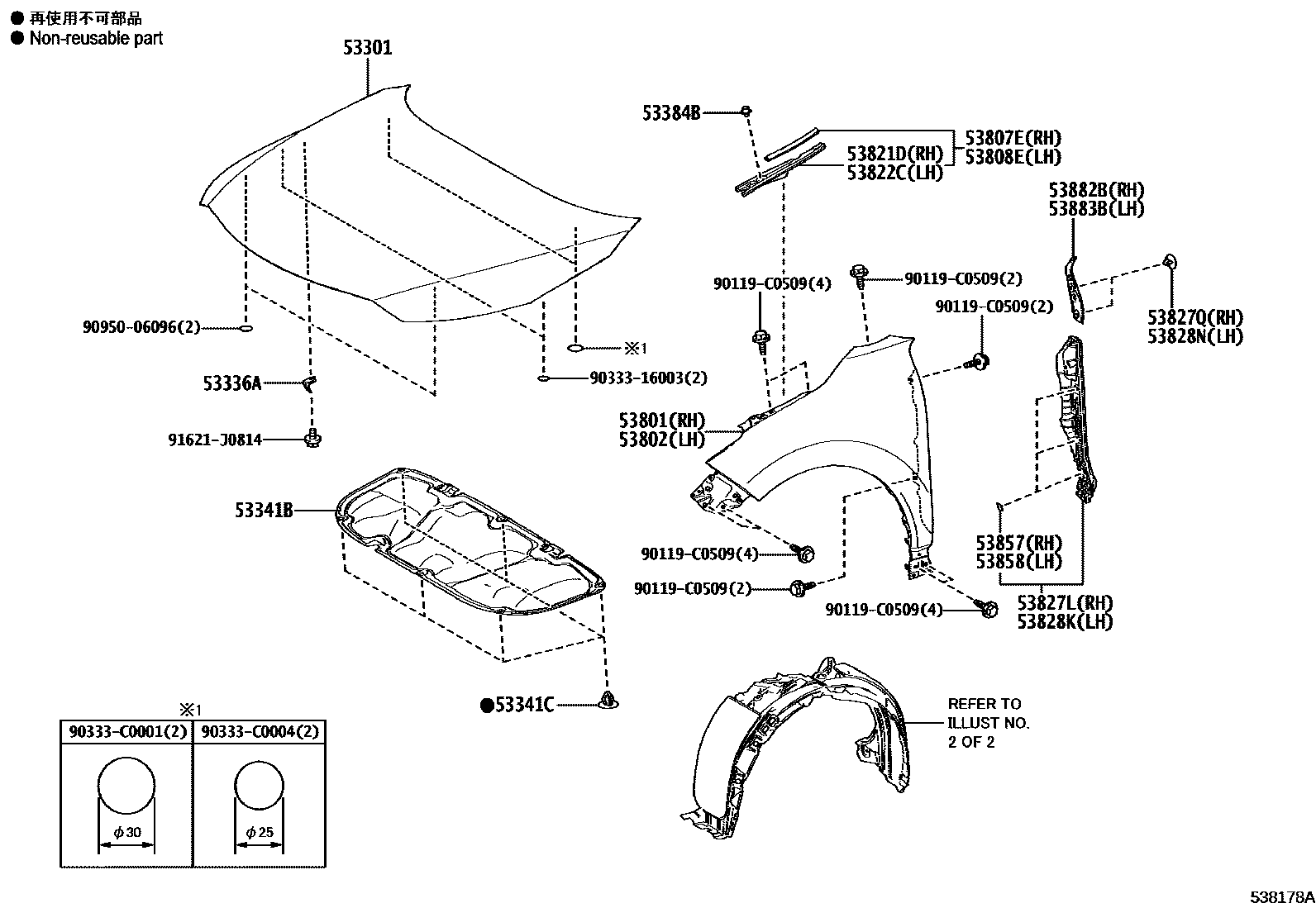

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-0E250iAXUH8#,MXUA8#202203-202207

sub53301-0E251

main53301-0E251iAXUH8#,MXUA8#202208

53336ABRACKET, HOOD STAY

main53336-0R030iAXUH8#,MXUA8#202203

53341BINSULATOR, HOOD

main53341-0E160iAXUH8#,MXUA8#202203

53341CCLIP(FOR HOOD INSULATOR)

main90467-C0006iAXUH8#,MXUA8#202203

53384BCUSHION, HOOD, CENTER

main53384-0E120iAXUH8#,MXUA8#202203

53801FENDER SUB-ASSY, FRONT RH

main53801-0E210iAXUH8#,MXUA8#202203

53802FENDER SUB-ASSY, FRONT LH

main53802-0E170iAXUH8#,MXUA8#202203

53807ESEAL SUB-ASSY, FENDER APRON MUDGUARD, RH

main53807-0E140iAXUH8#,MXUA8#202203

53808ESEAL SUB-ASSY, FENDER APRON MUDGUARD, LH

main53808-0E140iAXUH8#,MXUA8#202203

53821DPROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-0E130iAXUH8#,MXUA8#202203

53822CPROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53822-0E050iAXUH8#,MXUA8#202203

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0E090iAXUH8#,MXUA8#202203

53827QCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main90467-C0038iAXUH8#,MXUA8#202203

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0E090iAXUH8#,MXUA8#202203

53828NCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main90467-C0038iAXUH8#,MXUA8#202203

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iAXUH8#,MXUA8#202203

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iAXUH8#,MXUA8#202203

53882BSEAL, FRONT FENDER, RH

main53882-0E060iAXUH8#,MXUA8#202203

53883BSEAL, FRONT FENDER, LH

main53883-0E150iAXUH8#,MXUA8#202203

90119C0509

main90119-C0509

9033316003

main90333-16003

90333C0001

main90333-C0001

90333C0004

main90333-C0004

9095006096

main90950-06096

91621J0814

main91621-J0814

25 parts on this diagram · 2 diagrams in section
