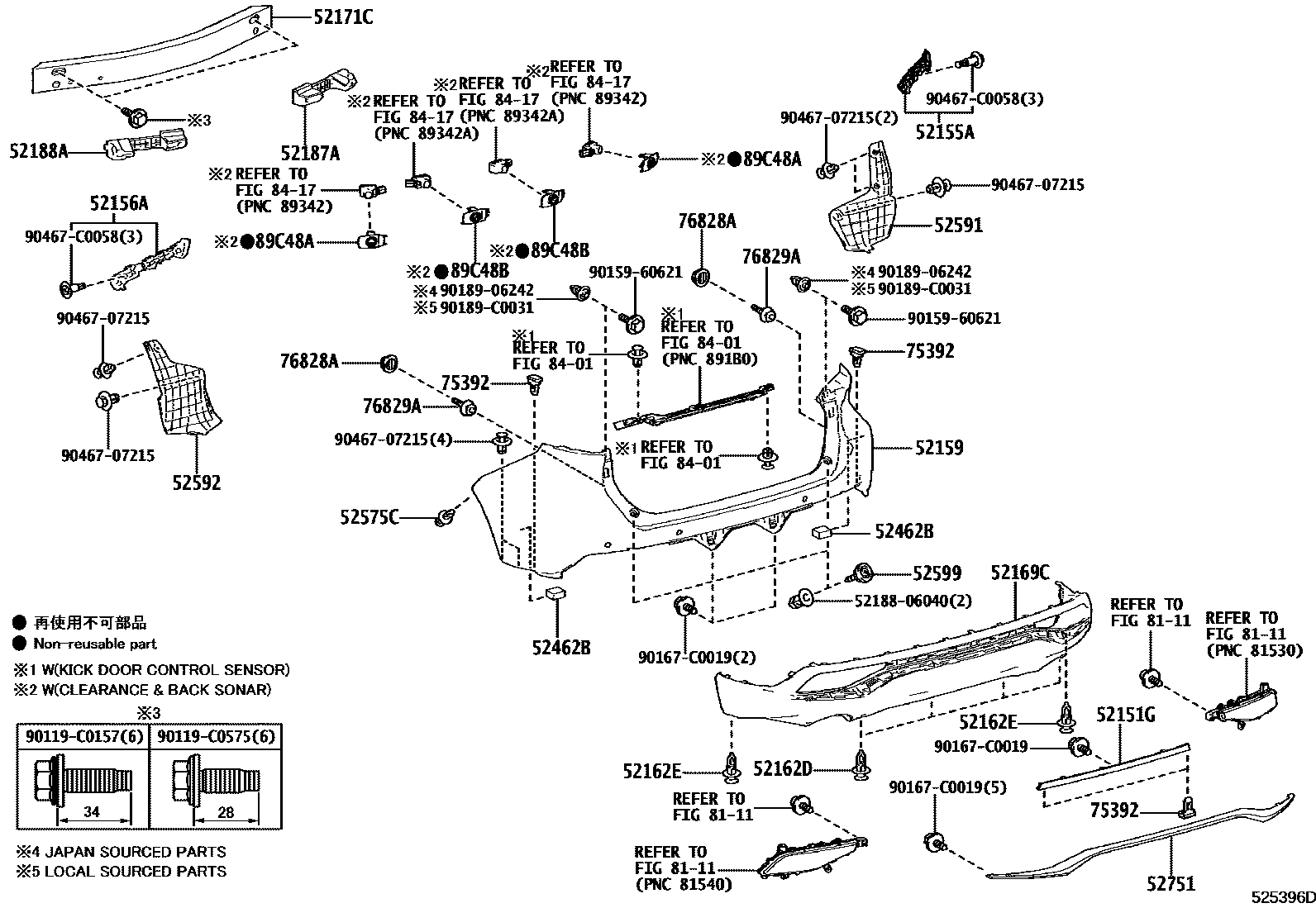

REAR BUMPER & BUMPER STAY
52151GEXTENSION, REAR BUMPER
NO PAINT REQ.
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
52162DPIECE, REAR BUMPER
52162EPIECE, REAR BUMPER
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
52171CREINFORCEMENT, REAR BUMPER
52187AREINFORCEMENT, REAR BUMPER ARM, RH
52188AREINFORCEMENT, REAR BUMPER ARM, LH
52462BPAD, REAR BUMPER
52575CCLIP, REAR BUMPER SIDE RETAINER
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52599STOPPER, REAR BUMPER, UPPER
52751MOULDING, REAR BUMPER
75392RETAINER, OUTSIDE MOULDING
76828ARETAINER, BACK DOOR GARNISH, NO.3
76829ARETAINER, BACK DOOR GARNISH
8111
8401
8417
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
PLATINUM WHITE PEARL MC.,089
METAL STREAM ME,1K0
BLACK MC.,209
EMOTIONAL RED 2,3U5
STEEL BLONDE ME.,4X1
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
PLATINUM WHITE PEARL MC.,089,RH
METAL STREAM ME,1K0,RH
BLACK MC.,209,RH
EMOTIONAL RED 2,3U5,RH
STEEL BLONDE ME.,4X1,RH
PLATINUM WHITE PEARL MC.,089,LH
METAL STREAM ME,1K0,LH
BLACK MC.,209,LH
EMOTIONAL RED 2,3U5,LH
STEEL BLONDE ME.,4X1,LH
5218806040CUSHION, REAR BUMPER ARM, LH
main52188-06040
90119C0157
main90119-C0157
90119C0575
main90119-C0575
9015960621
main90159-60621
90167C0019
main90167-C0019
9018906242
main90189-06242
90189C0031
main90189-C0031
9046707215
main90467-07215
90467C0058
main90467-C0058
33 parts on this diagram · 1 diagram in section
