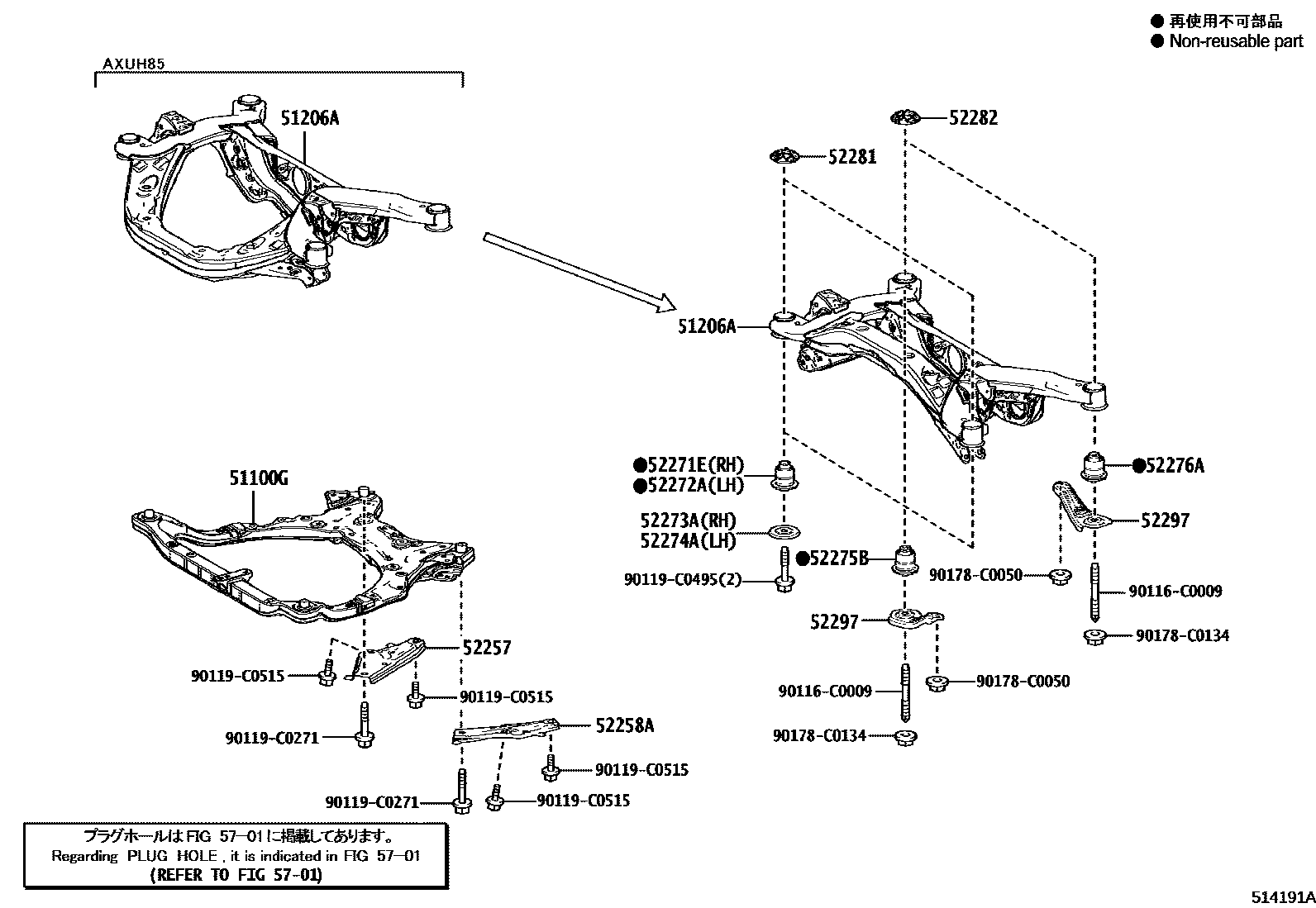

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER 0003 1UNDER COVER

51100GFRAME ASSY, FRONT

main51100-0R031iAXUH8#,MXUA8#202203-202307

sub51100-0R032

main51100-0R032iAXUH8#,MXUA8#202308

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0R090iMXUA85202203

main51206-0R100iAXUH85202203

main51206-0R130iAXUH80,MXUA80202203

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-0R060iAXUH8#,MXUA8#202203

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-0R060iAXUH8#,MXUA8#202203

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-0R030iAXUH8#,MXUA8#202203

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52271-0R030iAXUH8#,MXUA8#202203

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-06080iAXUH8#,MXUA8#202203

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-06080iAXUH8#,MXUA8#202203

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-0R030iAXUH8#,MXUA8#202203

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-0R030iAXUH8#,MXUA8#202203

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-0R030iAXUH8#,MXUA8#202203

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-0R030iAXUH8#,MXUA8#202203

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-0R060iAXUH8#,MXUA8#202203

5701

90116C0009

main90116-C0009

90119C0271

main90119-C0271

90119C0495

main90119-C0495

90119C0515

main90119-C0515

90178C0050

main90178-C0050

90178C0134

main90178-C0134

20 parts on this diagram · 3 diagrams in section
