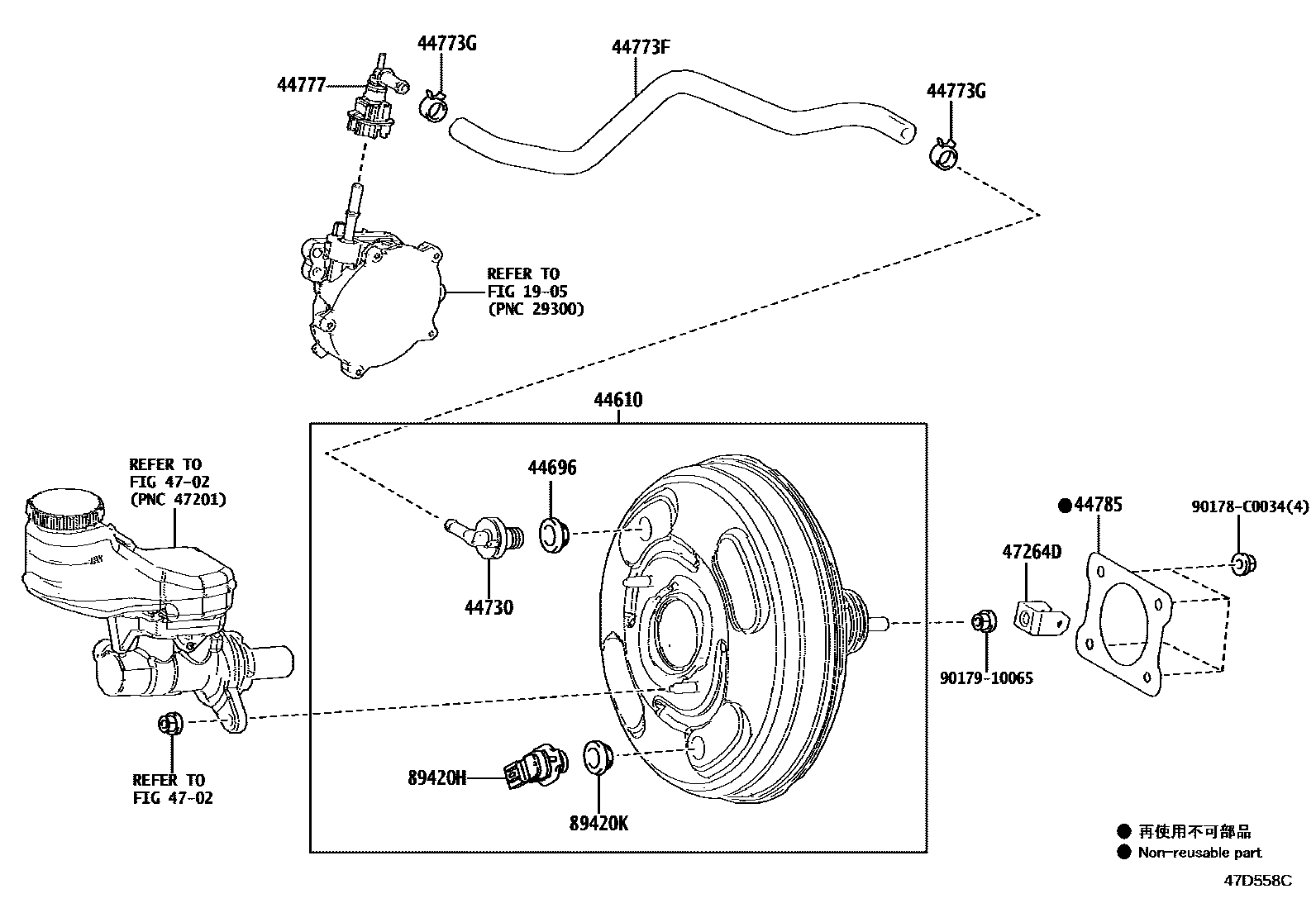

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-0E280iMXUA8#202203

44696GROMMET, CHECK VALVE

main90016-AT003iMXUA8#¥120202203

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iMXUA8#¥1,300202203

44773FHOSE, UNION TO CHECK VALVE

main44773-0R040iMXUA8#202203

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-C0034iMXUA8#202203

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-06020iMXUA8#202208

(L)

main44777-33010iMXUA8#¥520202203-202208

main44777-33010iMXUA8#¥520202208

(J)

44785GASKET, BRAKE BOOSTER

main44785-02050iMXUA8#202203

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0R030iMXUA8#202203

89420HSENSOR ASSY, VACUUM

main89421-71040iMXUA8#¥5,900202203

89420KGROMMET, VACUUM SENSOR

main90016-AT003iMXUA8#¥120202203

90178C0034

main90178-C0034

9017910065

main90179-10065¥90

14 parts on this diagram · 1 diagram in section
