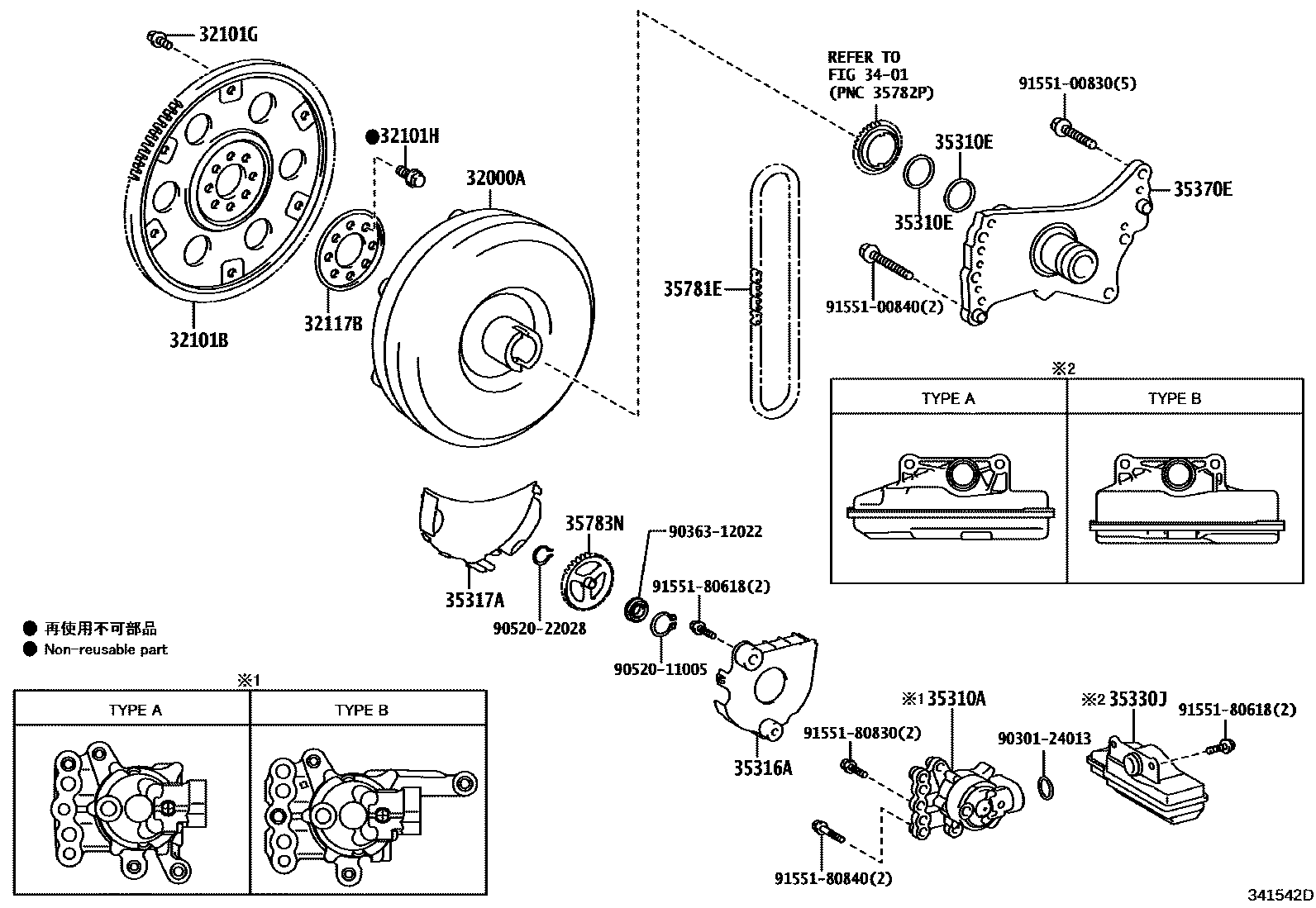

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-12520iMXUA8#¥74,000202203

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0R020iMXUA8#202203

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iMXUA8#¥80202203

*9-1.25PX12.4-7.3,BLACK

main90119-09025iMXUA8#¥80202203

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404iMXUA8#¥100202203

32117BSPACER, DRIVE PLATE, REAR

main32117-0R010iMXUA8#202203

3401

35310APUMP ASSY, FRONT OIL

main35310-12200iMXUA80¥16,000202203-202304

TYPE A:REFER ILLUST.

main35310-28050iMXUA80¥14,500202203-202304

TYPE B:REFER ILLUST.

main35310-42010iMXUA80202304

TYPE B:REFER ILLUST.

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12060iMXUA8#¥160202203

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12010iMXUA8#¥980202203

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12010iMXUA8#¥590202203

35330JSTRAINER ASSY, OIL

main35330-12080iMXUA80¥3,950202203-202304

TYPE A:REFER ILLUST.

main35330-28040iMXUA80¥3,580202203

TYPE B:REFER ILLUST.

35370ESHAFT ASSY, STATOR (CVT)

main35370-12120iMXUA8#¥14,900202203

35781ECHAIN, TRANSMISSION DRIVE

main35781-12010iMXUA8#¥5,100202203-202304

main35781-42010iMXUA8#¥1,420202304

35783NSPROCKET, DRIVEN

main35783-12060iMXUA8#¥1,310202203

9030124013

main90301-24013¥140

9036312022

main90363-12022¥640

9052011005

main90520-11005¥70

9052022028

main90520-22028¥90

9155100830

main91551-00830¥80

9155100840

main91551-00840¥80

9155180618

main91551-80618¥60

9155180830

main91551-80830¥80

9155180840

main91551-80840¥120

23 parts on this diagram · 1 diagram in section
