TELEPHONE & MAYDAY

8604

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-YY110

86719ABRACKET, TELEPHONE NO.1

main86719-0E160iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

86719BBRACKET, TELEPHONE NO.2

main86719-0E170iAXUH85..M;MXUA80..S202111-202408

86725BATTERY, MOBILEPHONE

main86725-F4010iAXUH85..M;MXUA80..S202111-202408

86741ATRANSCEIVER, TELEMATICS

main86741-06100iAXUH8#,MXUA80202111-202304

main86741-08020iMXUA80..G;AXUH85..G,S202304-202409

main86741-0R070iAXUH85..G,S;AXUH80,MXUA80..G,M,X202409

main86741-F4060iAXUH85..M202304-202409

86742ACOVER, TRANSCEIVER

main86742-0A010iMXUA80..G;AXUH85..G,S202304-202408

main86742-F4010iMXUA80..G;AXUH85..G,S202111-202409

sub86742-0A010

90119C0107

main90119-C0107

90153C0001

main90153-C0001

90153C0003

main90153-C0003

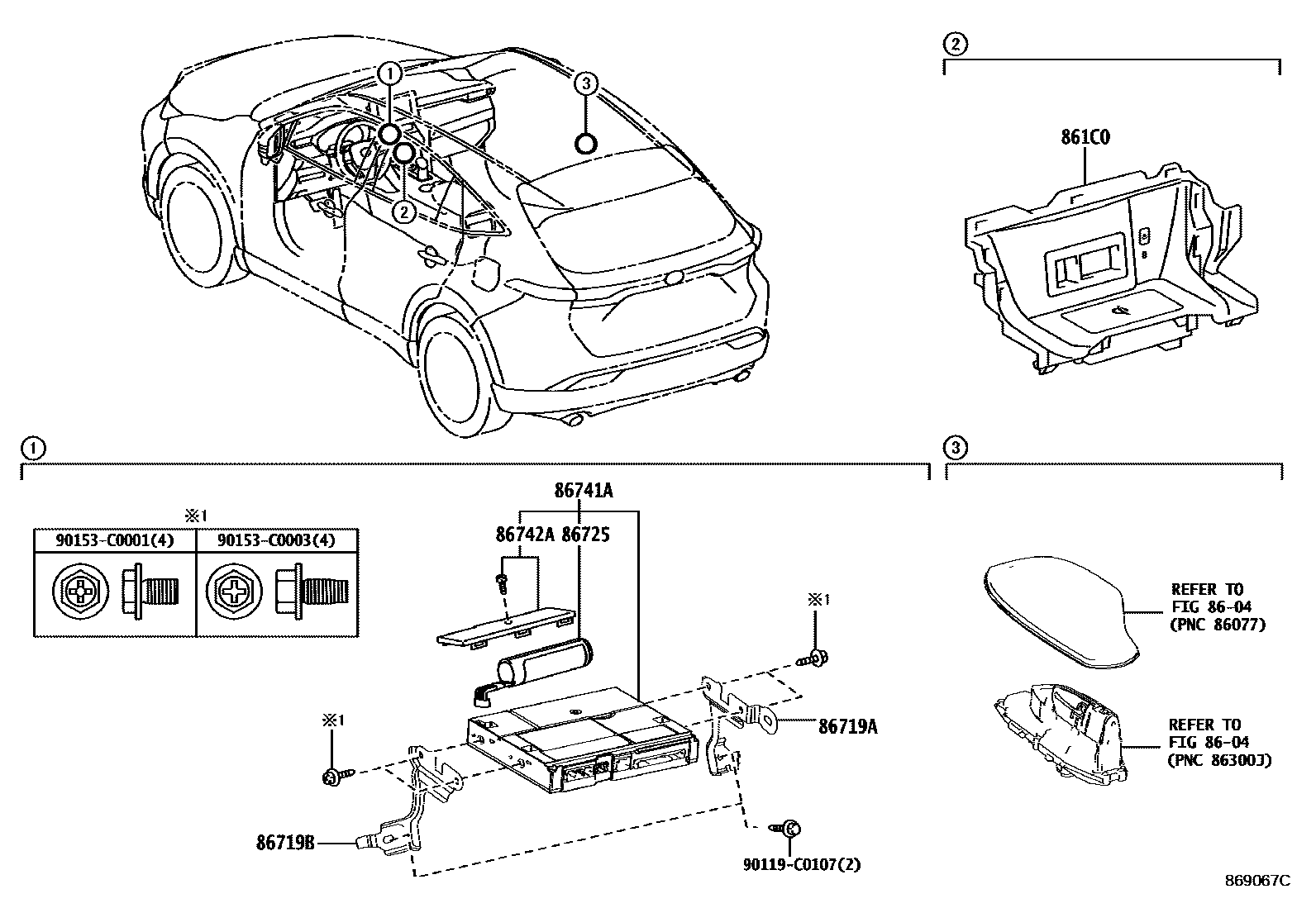

10 parts on this diagram · 1 diagram in section
