CAMERA & REAR MONITOR DISPLAY

8504

86790BCAMERA ASSY, TELEVISION, FR

main86790-0E280iMXUA80..S202111-202409

main86790-0E330iAXUH85..G,S;AXUH80,MXUA80..G,M202409

86790DCAMERA ASSY, TELEVISION, RR

main86790-0E260iMXUA80..G;AXUH85..G,S202111-202409

main86790-0E320iAXUH85..G,S;AXUH80,MXUA80..G,M202409

main86790-0E610iAXUH80,MXUA80..M202111-202409

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-0E250iMXUA80..G;AXUH85..G,S202111-202409

main86790-0E750iAXUH85..G,S;AXUH80,MXUA80..G,M202409

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-0E240iMXUA80..S202111-202409

main86790-0E340iAXUH85..G,S;AXUH80,MXUA80..G,M202409

86792CCOMPUTER, PARKING ASSIST

main86792-0E030iMXUA80..S202111-202409

main86792-0E190iAXUH85..G,S;AXUH80,MXUA80..G,M202409

867C0BCAMERA ASSY, INNER MIRROR, RR

main867C0-0E030iMXUA80..S202111-202408

9015960621

main90159-60621

90159C0022

main90159-C0022

9016750063

main90167-50063

90167C0019

main90167-C0019

90178C0011

main90178-C0011

9018906244

main90189-06244

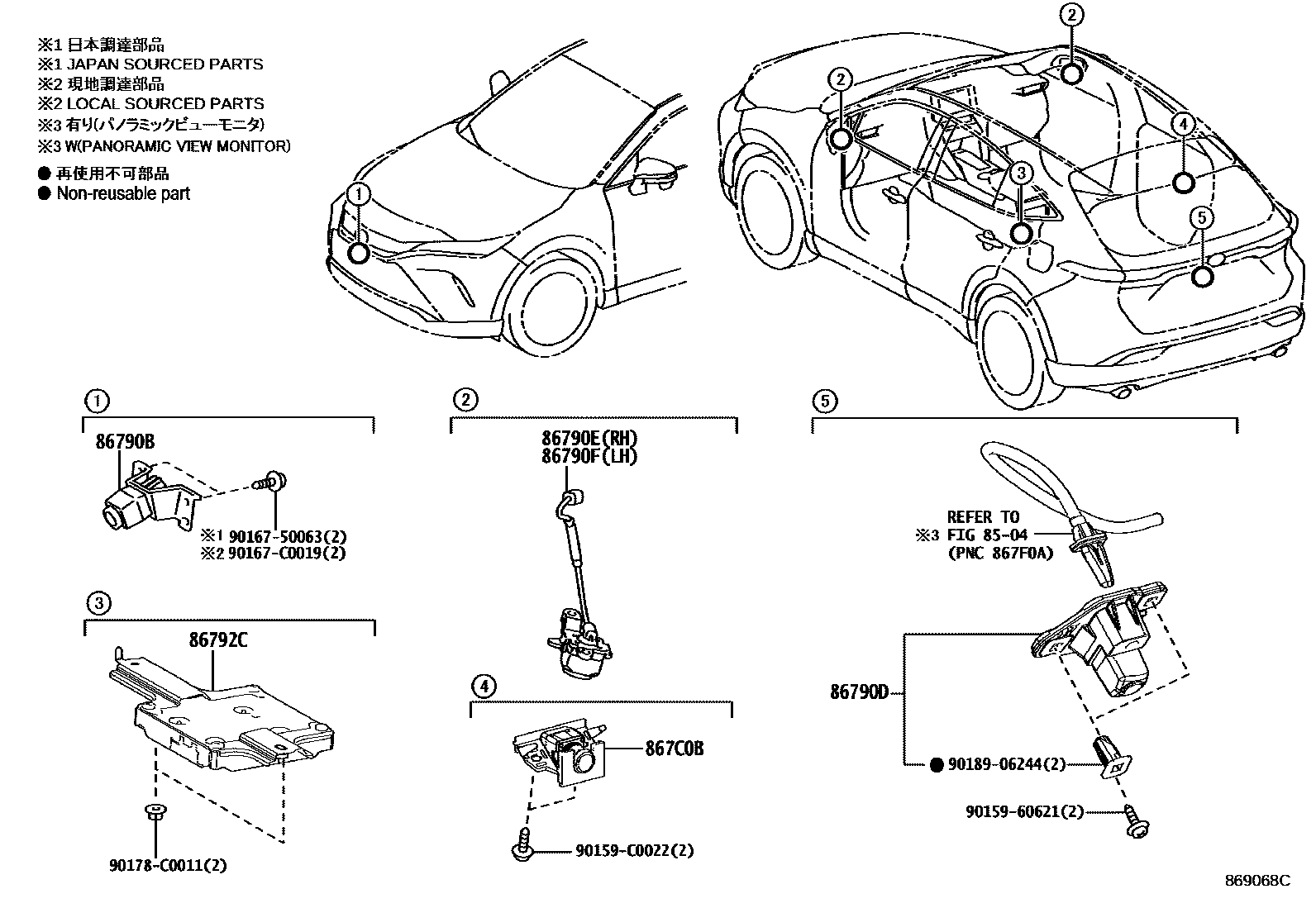

13 parts on this diagram · 1 diagram in section
