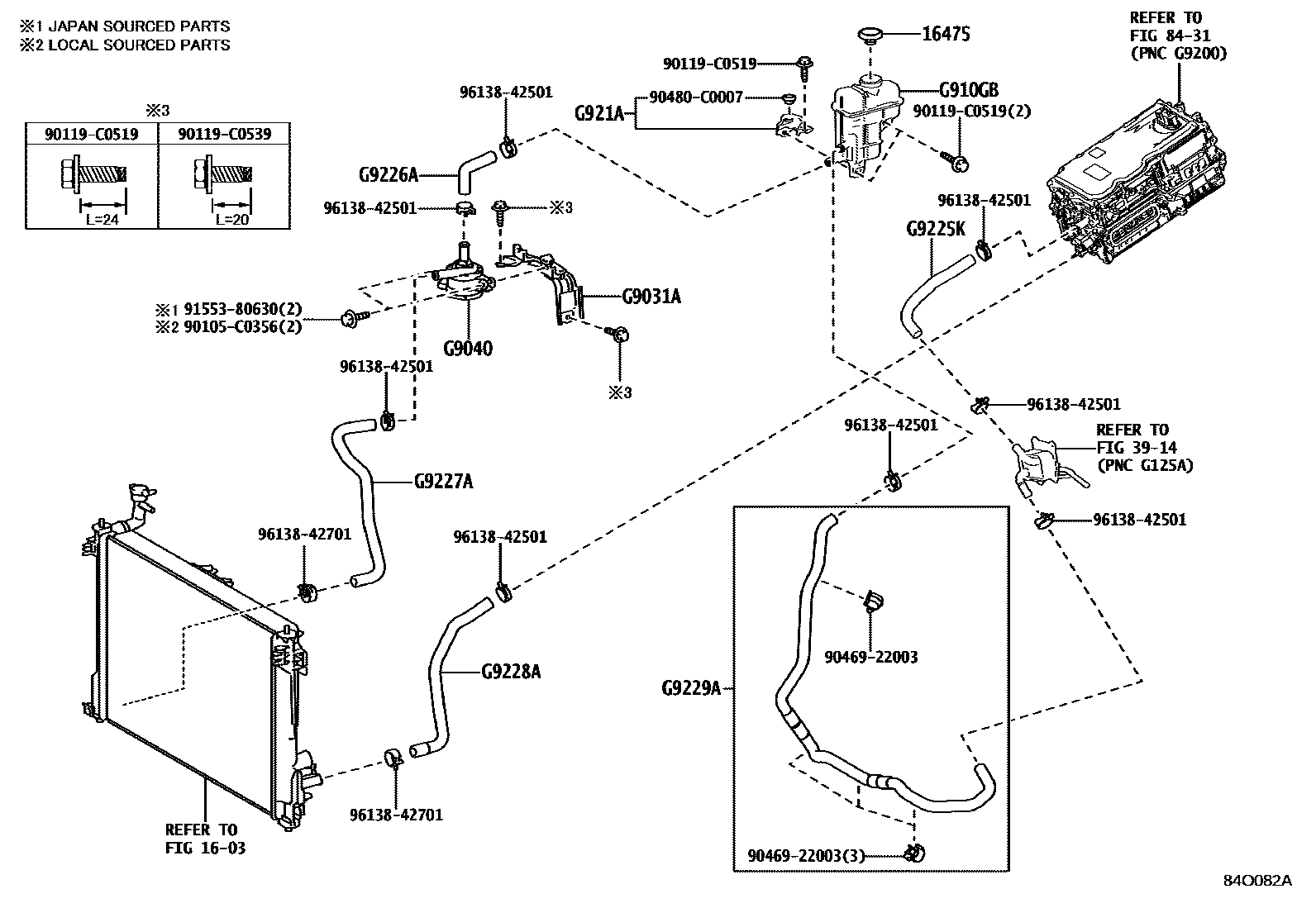

INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-0T081iA25FFXS..AXUH85..M202111-202408

LOCAL SOURCED PARTS

main16475-28140iA25FFXS..AXUH85..M¥1,200202111-202408

JAPAN SOURCED PARTS

3914

8431

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG91410E070iAXUH80;AXUH85..G,S202111-202408

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904008010iAXUH85..M202111-202409

LOCAL SOURCED PARTS

mainG904008010iAXUH80;AXUH85..G,S202409

mainG904048050iAXUH85..M202111-202409

JAPAN SOURCED PARTS

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G0R020iAXUH80;AXUH85..G,S202111-202408

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H20R020iAXUH85..M202111-202408

G9225KHOSE, INVERTER COOLING, NO.1

mainG92250R030iAXUH85..M202111-202408

G9226AHOSE, INVERTER COOLING, NO.2

mainG92260R050iAXUH85..M202111-202408

G9227AHOSE, INVERTER COOLING, NO.3

mainG92270E040iAXUH85..M202111-202408

G9228AHOSE, INVERTER COOLING, NO.4

mainG92280E040iAXUH85..M202111-202408

G9229AHOSE, INVERTER COOLING, NO.5

mainG92290E040iAXUH85..M202111-202408

90105C0356

main90105-C0356

90119C0519

main90119-C0519

90119C0539

main90119-C0539

9046922003

main90469-22003¥110

90480C0007

main90480-C0007

9155380630

main91553-80630¥60

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

21 parts on this diagram · 1 diagram in section
