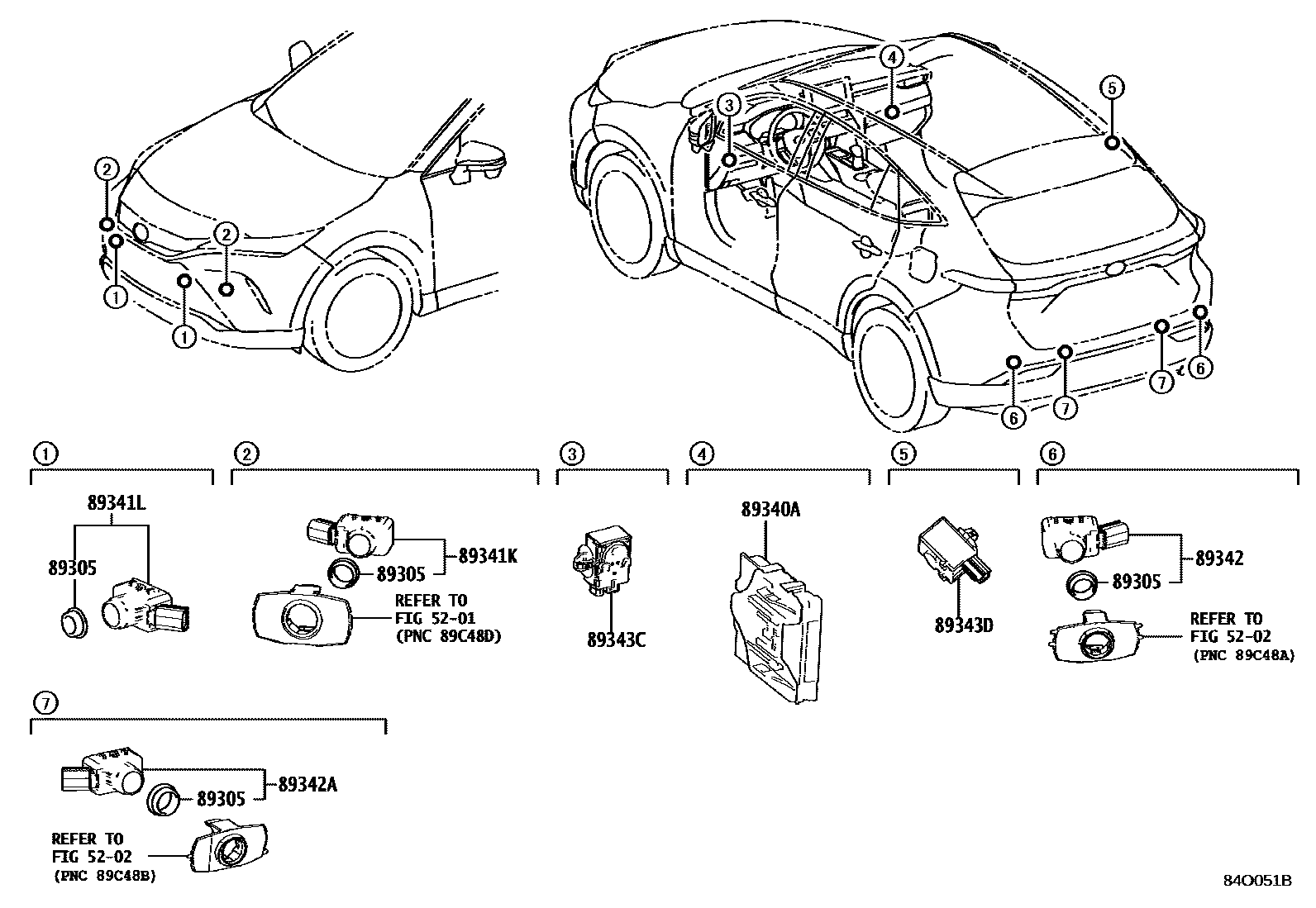

CLEARANCE & BACK SONAR

5201

5202

89305CUSHION SET, ULTRASONIC SENSOR

main89305-52010iAXUH85..G,S;AXUH80,MXUA80..G,M¥90202111-202408

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-0E120iAXUH8#,MXUA80..G,M,S202111-202204

*614

sub89340-0E230

main89340-0E230iAXUH85..M;MXUA80..S202205-202409

*614

main89340-0E231iAXUH85..G,S;AXUH80,MXUA80..G,M202409

*614

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-0R080-A0iAXUH8#,MXUA80..G,M,S202111-202207

PLATINUM WHITE PEARL MC.,089

sub89341-0R100

main89341-0R080-C0iAXUH8#,MXUA80..G,M,S202111-202207

BLACK MC.,209

sub89341-0R100

main89341-0R080-C1iAXUH8#,MXUA80..G,M,S202111-202207

DUMMY-MAT BLACK

sub89341-0R100

main89341-0R080-E0iAXUH8#,MXUA80..G,M,S202111-202207

AVANT-GARDE BRONZE ME.,4V8

sub89341-0R100

main89341-0R080-G1iAXUH8#,MXUA80..G,M,S202111-202207

OXIDE BRONZE ME.,6X1

sub89341-0R100

main89341-0R080-J1iAXUH8#,MXUA80..G,M,S202111-202207

DK. BLUE MC.,8X8

sub89341-0R100

main89341-0R100-A0iAXUH85..G,S;AXUH80,MXUA80..G,M202207-202408

PLATINUM WHITE PEARL MC.,089

main89341-0R100-C0iAXUH85..M;MXUA80..S202207-202408

DUMMY-MAT BLACK

main89341-0R100-C1iAXUH85..M;MXUA80..S202207-202408

BLACK MC.,209

main89341-0R100-E2iAXUH85..G,S;AXUH80,MXUA80..G,M202207-202408

AVANT-GARDE BRONZE ME.,4V8

main89341-0R100-G0iAXUH85..M;MXUA80..S202207-202408

OXIDE BRONZE ME.,6X1

main89341-0R100-J2iAXUH85..G,S;AXUH80,MXUA80..G,M202207-202408

DK. BLUE MC.,8X8

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-0R080-A0iAXUH8#,MXUA80..G,M,S202111-202207

PLATINUM WHITE PEARL MC.,089

sub89341-0R100

main89341-0R080-C0iAXUH8#,MXUA80..G,M,S202111-202207

BLACK MC.,209

sub89341-0R100

main89341-0R080-C1iAXUH8#,MXUA80..G,M,S202111-202207

DUMMY-MAT BLACK

sub89341-0R100

main89341-0R080-E0iAXUH8#,MXUA80..G,M,S202111-202207

AVANT-GARDE BRONZE ME.,4V8

sub89341-0R100

main89341-0R080-G1iAXUH8#,MXUA80..G,M,S202111-202207

OXIDE BRONZE ME.,6X1

sub89341-0R100

main89341-0R080-J1iAXUH8#,MXUA80..G,M,S202111-202207

DK. BLUE MC.,8X8

sub89341-0R100

main89341-0R100-A0iAXUH85..G,S;AXUH80,MXUA80..G,M202207-202408

PLATINUM WHITE PEARL MC.,089

main89341-0R100-C0iAXUH85..G,S;AXUH80,MXUA80..G,M202207-202408

DUMMY-MAT BLACK

main89341-0R100-C1iAXUH85..G,S;AXUH80,MXUA80..G,M202207-202408

BLACK MC.,209

main89341-0R100-E2iAXUH85..G,S;AXUH80,MXUA80..G,M202207-202408

AVANT-GARDE BRONZE ME.,4V8

main89341-0R100-G0iAXUH85..M;MXUA80..S202207-202408

OXIDE BRONZE ME.,6X1

main89341-0R100-J2iAXUH85..G,S;AXUH80,MXUA80..G,M202207-202408

DK. BLUE MC.,8X8

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-0R080-A0iAXUH8#,MXUA80..G,M,S202111-202207

PLATINUM WHITE PEARL MC.,089

sub89341-0R100

main89341-0R080-C0iAXUH8#,MXUA80..G,M,S202111-202207

BLACK MC.,209

sub89341-0R100

main89341-0R080-C1iAXUH8#,MXUA80..G,M,S202111-202207

DUMMY-MAT BLACK

sub89341-0R100

main89341-0R080-E0iAXUH8#,MXUA80..G,M,S202111-202207

AVANT-GARDE BRONZE ME.,4V8

sub89341-0R100

main89341-0R080-G1iAXUH8#,MXUA80..G,M,S202111-202207

OXIDE BRONZE ME.,6X1

sub89341-0R100

main89341-0R080-J1iAXUH8#,MXUA80..G,M,S202111-202207

DK. BLUE MC.,8X8

sub89341-0R100

main89341-0R100-A0iAXUH85..M;MXUA80..S202207-202408

PLATINUM WHITE PEARL MC.,089

main89341-0R100-C0iAXUH85..G,S;AXUH80,MXUA80..G,M202207-202408

DUMMY-MAT BLACK

main89341-0R100-C1iAXUH85..M;MXUA80..S202207-202408

BLACK MC.,209

main89341-0R100-E2iAXUH85..M;MXUA80..S202207-202408

AVANT-GARDE BRONZE ME.,4V8

main89341-0R100-G0iAXUH85..M;MXUA80..S202207-202408

OXIDE BRONZE ME.,6X1

main89341-0R100-J2iAXUH85..G,S;AXUH80,MXUA80..G,M202207-202408

DK. BLUE MC.,8X8

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-0R080-A0iAXUH8#,MXUA80..G,M,S202111-202207

PLATINUM WHITE PEARL MC.,089

sub89341-0R100

main89341-0R080-C0iAXUH8#,MXUA80..G,M,S202111-202207

BLACK MC.,209

sub89341-0R100

main89341-0R080-C1iAXUH8#,MXUA80..G,M,S202111-202207

DUMMY-MAT BLACK

sub89341-0R100

main89341-0R080-E0iAXUH8#,MXUA80..G,M,S202111-202207

AVANT-GARDE BRONZE ME.,4V8

sub89341-0R100

main89341-0R080-G1iAXUH8#,MXUA80..G,M,S202111-202207

OXIDE BRONZE ME.,6X1

sub89341-0R100

main89341-0R080-J1iAXUH8#,MXUA80..G,M,S202111-202207

DK. BLUE MC.,8X8

sub89341-0R100

main89341-0R100-A0iAXUH85..G,S;AXUH80,MXUA80..G,M202207-202408

PLATINUM WHITE PEARL MC.,089

main89341-0R100-C0iAXUH85..M;MXUA80..S202207-202408

DUMMY-MAT BLACK

main89341-0R100-C1iAXUH85..M;MXUA80..S202207-202408

BLACK MC.,209

main89341-0R100-E2iAXUH85..G,S;AXUH80,MXUA80..G,M202207-202408

AVANT-GARDE BRONZE ME.,4V8

main89341-0R100-G0iAXUH85..M;MXUA80..S202207-202408

OXIDE BRONZE ME.,6X1

main89341-0R100-J2iAXUH85..M;MXUA80..S202207-202408

DK. BLUE MC.,8X8

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-02010iAXUH85..M;MXUA80..S202111-202408

89343DBUZZER, CLEARANCE WARNING, NO.2

main89747-30040iAXUH85..M;MXUA80..S¥2,900202111-202408

10 parts on this diagram · 1 diagram in section
