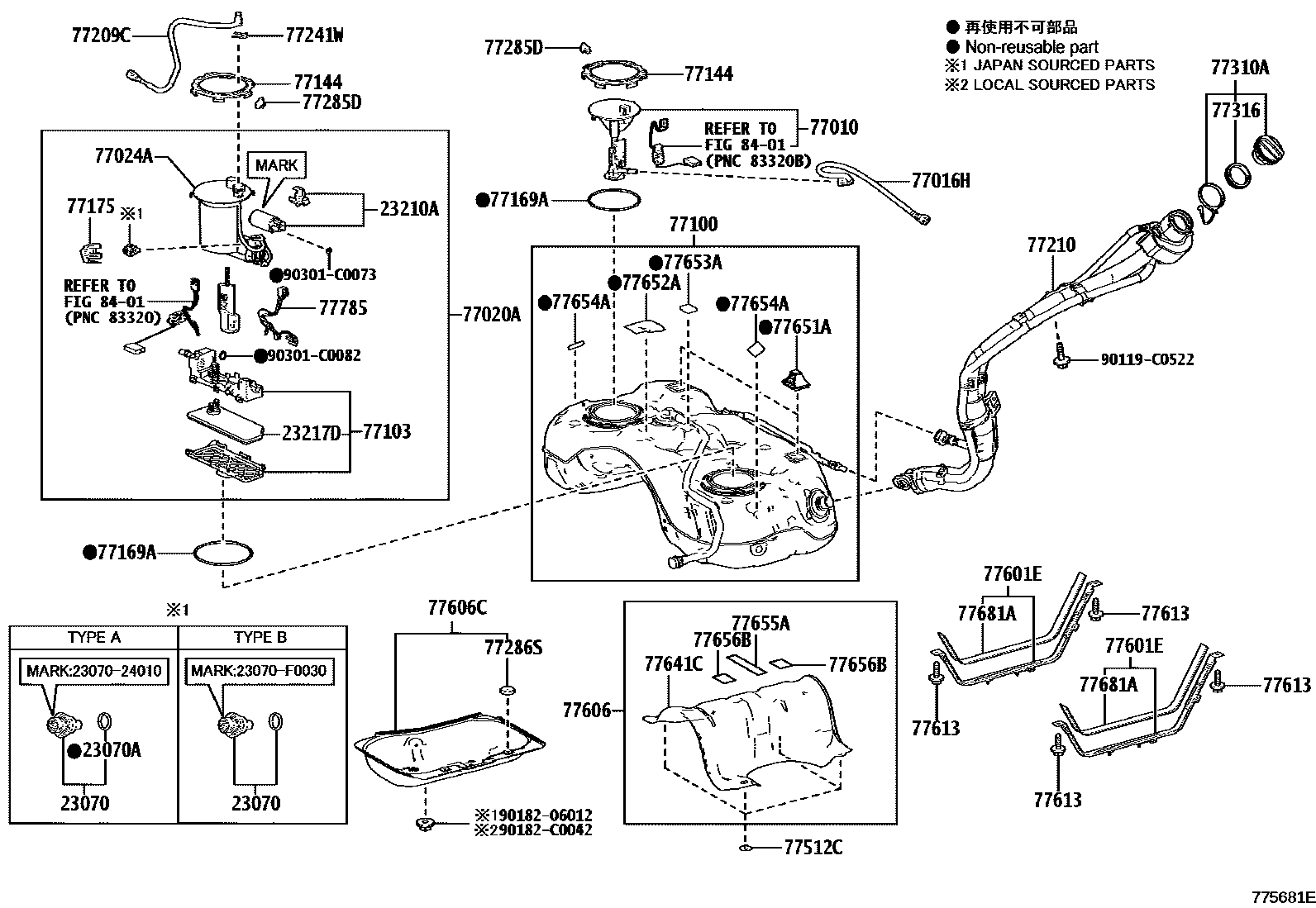

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1FUEL LID OPENER 0006 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-24010iA25FFXS..AXUH85..M;M20DFKS..MXUA80..S202111-202408

TYPE A:REFER ILLUST.

main23070-F0030iA25FFXS..AXUH85..M;M20DFKS..MXUA80..S202111-202408

TYPE B:REFER ILLUST.

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iA25FFXS..AXUH85..M;M20DFKS..MXUA80..S202111-202408

23210APUMP ASSY, FUEL W/MOTOR & BRACKET

main23210-F0010iA25FFXS..AXUH85..M;M20DFKS..MXUA80..S202111-202408

MARK 23221-F0040

main23210-F2010iA25FFXS..AXUH85..M;M20DFKS..MXUA80..S202111-202408

MARK 23221-24010

23217DFILTER, FUEL PUMP

main23217-24020iA25FFXS..AXUH85..M;M20DFKS..MXUA80..S202111-202408

77010TUBE ASSY, FUEL TANK VENT

main77010-0R020iMXUA80..S202111-202408

77016HTUBE SUB-ASSY, FUEL RETURN VENT

main77016-0R030iMXUA80..S202111-202408

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0R070iMXUA80..S202111-202408

main77020-0R091iAXUH85..M202111-202408

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0R060iAXUH80;AXUH85..G,S202111-202408

main77024-0R080iMXUA80..S202111-202408

77100TANK ASSY, FUEL

main77001-0R120iMXUA80..S202111-202408

main77001-0R140iAXUH85..M202111-202408

77103SUB-TANK SUB-ASSY, FUEL

main77103-0A010iAXUH85..M202111-202408

main77103-0R070iMXUA80..G,M,X202111-202408

77144RETAINER, FUEL PUMP GAUGE

main77144-F4020iAXUH80;AXUH85..G,S202111-202408

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0R050iAXUH85..M202111-202408

77175SUPPORT, FUEL SUCTION, NO.2

main77175-F4020iAXUH85..M;MXUA80..S202111-202408

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0R080iMXUA80..S202111-202408

main77209-0R100iAXUH85..M202111-202408

77210PIPE ASSY, FUEL TANK FILLER

main77210-0E270iMXUA80..S202111-202408

main77210-0E280iAXUH80;AXUH85..G,S202111-202408

77241WCLIP, TUBE JOINT

main77241-02020iMXUA80..S202111-202408

(L)

main77241-33011iAXUH85..M202111-202408

(J)

77285DCLAMP, FUEL TUBE, NO.1

main77285-0R130iAXUH85..M;MXUA80..S202111-202408

main77285-0R310iMXUA80..G,M,X202111-202408

(L)

main77285-30350iMXUA80..G,M,X202111-202408

(J)

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iMXUA80..S202111-202408

(J)

main77286-F4040iMXUA80..S202111-202408

(L)

77310ACAP ASSY, FUEL TANK

main77300-06110iAXUH85..M202111-202408

main77300-0R010iMXUA80..S202111-202408

77316GASKET, FUEL TANK CAP

main77316-0F020iMXUA80..S202111-202408

main77316-75020iAXUH85..M202111-202408

77512CBRACKET, FUEL TANK

main77512-07010iMXUA80..S202111-202408

(L)

main77512-35140iMXUA80..G,M,X202111-202408

(J)

77601EBAND SUB-ASSY, FUEL TANK

main77601-0R060iMXUA80..S202111-202408

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0R040iMXUA80..S202111-202408

main77606-0R120iAXUH85..M202111-202408

(L)

main77606-42050iAXUH80;AXUH85..G,S202111-202408

(J)

77606CPROTECTOR, FUEL TANK, NO.2

main77606-0R060iMXUA80..G,M,X202111-202408

77613BOLT, FUEL TANK BAND SET

main90119-10A05iAXUH85..M202111-202408

77641CPROTECTOR ASSY, FUEL TANK

main77641-0R100iMXUA80..S202111-202408

77651ACUSHION, FUEL TANK, NO.1

main77651-07010iMXUA80..S202111-202408

77652ACUSHION, FUEL TANK, NO.2

main77652-12100iMXUA80..G,M,X202111-202408

main77652-42040iAXUH85..M202111-202408

77653ACUSHION, FUEL TANK, NO.3

main77652-07020iMXUA80..S202111-202408

77654ACUSHION, FUEL TANK, NO.4

main77652-47010iMXUA80..S202111-202408

77655ACUSHION, FUEL TANK, NO.5

main77651-35060iMXUA80..G,M,X202111-202408

77656BCUSHION, FUEL TANK, NO.6

main77652-12100iMXUA80..S202111-202408

main77656-07010iAXUH85..M202111-202408

77681ASEAT, FUEL TANK BAND

main77681-0R110iAXUH85..M202111-202408

main77682-0R040iMXUA80..G,M,X202111-202408

77785HARNESS, FUEL PUMP

main77785-06190iAXUH85..M;MXUA80..S202111-202408

8401

90119C0522

main90119-C0522

9018206012

main90182-06012

90182C0042

main90182-C0042

90301C0073

main90301-C0073

90301C0082

main90301-C0082

40 parts on this diagram · 6 diagrams in section
