REAR MOULDING

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-0E340-A0iAXUH8#,MXUA80202111-202311

PLATINUM WHITE PEARL MC.,089

sub76801-0E341

sub76825-0E100

main76801-0E340-C1iAXUH8#,MXUA80202111-202311

BLACK MC.,209

sub76801-0E341

sub76825-0E100

main76801-0E340-E0iAXUH8#,MXUA80202111-202311

AVANT-GARDE BRONZE ME.,4V8

sub76801-0E341

sub76825-0E100

main76801-0E340-G0iAXUH8#,MXUA80202111-202311

OXIDE BRONZE ME.,6X1

sub76801-0E341

sub76825-0E100

main76801-0E340-J0iAXUH8#,MXUA80202111-202311

DK. BLUE MC.,8X8

sub76801-0E341

sub76825-0E100

main76801-0E341iMXUA80..S202311-202408

main76801-0E341-A0iAXUH85..M202311-202408

PLATINUM WHITE PEARL MC.,089

main76801-0E341-C1iAXUH85..M202311-202408

BLACK MC.,209

main76801-0E341-E0iAXUH85..G,S;AXUH80,MXUA80..G,M,X202311-202408

AVANT-GARDE BRONZE ME.,4V8

main76801-0E341-G0iAXUH85..M202311-202408

OXIDE BRONZE ME.,6X1

main76801-0E341-J0iAXUH85..G,S;AXUH80,MXUA80..G,M,X202311-202408

DK. BLUE MC.,8X8

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-C0033iAXUH85..M;MXUA80..S202111-202408

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-0E040iAXUH85..M;MXUA80..S202111-202408

76822APROTECTOR, BACK DOOR GARNISH MOULDING, LWR

main76822-0E060iAXUH85..M;MXUA80..S202111-202408

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76823-0E010iAXUH85..M;MXUA80..S202111-202408

76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH

main76823-0E010iAXUH85..M;MXUA80..S202111-202408

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-0E100iAXUH85..M;MXUA80..S202111-202408

76825DPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1

main76823-0E030iAXUH85..M;MXUA80..S202111-202408

76825MPROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH, NO.3

main76825-0E100iAXUH8#,MXUA80202111-202311

9010506344

main90105-06344

90167C0020

main90167-C0020

9017906362

main90179-06362

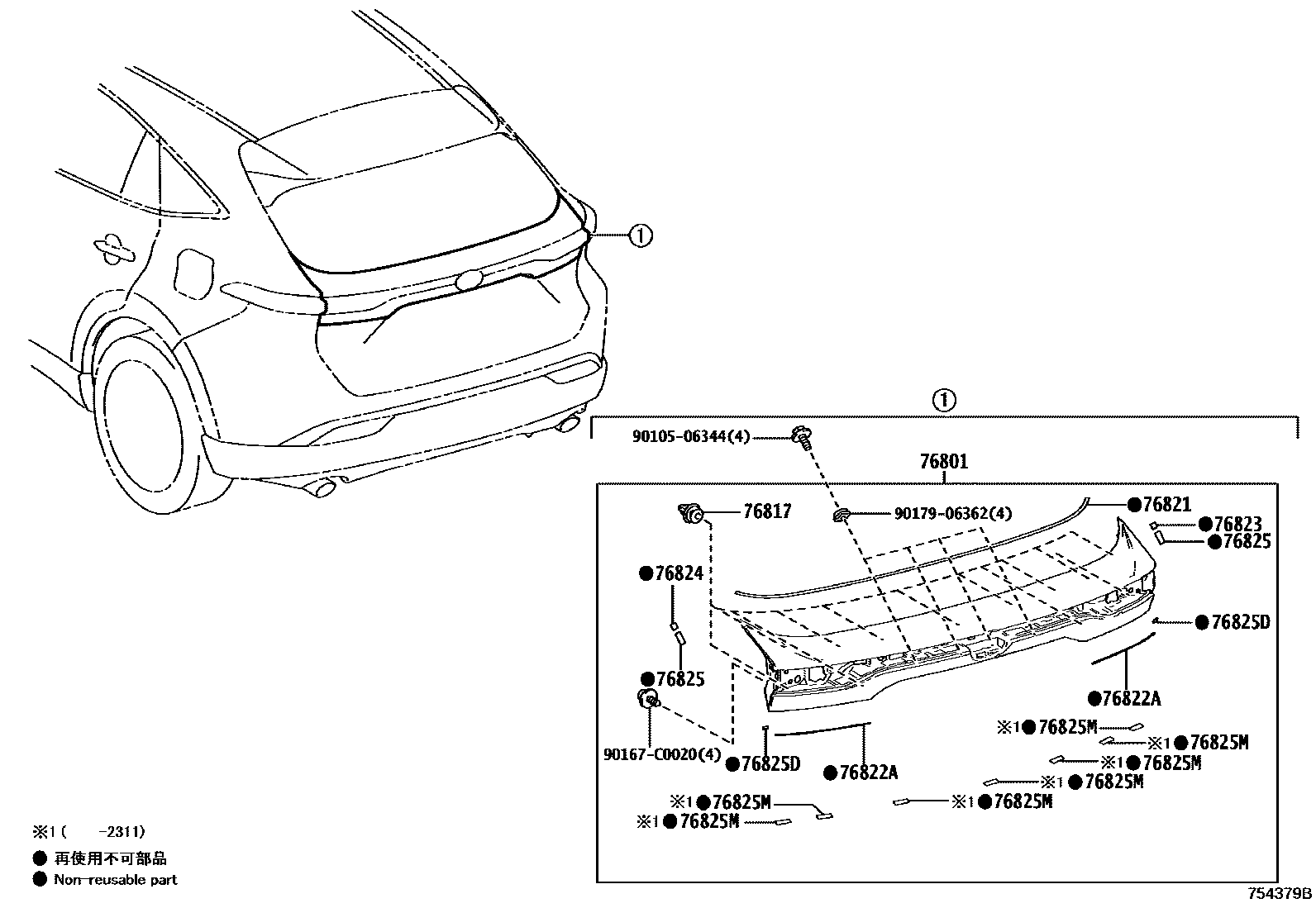

12 parts on this diagram · 1 diagram in section
