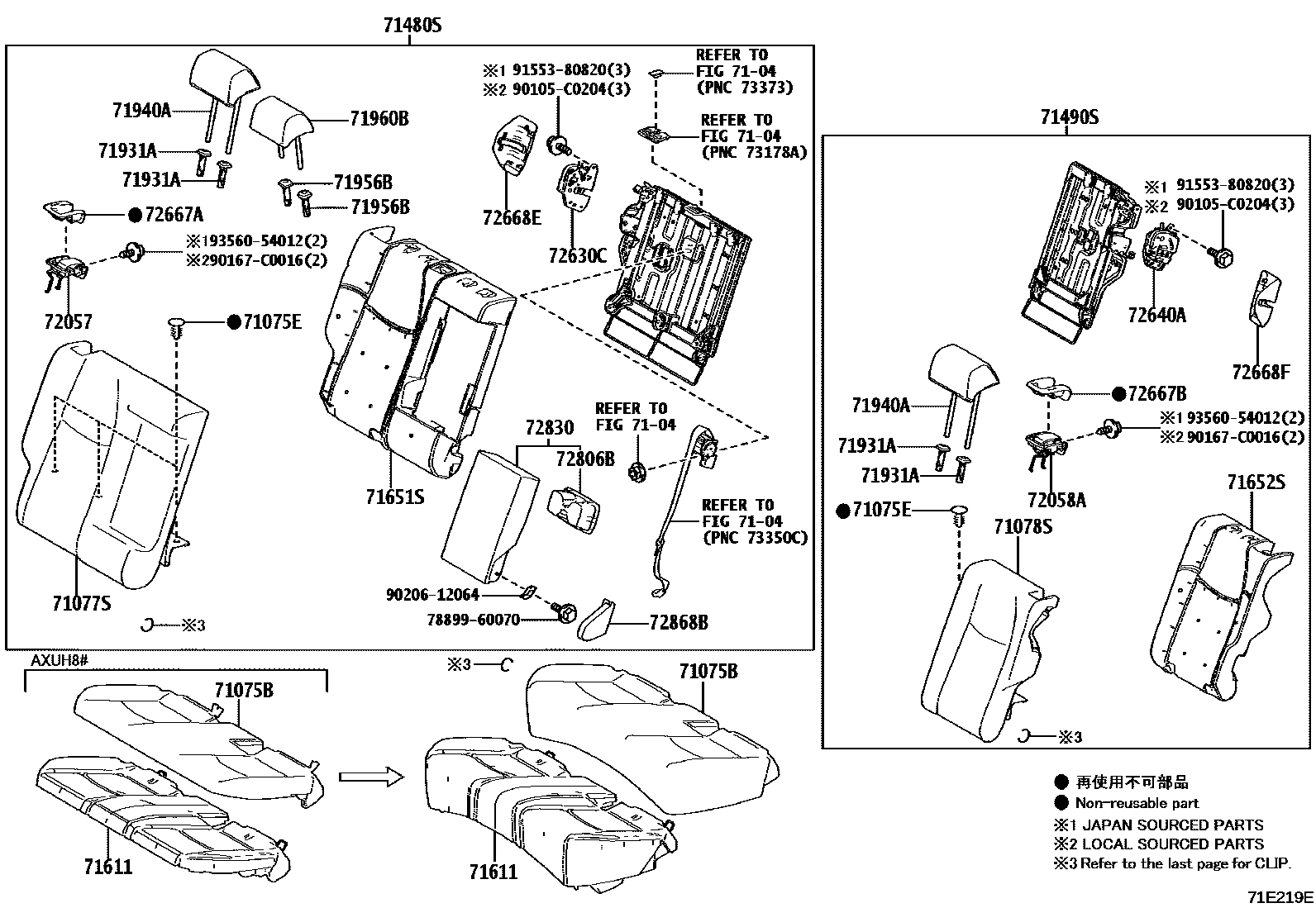

REAR SEAT & SEAT TRACK

0001 1REAR SEAT 0002 1FITTING PARTS 0003 1CLIP

7104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-0E680-C2iMXUA80..X202111

BLACK,TRIM2#

main71075-0E690-B6iMXUA80..G202111-202409

MD.GRAY,TRIM1#

main71075-0E690-B7iMXUA80..S202111-202408

DK.GRAY,TRIM4#

main71075-0E690-C3iMXUA80..S202111-202408

BLACK,TRIM2#

main71075-0E700-B6iAXUH85..G,S202111-202409

MD.GRAY,TRIM1#

main71075-0E700-B7iAXUH85..G,S202111

DK.GRAY,TRIM4#

main71075-0E700-C3iAXUH85..G,S202111

BLACK,TRIM2#

main71075-YK230-B1iMXUA80..M202409

MD.GRAY,TRIM4#

main71075-YK230-B1iMXUA80..M202409

SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM4#

main71075-YK230-C0iMXUA80..M202409

BLACK,TRIM2#

main71075-YK230-C0iMXUA80..M202409

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

71075ECLIP(FOR REAR SEAT)

main90467-07049-10iAXUH80202111-202408

DK.GRAY,TRIM4#

sub90467-07049

main90467-07049-10iAXUH80202409

SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM4#

sub90467-07049

main90467-07049-11iMXUA80..S202111-202409

MD.GRAY,TRIM1#

sub90467-07049

main90467-07049-17iMXUA80..M202409

DK.GRAY,TRIM4#

sub90467-07049

main90467-07049-27iMXUA80..M202409

BLACK,TRIM2#

sub90467-07049

main90467-07049-28iMXUA80..X202111

BLACK,TRIM2#

sub90467-07049

main90467-07049-29iMXUA80..S202111-202408

BLACK,TRIM2#

sub90467-07049

main90467-07049-29iAXUH80202409

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

sub90467-07049

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0E820-C2iMXUA80..X202111

BLACK,TRIM2#

main71077-0E830-B0iMXUA80..G;AXUH85..G,S202111-202409

MD.GRAY,TRIM1#

main71077-0E830-B1iMXUA80..M202111-202408

DK.GRAY,TRIM4#

main71077-0E830-B1iMXUA80..M202409

SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM4#

main71077-0E830-C5iMXUA80..M202409

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71077-0E830-C5iMXUA80..G;AXUH85..G,S202111-202408

BLACK,TRIM2#

main71077-YK220-B1iMXUA80..M202409

MD.GRAY,TRIM4#

main71077-YK220-B1iMXUA80..M202409

SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM4#

main71077-YK220-C0iMXUA80..M202409

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71077-YK220-C0iMXUA80..M202409

BLACK,TRIM2#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-0E730-C2iMXUA80..X202111

BLACK,TRIM2#

main71078-0E740-B0iMXUA80..S202111-202409

MD.GRAY,TRIM1#

main71078-0E740-B1iAXUH80202111-202408

DK.GRAY,TRIM4#

main71078-0E740-B1iAXUH80202409

SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM4#

main71078-0E740-C5iAXUH80202111-202408

BLACK,TRIM2#

main71078-0E740-C5iAXUH80202409

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71078-YK140-B1iMXUA80..M202409

SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM4#

main71078-YK140-B1iMXUA80..M202409

MD.GRAY,TRIM4#

main71078-YK140-C0iMXUA80..M202409

BLACK,TRIM2#

main71078-YK140-C0iMXUA80..M202409

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-0E030iMXUA80..X202111-202304

main71480-0E031-C0iMXUA80..X202304

BLACK,TRIM2#

main71480-0E040iAXUH8#,MXUA80..G,M,S202111-202304

LUXURY PACKAGE

main71480-0E041-C0iAXUH85..G,S;AXUH80,MXUA80..G,M202304-202409

BLACK,TRIM2#

main71480-0E041-C0iAXUH80;MXUA80..G;AXUH85..G,S202409

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71480-0E041-E0iAXUH85..G,S;AXUH80,MXUA80..G,M202304-202409

BROWN,TRIM4#

main71480-0E041-E0iMXUA80..M202409

SEAT COVER MATERIAL-LEATHER,BROWN,TRIM4#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-0E030-C3iMXUA80..X202111

BLACK,TRIM2#

main71490-0E040-B4iMXUA80..S202111-202409

MD.GRAY,TRIM1#

main71490-0E040-C4iMXUA80..S202111-202408

BLACK,TRIM2#

main71490-0E040-C4iAXUH80202409

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71490-0E040-E3iAXUH80202409

SEAT COVER MATERIAL-LEATHER,SATIN BROWN,TRIM4#

main71490-0E040-E3iAXUH80,MXUA80..M202111-202408

SATIN BROWN,TRIM4#

main71490-YK120-C1iMXUA80..M202409

BLACK,TRIM2#

main71490-YK120-C1iMXUA80..M202409

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71490-YK120-E1iMXUA80..M202409

SEAT COVER MATERIAL-LEATHER,BROWN,TRIM4#

main71490-YK120-E1iMXUA80..M202409

BROWN,TRIM4#

71611PAD, REAR SEAT CUSHION

main71611-0E180iMXUA80..M202111-202408

main71611-0E190iAXUH85..G,S202111

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-0E250iMXUA80..S202111-202408

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-0E220iMXUA80..S202111-202408

71931ASUPPORT, REAR SEAT HEADREST

main71930-0R030-C1iMXUA80..M202409

W(LOCK),SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2#,4#

main71930-0R030-C1iMXUA80..S202111-202408

W(LOCK),BLACK,TRIM1#,2#,4#

main71930-0R030-C1iMXUA80..X202111

W(LOCK),BLACK,TRIM2#

main71930-0R030-C1iAXUH80202409

W(LOCK),BLACK,TRIM2#,4#

main71931-0R030-C1iMXUA80..X202111

W/O(LOCK),BLACK,TRIM2#

main71931-0R030-C1iMXUA80..M202409

W/O(LOCK),BLACK,TRIM2#,4#

main71931-0R030-C1iMXUA80..M202409

W/O(LOCK),SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2#,4#

main71931-0R030-C1iMXUA80..G;AXUH85..G,S202111-202408

W/O(LOCK),BLACK,TRIM1#,2#,4#

71940AHEADREST ASSY, REAR SEAT

main71940-0E460-C2iMXUA80..X202111

BLACK,TRIM2#

main71940-0E470-B5iMXUA80..G;AXUH85..G,S202111-202409

MD.GRAY,TRIM1#

main71940-0E470-B6iAXUH80202409

SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM4#

main71940-0E470-B6iMXUA80..S202111-202408

DK.GRAY,TRIM4#

main71940-0E470-C3iMXUA80..M202409

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71940-0E470-C3iMXUA80..S202111-202408

BLACK,TRIM2#

main71940-YK160-B1iMXUA80..M202409

SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM4#

main71940-YK160-B1iMXUA80..M202409

MD.GRAY,TRIM4#

main71940-YK160-C0iMXUA80..M202409

BLACK,TRIM2#

main71940-YK160-C0iMXUA80..M202409

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

71956BSUPPORT, REAR SEAT HEADREST

main71930-0R030-C1iMXUA80..M202409

W(LOCK),BLACK,TRIM2#,4#

main71930-0R030-C1iMXUA80..S202111-202408

W(LOCK),BLACK,TRIM1#,2#,4#

main71930-0R030-C1iMXUA80..X202111

W(LOCK),BLACK,TRIM2#

main71930-0R030-C1iAXUH80202409

W(LOCK),SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2#,4#

main71931-0R030-C1iMXUA80..M202409

W/O(LOCK),BLACK,TRIM2#,4#

main71931-0R030-C1iMXUA80..G;AXUH85..G,S202111

W/O(LOCK),BLACK,TRIM2#

main71931-0R030-C1iMXUA80..X202111-202408

W/O(LOCK),BLACK,TRIM1#,2#,4#

main71931-0R030-C1iAXUH80202409

W/O(LOCK),SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2#,4#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-0E360-C2iMXUA80..X202111

BLACK,TRIM2#

main71960-0E370-B5iMXUA80..G;AXUH85..G,S202111-202409

MD.GRAY,TRIM1#

main71960-0E370-B6iMXUA80..S202111-202408

DK.GRAY,TRIM4#

main71960-0E370-B6iAXUH80202409

SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM4#

main71960-0E370-C3iAXUH80202111-202408

BLACK,TRIM2#

main71960-0E370-C3iAXUH80202409

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71960-YK060-B1iMXUA80..M202409

MD.GRAY,TRIM4#

main71960-YK060-B1iMXUA80..M202409

SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM4#

main71960-YK060-C0iMXUA80..M202409

BLACK,TRIM2#

main71960-YK060-C0iMXUA80..M202409

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

main72057-0R040-C0iAXUH80202409

BLACK,TRIM2#,4#

main72057-0R040-C0iMXUA80..S202111-202408

BLACK,TRIM1#,2#,4#

main72057-0R040-C0iMXUA80..X202111

BLACK,TRIM2#

72058ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

main72058-0R040-C0iMXUA80..X202111

BLACK,TRIM2#

main72058-0R040-C0iMXUA80..S202111-202408

BLACK,TRIM1#,2#,4#

main72058-0R040-C0iAXUH80202409

BLACK,TRIM2#,4#

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-0R021iMXUA80..S202111-202408

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-0R021iMXUA80..S202111-202408

72667ABEZEL, REAR SEATBACK LOCK, UPPER RH

main72667-0R090-C0iMXUA80..X202111-202408

BLACK,TRIM1#,2#,4#,(L)

main72667-0R090-C0iMXUA80..X202111

BLACK,TRIM2#,(L)

main72667-0R090-C0iAXUH80202409

BLACK,TRIM2#,4#,(L)

main72667-42010-C0iMXUA80..G;AXUH85..G,S202111-202408

BLACK,TRIM1#,2#,4#,(J)

main72667-42010-C0iAXUH80202409

BLACK,TRIM2#,4#,(J)

main72667-42010-C0iMXUA80..X202111

BLACK,TRIM2#,(J)

72667BBEZEL, REAR SEATBACK LOCK, UPPER LH

main72667-0R100-C0iMXUA80..X202111-202408

BLACK,TRIM1#,2#,4#,(L)

main72667-0R100-C0iMXUA80..X202111

BLACK,TRIM2#,(L)

main72667-0R100-C0iAXUH80202409

BLACK,TRIM2#,4#,(L)

main72667-42020-C0iMXUA80..G;AXUH85..G,S202111

BLACK,TRIM2#,(J)

main72667-42020-C0iMXUA80..X202111-202408

BLACK,TRIM1#,2#,4#,(J)

main72667-42020-C0iAXUH80202409

BLACK,TRIM2#,4#,(J)

72668EBEZEL, REAR SEATBACK LOCK, LOWER RH

main72668-0R050-C0iMXUA80..S202111-202408

BLACK,TRIM1#,2#,4#

main72668-0R050-C0iMXUA80..X202111

BLACK,TRIM2#

main72668-0R050-C0iAXUH80202409

BLACK,TRIM2#,4#

72668FBEZEL, REAR SEATBACK LOCK, LOWER LH

main72668-0R060-C0iMXUA80..S202111-202408

BLACK,TRIM1#,2#,4#

main72668-0R060-C0iMXUA80..X202111

BLACK,TRIM2#

main72668-0R060-C0iAXUH80202409

BLACK,TRIM2#,4#

72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-0R060-C0iMXUA80..X202111-202408

BLACK,TRIM1#,2#,4#

main72806-0R060-C0iMXUA80..X202111

BLACK,TRIM2#

main72806-0R060-C0iAXUH80202409

BLACK,TRIM2#,4#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-0E440-C2iMXUA80..X202111

BLACK,TRIM2#

main72830-0E450-B6iMXUA80..M202409

SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM4#

main72830-0E450-B6iMXUA80..M202111-202408

DK.GRAY,TRIM4#

main72830-0E450-B7iMXUA80..S202111-202409

MD.GRAY,TRIM1#

main72830-0E450-C3iAXUH80202111-202408

BLACK,TRIM2#

main72830-0E450-C3iAXUH80202409

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main72830-YK070-B0iMXUA80..M202409

DK.GRAY,TRIM4#

main72830-YK070-B0iMXUA80..M202409

SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM4#

main72830-YK070-C0iMXUA80..M202409

BLACK,TRIM2#

main72830-YK070-C0iMXUA80..M202409

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

72868BCOVER, CENTER ARMREST HINGE

main72868-0R060-C0iAXUH80202111-202408

BLACK,TRIM1#,2#,4#

main72868-0R060-C0iMXUA80..X202111

BLACK,TRIM2#

main72868-0R060-C0iMXUA80..M202409

BLACK,TRIM2#,4#

7889960070BOLT, FRONT SEAT

main78899-60070

90105C0204

main90105-C0204

90167C0016

main90167-C0016

9020612064

main90206-12064

9155380820

main91553-80820

9356054012

main93560-54012

31 parts on this diagram · 3 diagrams in section
