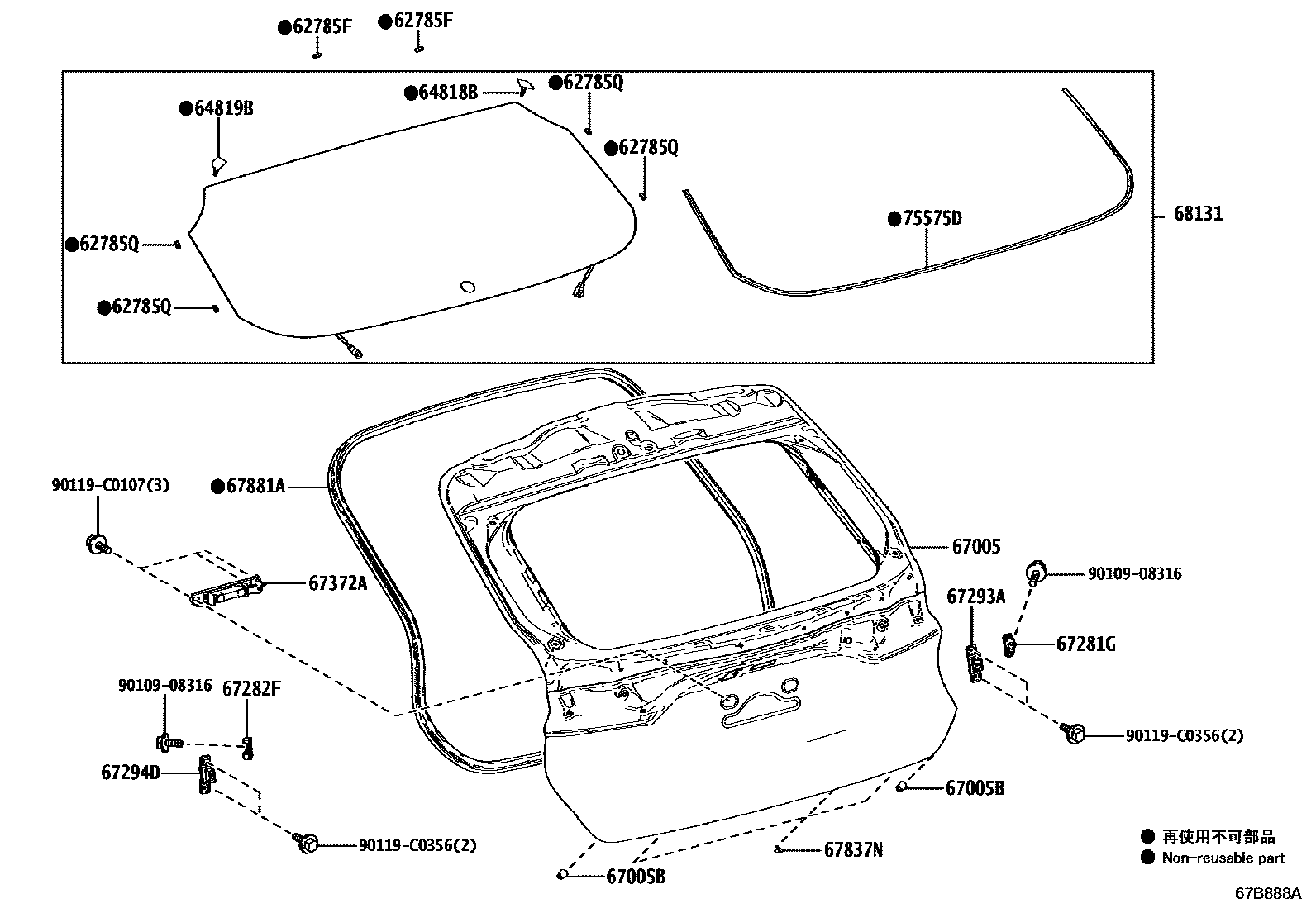

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1DOOR TRIM

62785FSPACER, BACK DOOR GLASS

main62785-0R020iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

62785QSPACER, QUARTER WINDOW GLASS, NO.2

main62786-10010iAXUH85..M;MXUA80..S¥190202111-202408

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-0E080iAXUH85..M;MXUA80..S202111-202408

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-0E040iAXUH85..M;MXUA80..S202111-202408

67005PANEL SUB-ASSY, BACK DOOR

main67005-0E570iMXUA80..S202111-202408

main67005-0E580iAXUH85..G;AXUH80,MXUA80..G,M,X202111-202408

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iAXUH85..M;MXUA80..S¥100202111-202408

67281GSTOPPER, BACK DOOR, LOWER RH

main67281-0E090iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

67282FSTOPPER, BACK DOOR, LWR LH

main67282-0E080iAXUH85..M;MXUA80..S202111-202408

67293ACUSHION, BACK DOOR STOPPER

main67293-0E100iAXUH85..M;MXUA80..S202111-202408

67294DCUSHION, BACK DOOR STOPPER, LH

main67294-0E070iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

67372AWEIGHT, BACK DOOR

main67372-0E040iAXUH85..M;MXUA80..S202111-202408

67837NSEAL, BACK DOOR DUST PROOF

main67837-0R070iAXUH85..M;MXUA80..S202111-202408

67881AWEATHERSTRIP, BACK DOOR

main67881-0E110iAXUH85..M;MXUA80..S202111-202408

68131GLASS, BACK DOOR

main68105-0E150iAXUH85..S202409

main68105-0E210iAXUH85,MXUA80..G202111-202409

main68105-0E220iMXUA80..S202111-202409

main68105-0E260iAXUH80,MXUA80..M,X202111-202408

75575DMOULDING, BACK WINDOW, LOWER

main75575-0E040iAXUH85..M;MXUA80..S202111-202408

9010908316

main90109-08316¥80

90119C0107

main90119-C0107

90119C0356

main90119-C0356

18 parts on this diagram · 3 diagrams in section
