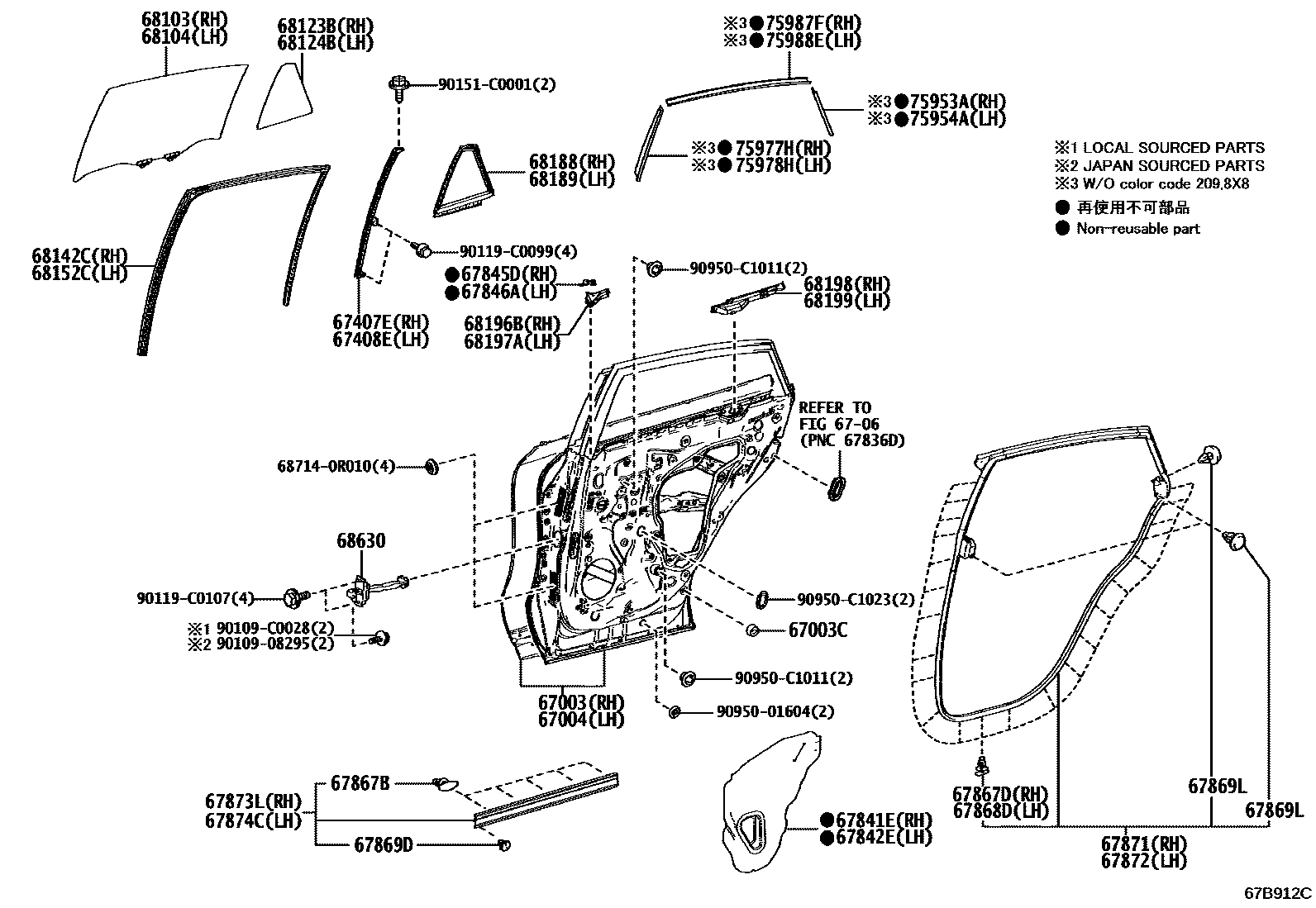

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
6706
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67845DSEAL, REAR DOOR FRONT OUTSIDE, RH
67846ASEAL, REAR DOOR FRONT OUTSIDE, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
LH
RH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
WHITE
RED
PURPLE
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
WHITE
RED
ORENGE
67869DCLIP, DOOR WEATHERSTRIP
67869LCLIP, REAR DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67873LWEATHERSTRIP, REAR DOOR, NO.5 RH
67874CWEATHERSTRIP, REAR DOOR, NO.5 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68196BSEAL, REAR DOOR BELT, FRONT RH
68197ASEAL, REAR DOOR BELT, FRONT LH
68198SEAL, REAR DOOR BELT, REAR RH
68199SEAL, REAR DOOR BELT, REAR LH
68630CHECK ASSY, REAR DOOR
75953ATAPE, BLACK OUT, INNER REAR RH
0 OR 1PIECE,REF.ILL.
75954ATAPE, BLACK OUT, INNER REAR LH
0 OR 1PIECE,REF.ILL.
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
0 OR 1PIECE,REF.ILL.
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
0 OR 1PIECE,REF.ILL.
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
0 OR 1PIECE,REF.ILL.
75988ESTRIPE, REAR DOOR, OUTSIDE LH
0 OR 1PIECE,REF.ILL.
687140R010
main68714-0R010
9010908295
main90109-08295
90109C0028
main90109-C0028
90119C0099
main90119-C0099
90119C0107
main90119-C0107
90151C0001
main90151-C0001
9095001604
main90950-01604
90950C1011
main90950-C1011
90950C1023
main90950-C1023
47 parts on this diagram · 2 diagrams in section
