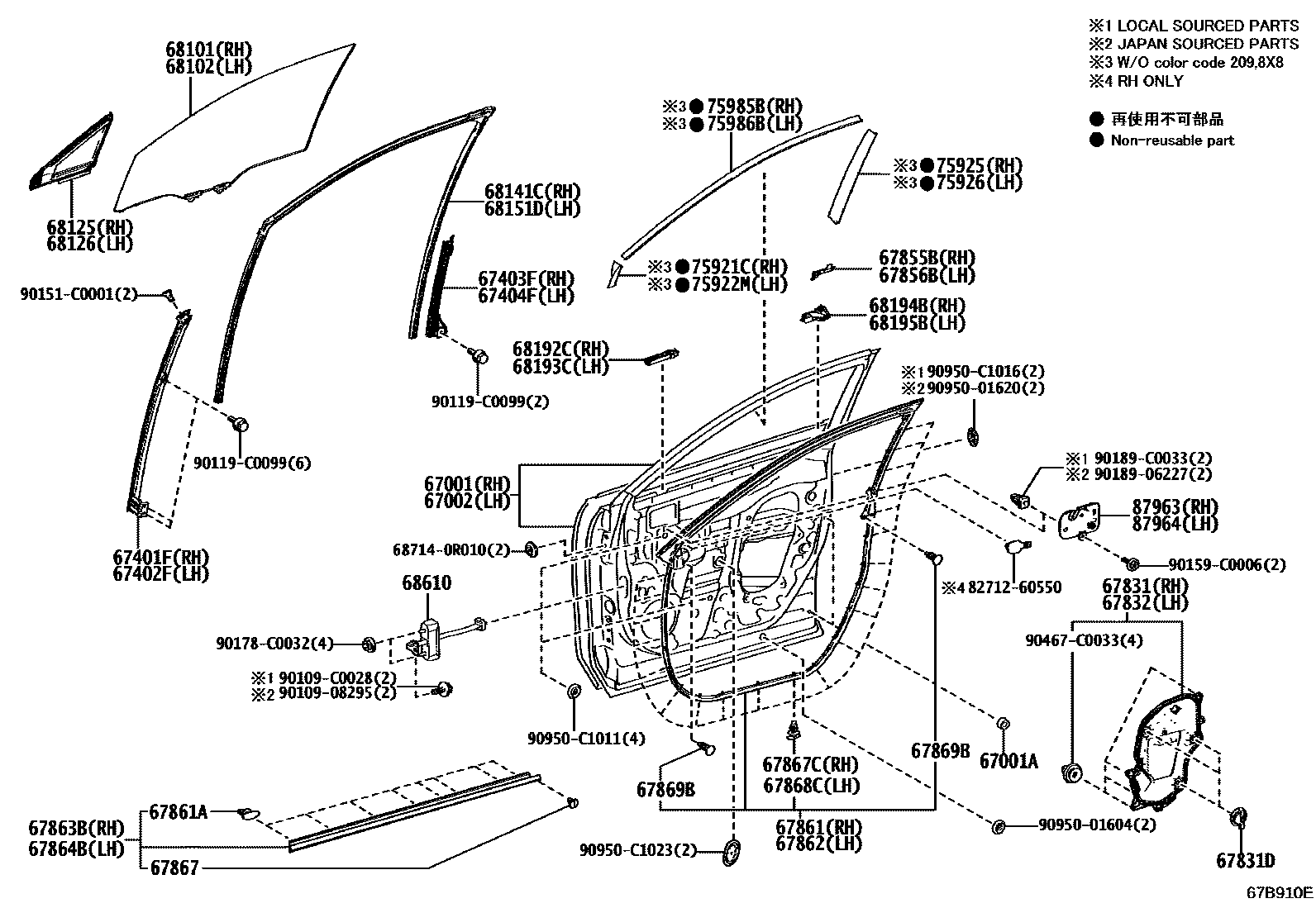

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0E230iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

67001ACUSHION, FRONT DOOR PANEL

main90541-09137iAXUH85..M;MXUA80..S202111-202408

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0E190iAXUH85..M;MXUA80..S202111-202408

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-0E050iAXUH85..M;MXUA80..S202111-202408

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-0E050iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0R110iAXUH85..M;MXUA80..S202111-202408

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0R110iAXUH85..M;MXUA80..S202111-202408

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0E120iAXUH85..M;MXUA80..S202111-202408

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main67869-F4020iAXUH85..M;MXUA80..S202111-202408

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0E120iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-0R020iAXUH85..M;MXUA80..S202111-202408

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-0R020iAXUH85..M;MXUA80..S202111-202408

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0E120iAXUH85..M;MXUA80..S202111-202408

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-0C010iAXUH85..M;MXUA80..S202111-202408

LH

main67867-12170iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

RH

sub67867-12150

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0E120iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-0E090iAXUH85..M;MXUA80..S202111-202408

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-0E060iAXUH85..M;MXUA80..S202111-202408

67867CLIP, DOOR WEATHERSTRIP

main67869-26050iAXUH85..M;MXUA80..S202111-202408

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-0D070iAXUH85..M;MXUA80..S202111-202408

WHITE

main67867-12150iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

PURPLE

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-0D070iAXUH85..M;MXUA80..S202111-202408

WHITE

main67867-12150iAXUH85..M;MXUA80..S202111-202408

ORENGE

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-26050iAXUH85..M;MXUA80..S202111-202408

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0E160iAXUH85..M202111-202408

main68101-0E180iAXUH85..S202111-202408

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0E160iAXUH85..M202111-202408

main68102-0E180iMXUA80..S202111-202408

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-0E020iAXUH85..M;MXUA80..S202111-202408

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-0E020iAXUH85..M;MXUA80..S202111-202408

68141CRUN, FRONT DOOR GLASS, RH

main68141-0E110iAXUH8#,MXUA80202111-202201

sub68141-0E111

main68141-0E111iAXUH85..M;MXUA80..S202202-202408

68151DRUN, FRONT DOOR GLASS, LH

main68151-0E110iAXUH8#,MXUA80202111-202201

sub68151-0E111

main68151-0E111iAXUH85..M;MXUA80..S202202-202408

68192CSEAL, FRONT DOOR BELT, FRONT RH

main68192-0E010iAXUH85..M;MXUA80..S202111-202408

68193CSEAL, FRONT DOOR BELT, FRONT LH

main68193-0E010iAXUH85..M;MXUA80..S202111-202408

68194BSEAL, FRONT DOOR BELT, REAR RH

main68194-0E010iAXUH85..M;MXUA80..S202111-202408

68195BSEAL, FRONT DOOR BELT, REAR LH

main68195-0E010iAXUH85..M;MXUA80..S202111-202408

68610CHECK ASSY, FRONT DOOR

main68610-0E140iAXUH85..M;MXUA80..S202111-202408

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0E060iAXUH85..M;MXUA80..S202304-202408

0 OR 1PIECE,REF.ILL.

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0E060iAXUH85..M;MXUA80..S202304-202408

0 OR 1PIECE,REF.ILL.

75925TAPE, BLACK OUT, NO.3 RH

main75965-0E020iAXUH85..M;MXUA80..S202304-202408

0 OR 1PIECE,REF.ILL.

75926TAPE, BLACK OUT, NO.3 LH

main75966-0E020iAXUH85..M;MXUA80..S202304-202408

0 OR 1PIECE,REF.ILL.

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-0E030iAXUH85..M;MXUA80..S202304-202408

0 OR 1PIECE,REF.ILL.

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-0E030iAXUH85..M;MXUA80..S202304-202408

0 OR 1PIECE,REF.ILL.

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-0E080iAXUH85..M;MXUA80..S202111-202408

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-0E080iAXUH85..M;MXUA80..S202111-202408

687140R010

main68714-0R010

8271260550CLAMP, WIRING HARNESS

main82712-60550

9010908295

main90109-08295

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90151C0001

main90151-C0001

90159C0006

main90159-C0006

90178C0032

main90178-C0032

9018906227

main90189-06227

90189C0033

main90189-C0033

90467C0033

main90467-C0033

9095001604

main90950-01604

9095001620

main90950-01620

90950C1011

main90950-C1011

90950C1016

main90950-C1016

90950C1023

main90950-C1023

56 parts on this diagram · 2 diagrams in section
