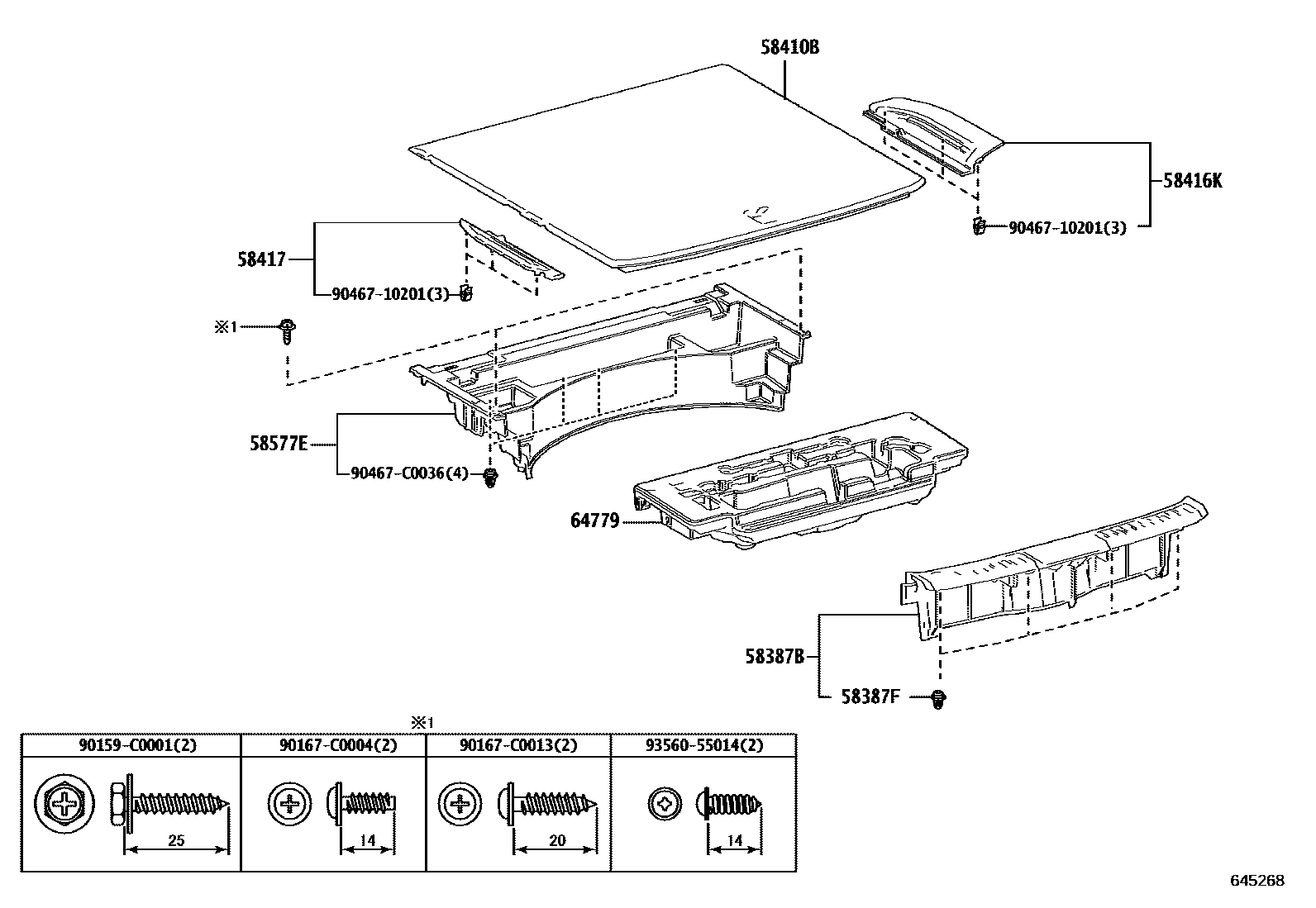

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58387BPLATE, REAR FLOOR FINISH

main58387-0E120-C0iAXUH85..M;MXUA80..S202111-202408

BLACK,TRIM1#,2#,4#

main58387-0E120-C0iMXUA80..X202111

BLACK,TRIM1#,2#

58387FCLIP, REAR FLOOR FINISH PLATE

main90467-C0036iAXUH85..M;MXUA80..S202111-202408

58410BBOARD ASSY, DECK

main58410-0E120-C1iAXUH85..M;MXUA80..S202111-202408

BLACK,TRIM1#,2#,4#

main58410-0E120-C1iMXUA80..X202111

BLACK,TRIM2#

58416KBOARD, REAR FLOOR, NO.2

main58416-0E030-C0iAXUH85..M;MXUA80..S202111-202408

BLACK,TRIM1#,2#,4#

main58416-0E030-C0iMXUA80..X202111

BLACK,TRIM1#,2#

58417BOARD, REAR FLOOR, NO.3

main58417-0E060-C0iAXUH85..M;MXUA80..S202111-202408

BLACK,TRIM1#,2#,4#

main58417-0E060-C0iMXUA80..X202111

BLACK,TRIM1#,2#

58577EPLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1

main58577-0E010iAXUH85..M;MXUA80..S202111-202408

64779TRAY, SPARE WHEEL COVER

main64779-0E010iAXUH85..M;MXUA80..S202111-202408

90159C0001

main90159-C0001

90167C0004

main90167-C0004

90167C0013

main90167-C0013

9046710201

main90467-10201

90467C0036

main90467-C0036

9356055014

main93560-55014

13 parts on this diagram · 2 diagrams in section
